Product Details
1. This 50m3 cement tanker trailer has 3 Chinese famous brand axles and 12 tires with unique patterns. No matter how bad the road conditions are, it can maintain stability for a long time.
2. There is an outlet at the bottom of the tank car, so as long as the workers turn on the diesel engine and air compressor, the cement will be discharged from the tank car quickly.
3. Thanks to its excellent sealing performance, this tanker will not cause material leakage during transportation.
4. This tanker is customizable. You only need to specify the specific requirements.
| Item | 50m3 cement tanker trailer |
| Tare Weight | About 9.5T |

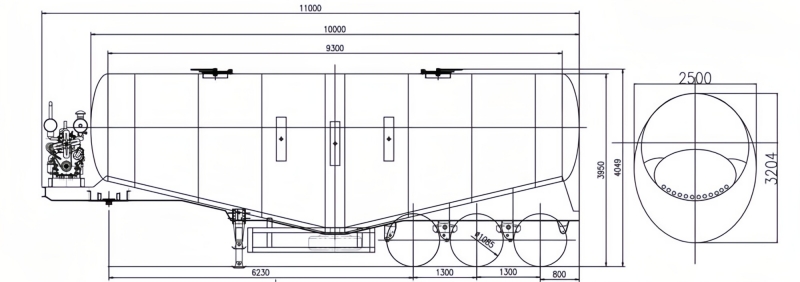

| Dimension | 11000mm*2500mm*3850mm |
| Loading Capacity (m3) | 50m3, about 60Tons |

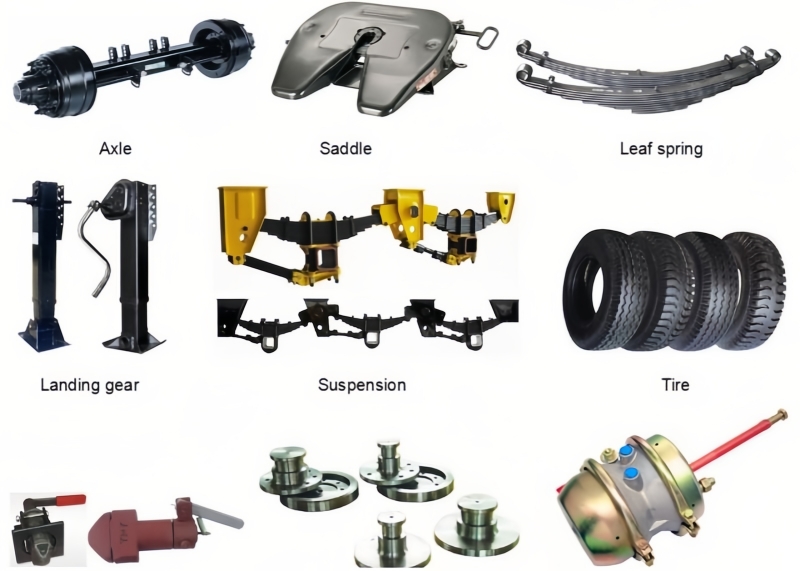

| Axle | 3 axles, FUWA brand 13t |
| Rim | 9.00-22.5 (special for export market) 13pcs |
| Tire | 12R22.5 Triangle brand 13pieces(including 1 spare) |
| Suspension | Mechanical American Type |
| Spring leaf | 90(W)mm*16(Thick)mm*10 Layers |
| King pin | brand JOST optional,90# |
| Support leg | JOST brand optional, two speed |
| Material of tanker | Carbon steel, Q235B |

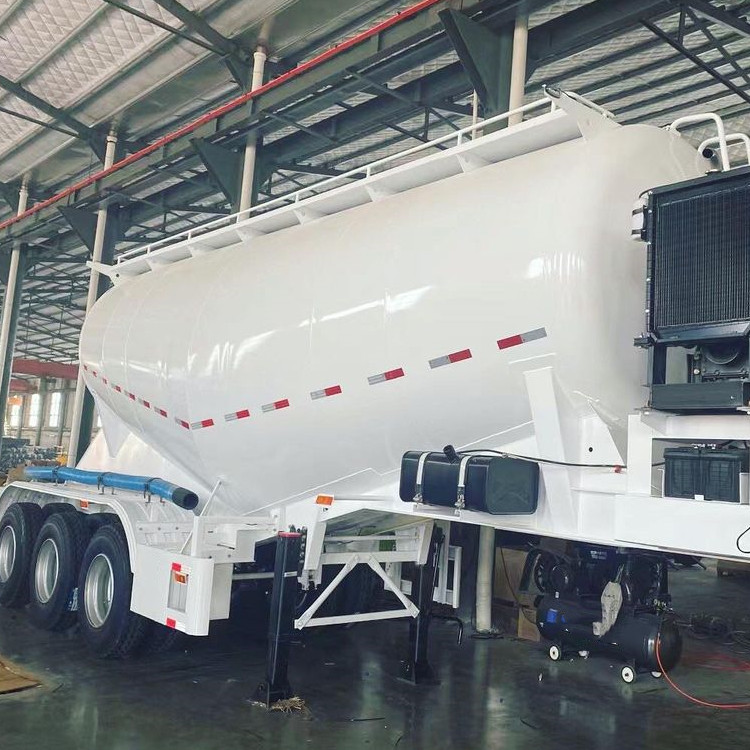

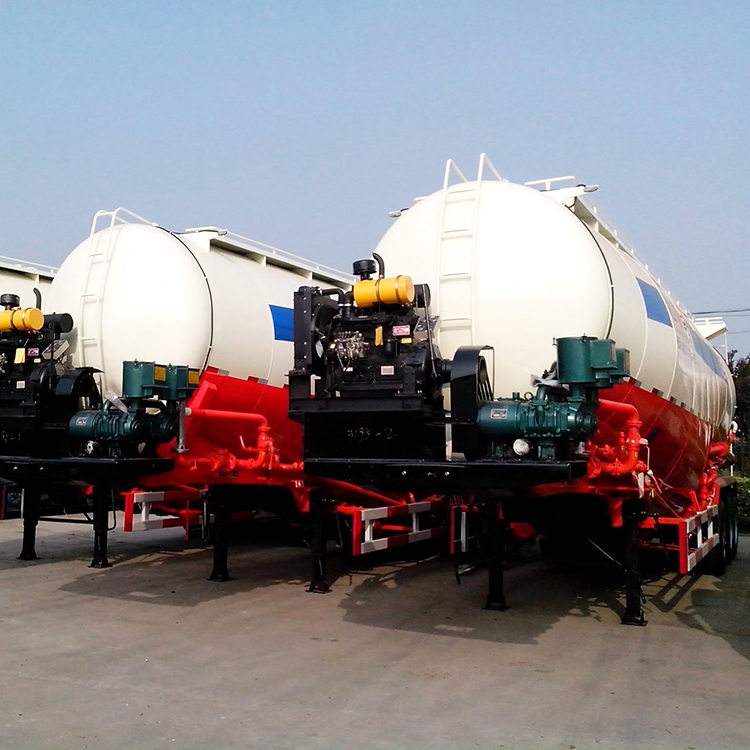

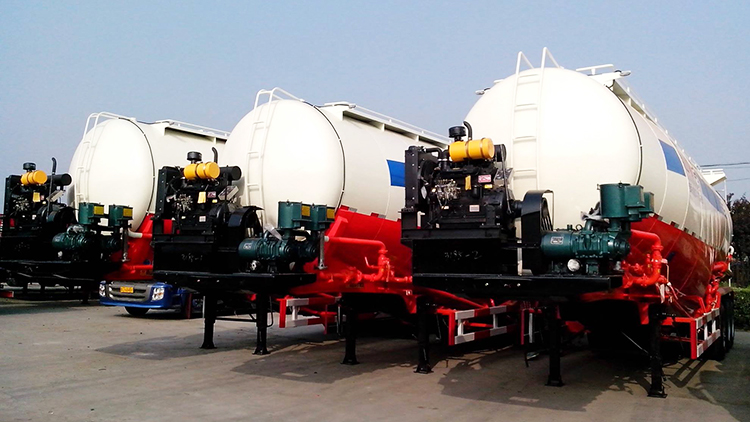

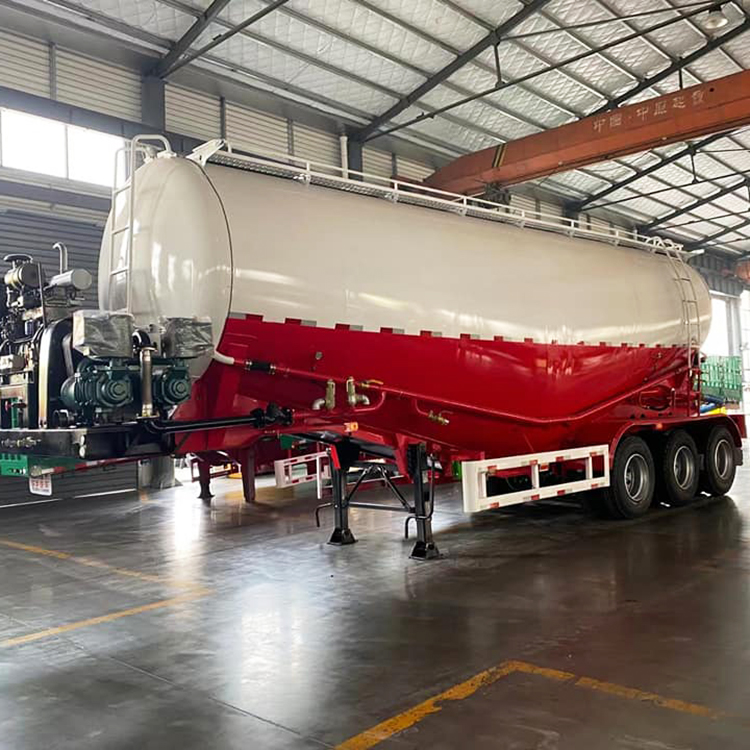

Picture Information

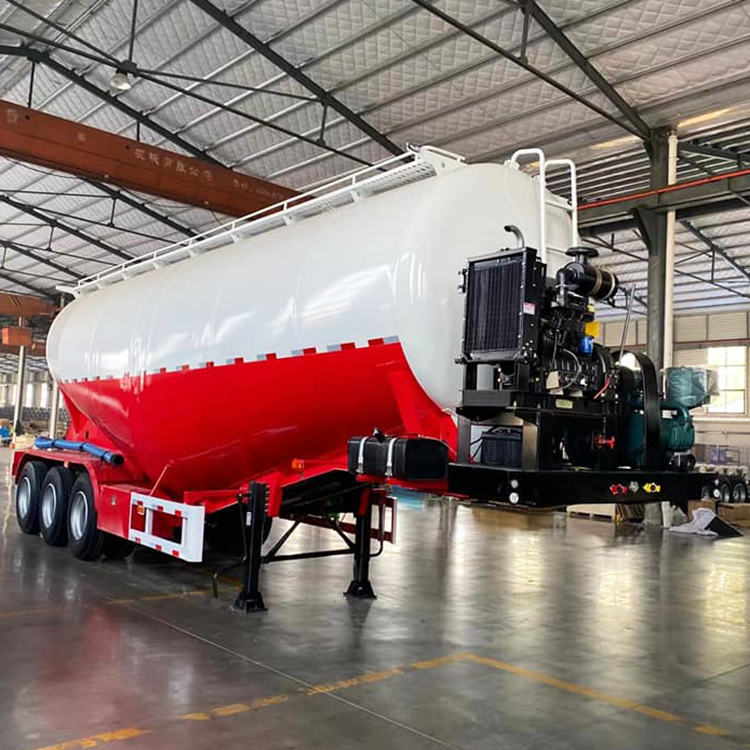

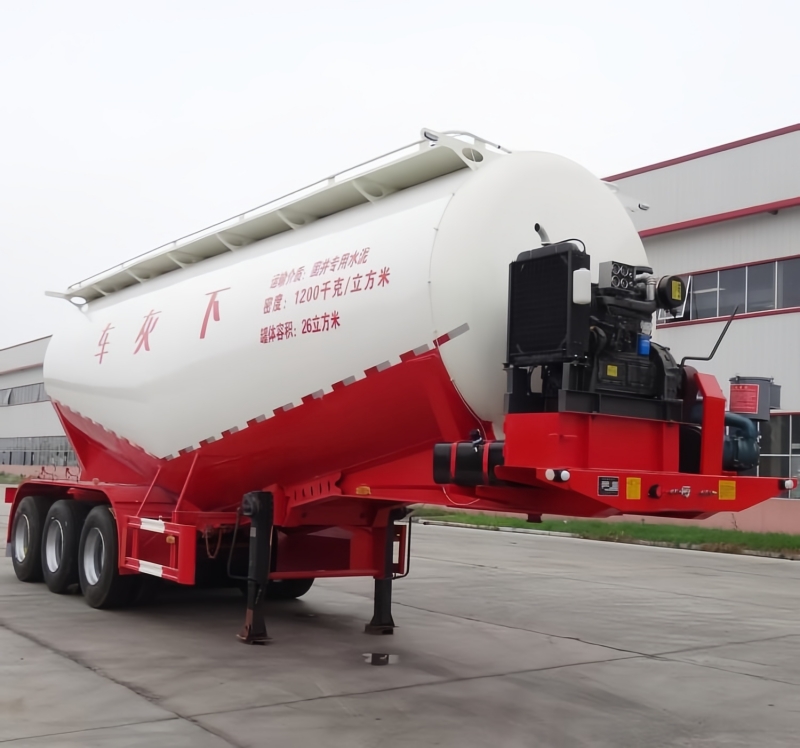

This 50m3 cement tanker trailer can be used to load powder materials with diameter less than 0.1mm, and its sealing is good enough that the quality of the material will not be damaged. Especially in bad weather, it will not let rain or snow from the outside enter the interior and cause material moisture. The capacity of this trailer is large enough that it can load about 60 tons of bulk cement at a time. Therefore, for many large construction sites or projects, it can better improve the efficiency of transportation and loading and unloading, thus saving costs. This tanker is equipped with 3 manholes, diesel engine and air compressor, which can effectively improve work efficiency.

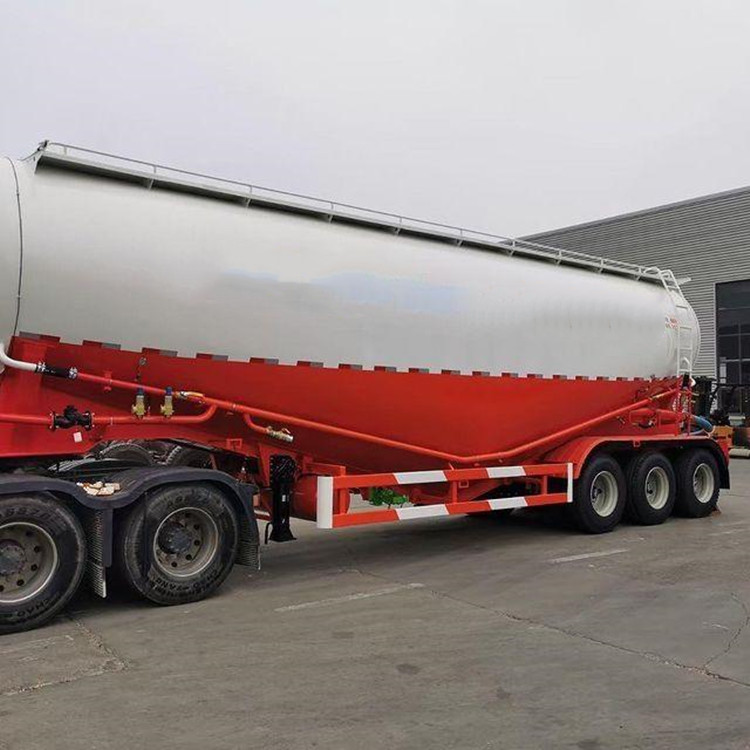

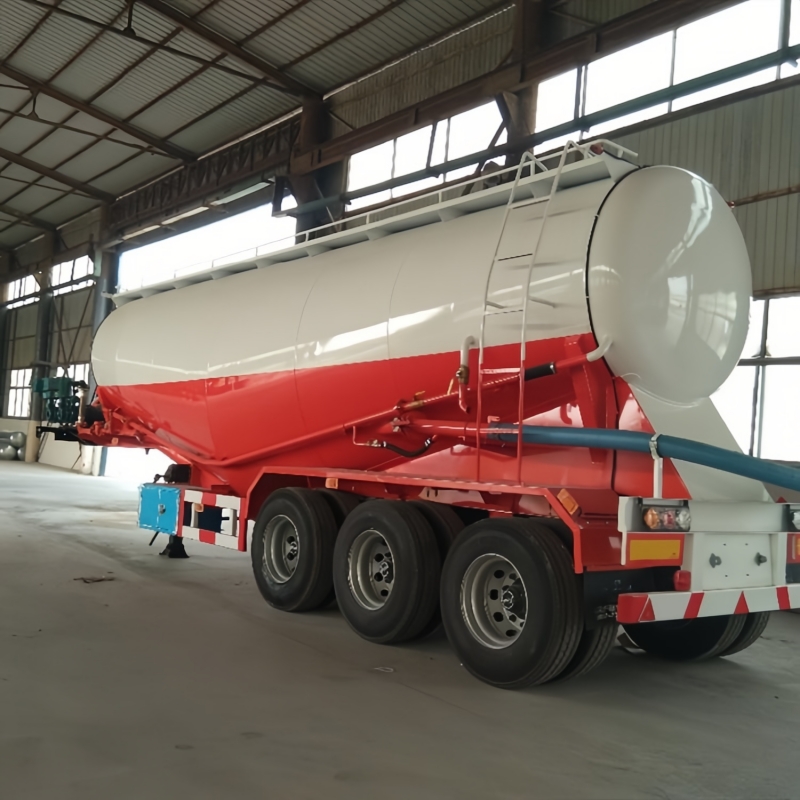

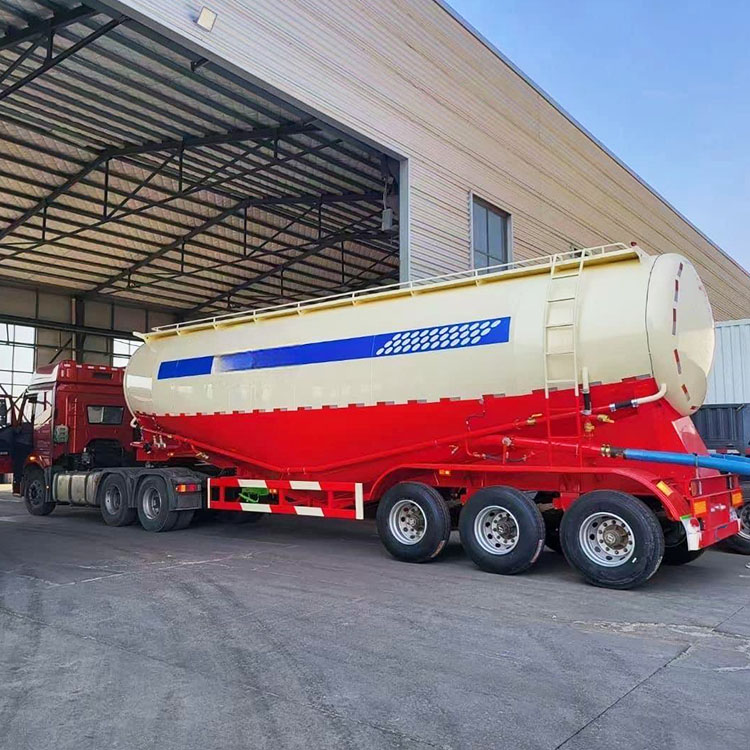

3 Axles with 12 Tires Cement Tanker Trailer

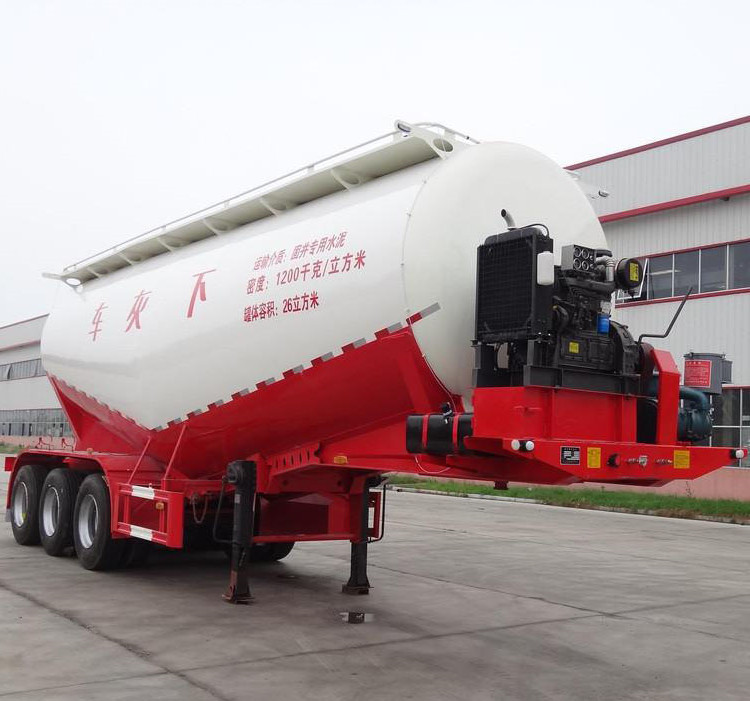

W type cement tank truck trailer
