Product Details

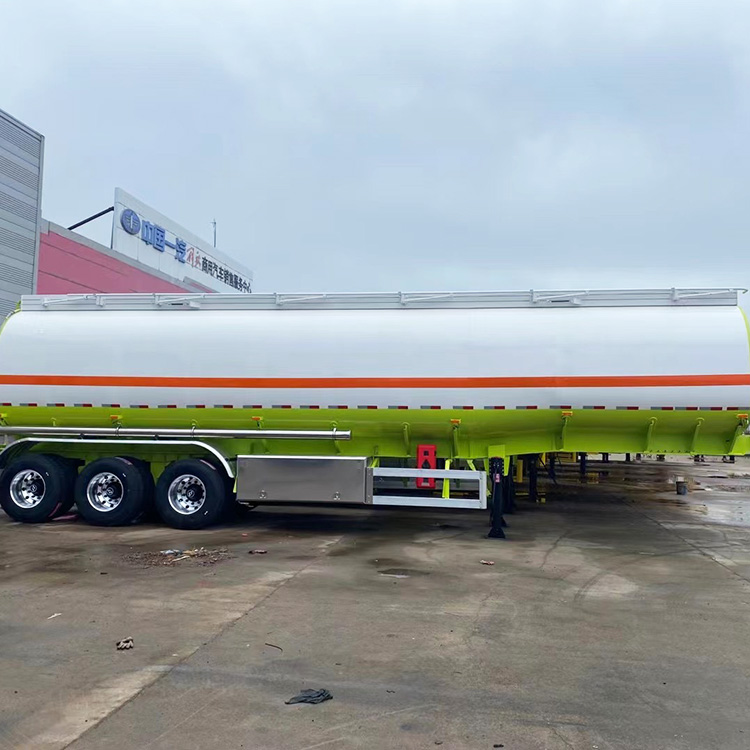

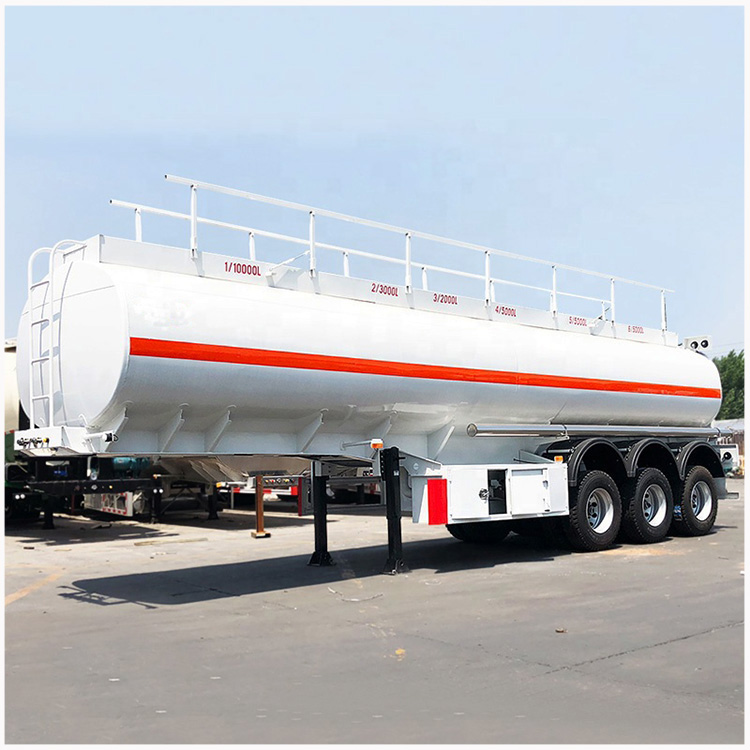

Oil fuel tanker trailer is a tanker that is connected to the towing part by the traction head.Compared with the ordinary one-piece tanker, the fuel storage trailer can effectively improve the transportation efficiency. In the case of the same tonnage, reduce transportation costs and save fuel consumption.
| Type | Fuel Tanker Trailer |
| Shape | Elliptical, circular type shape |
| Overall Dimension | 9500-13000*2500*3900mm ( can be customized ) |
| Total volume(L) | 28000-60000 Liters |
| Tank body | Q345 Carbon steel material |
| End plate | Q345/6mm Carbon steel sheet |
| Axle | 3 axle 13T Fuwa Brand |
| suspension system | Mechanical suspension |
| steel spring | 10/10/10 leaf spring suspension |
| Manhole cover | 500mm manhole cover 8 sets |
| Tire | 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional |
| Rim | 9.0,12pieces |

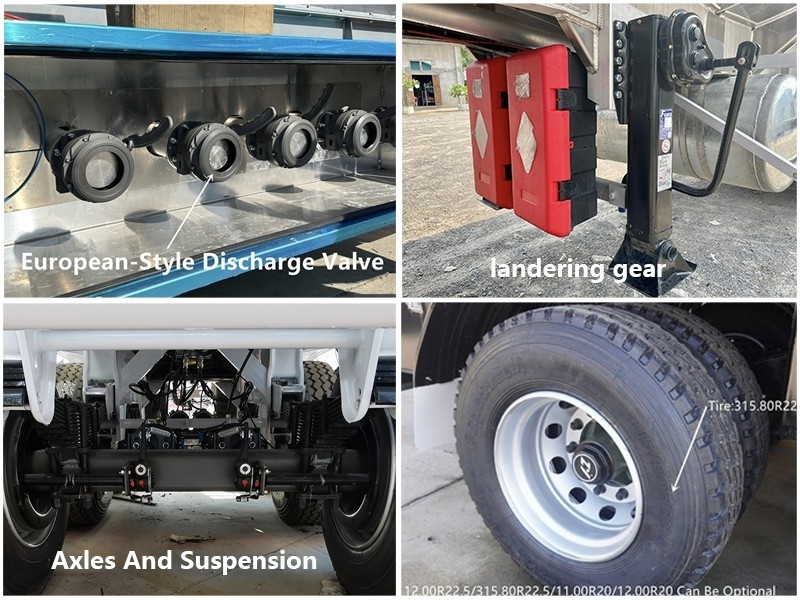

| Discharge valve | 4"disc valve,8pcs |
| Discharge pipe | 4"seamless steel tube,8pcs |
| Landing gear | JOST(D200T) or China brand 28T |

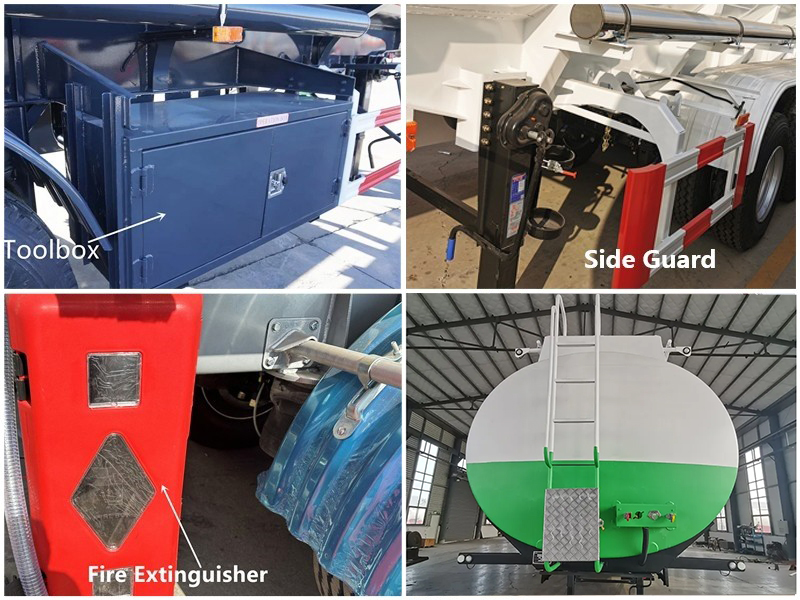

| Tool box | one piece |
| Main beams | Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material |
| Electrical system | voltage:24v Reception:7 ways(7 wire harness) |
| Tail lamp with turn signal,brake light&reflector,side lamp etc. | |
| one set 6-core standard cable | |
| Compartments | Optional |
Product Advantages
1.Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other.
2.Thickened suspension and leaf spring can adapt to Africa bad road condition，Detachable spare tire rack, it’s easy when you change a wheel.
3.Quality Axles and Brake system:BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safe and save tire cost.
4.The strength is higher, and it is safer and more durable. After the can body is molded, the high-pressure gas is leak tested to make the petrol tanker for sale tank body have high strength.
5.Fuel transport tank trailer is suitable for transporting gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products such as alcohol, aldehyde, benzene, ether and other liquid substances.
