Product Details

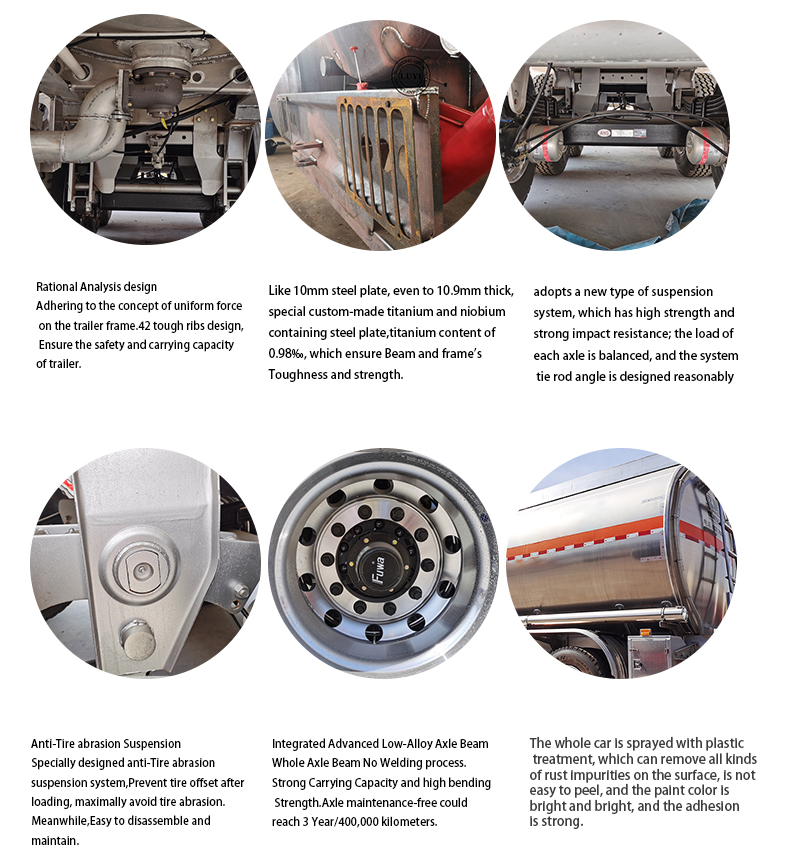

1. The main body of the frame is Q345B high-strength structural steel, with automatic submerged arc welding passing through the crossbeam, etc.
2. Thickened suspension and steel plate spring, suitable for harsh road conditions in Africa, detachable spare tire frame, convenient wheel replacement.
3. High quality axles and braking system: BPW, the world's best axle of Fuwa, is used in conjunction with Weibo brake valves to more effectively brake safely and save tire costs.

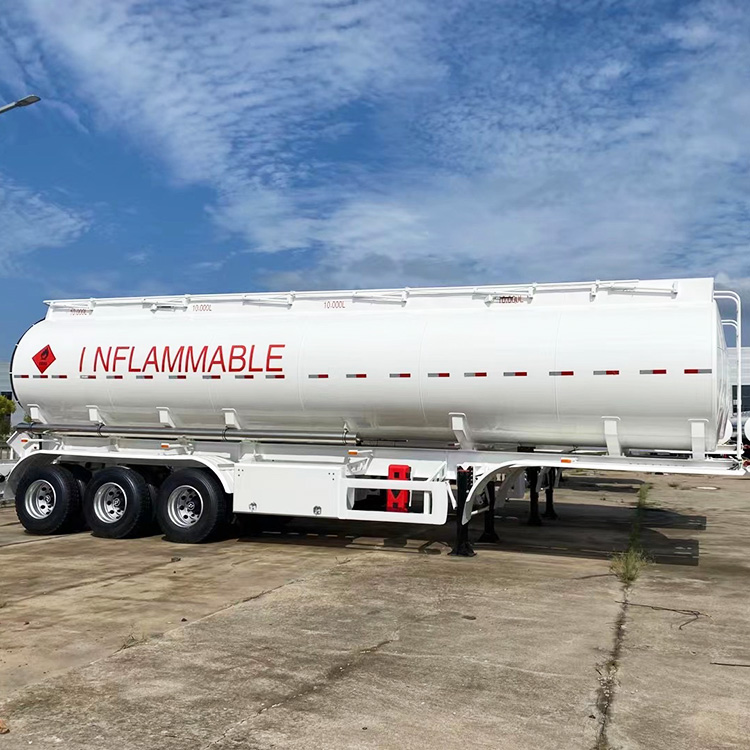

| Type | Fuel tanker trailer |
| Shape | Elliptical, circular type shape |
| Overall Dimension | 13000*2500*3900mm ( can be customized ) |
| Volume | 54,000 liters + 3%~5% |
| Tank body | Q345 Carbon steel material |
| End plate | Q345/6mm Carbon steel sheet |
| Axle | 3 axle 13T Fuwa /BPW etc Brand |
| Suspension system | Mechanical suspension，Air Suspension optional. |
| Steel spring | 10/10/10 leaf spring suspension |
| Manhole cover | 500mm manhole cover 8 sets |
| Tire | 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional |
| Rim | 9.0,12pieces |
| Discharge valve | 4"disc valve,8pcs |
| Discharge pipe | 4"seamless steel tube,8pcs |
| Landing gear | JOST(D200T) or China brand 28T |
| Tool box | One piece |
| Main beams | Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material |
| Electrical system | Voltage:24v Reception:7 ways(7 wire harness)Tail lamp with turn signal,brake light&reflector,side lamp etc. One set 6-core standard cable |

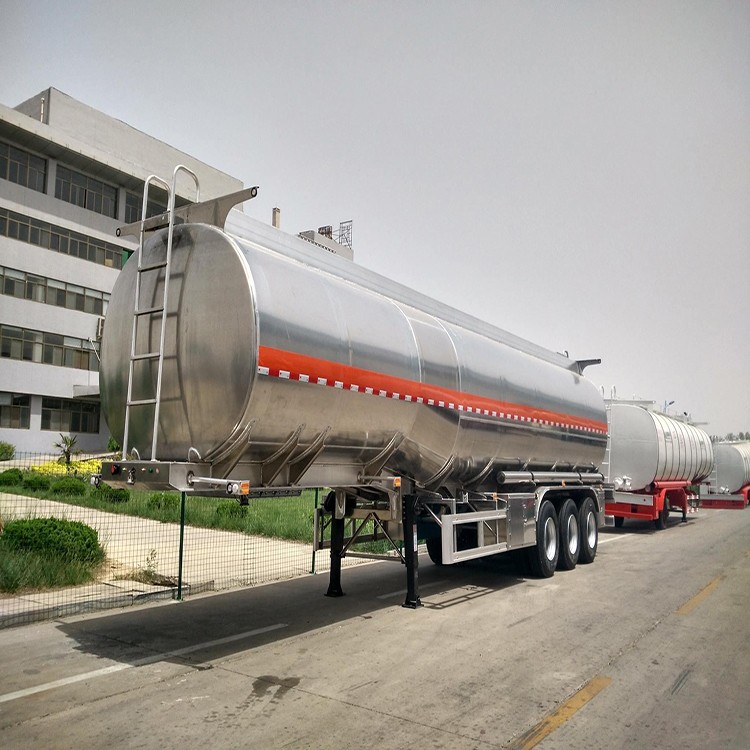

3-axle 5154 aluminum oil tank semi-trailer
