Product description

Semi with dump trailer is a common type of semi-trailer, which is widely used in domestic and international markets. dump semi trailer is used to transport of bulk cargo, coal, ore and build materials.

The 10 meters hydraulic dump truck, advantages of safety, good quality and so on will be well reflected in the vehicle operation. Under the condition of standard load transportation, the load bearing pressure of semi-trailer is reduced, the quality is guaranteed, the operating income is greatly improved and the operating cost is saved.

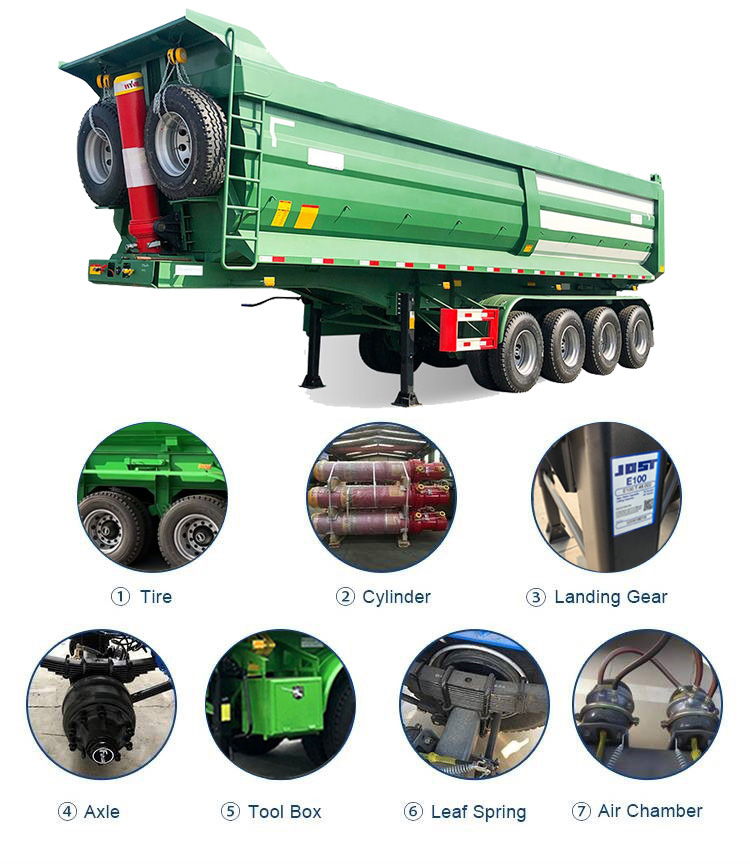

Product specification

Semi trailer Dimension	11280*2495*3970mm
Tare Weight	About 10-15T
Total Volume	37m3 or less than 80tons
Lifting system	Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder
Main beam	Q345B Steel
Axle	13T FUHUA Brand
Spring leaf	90(w)mm*13(thickness)mm*10 Layer
King pin	2.0 0r 3.5 inch bolts type
Landing Gear	JOST brand C200T or China brand 28Tons (Double speed)
Suspension	Mechanical suspension
Rim	9.00
Tire	12.00R22.5
Pneumatic Braking system	WABCO
ABS	Optional

Dump trailer semi truck of advantages

1. The main beam design is reasonable, and the semi with dump trailer body is made of high strength steel plate, which is formed in one time, lightweight, environmental protection and energy saving；

2. The heavy-duty dump trailer semi truck cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. Strengthened Ribs, unique structure design to maximize the payload.

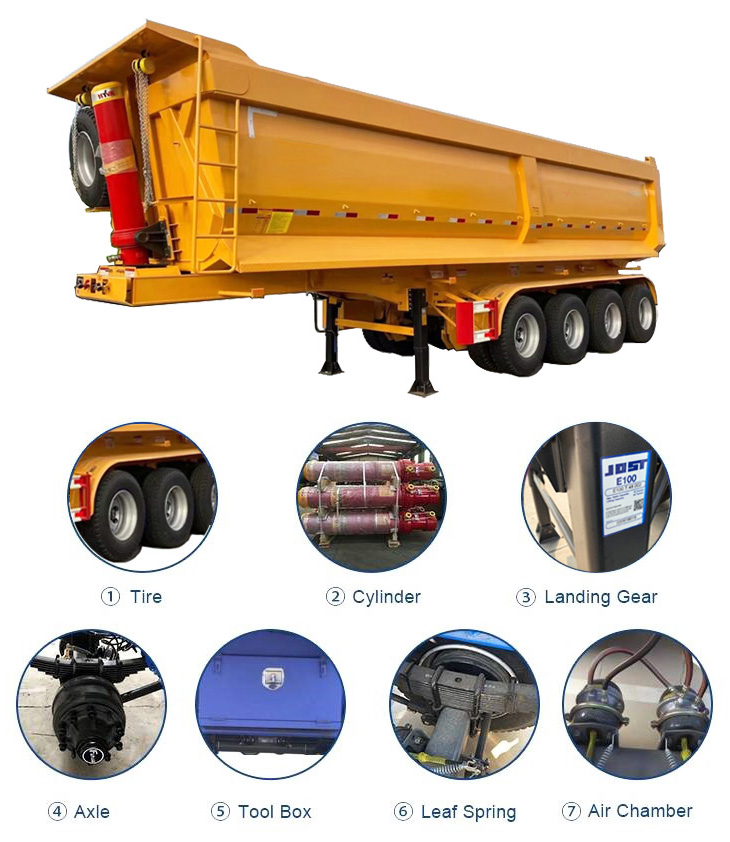

Product images

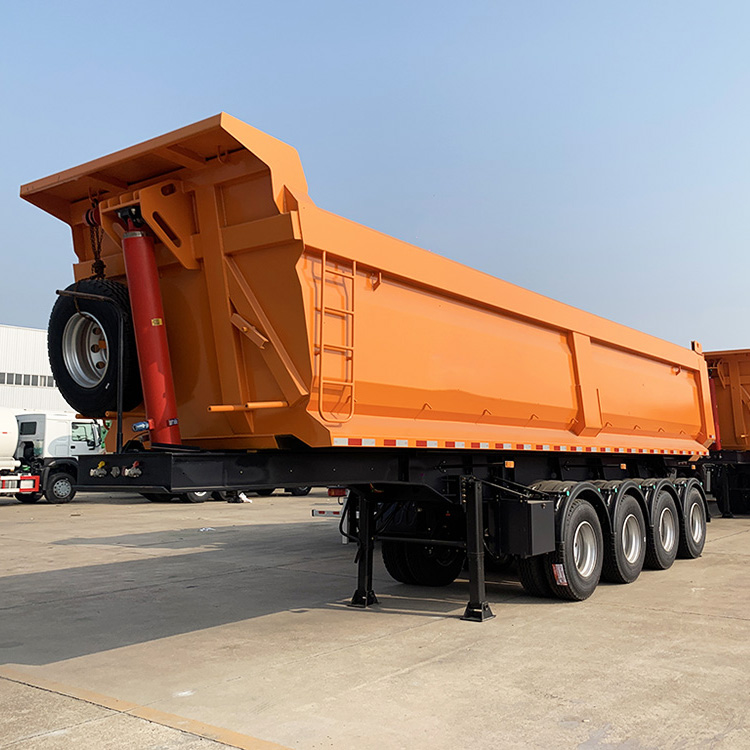

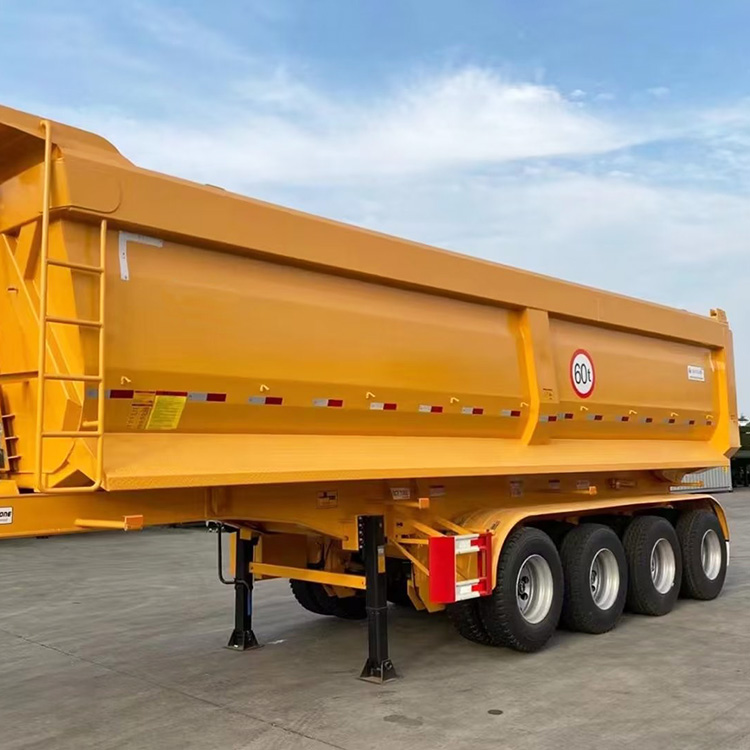

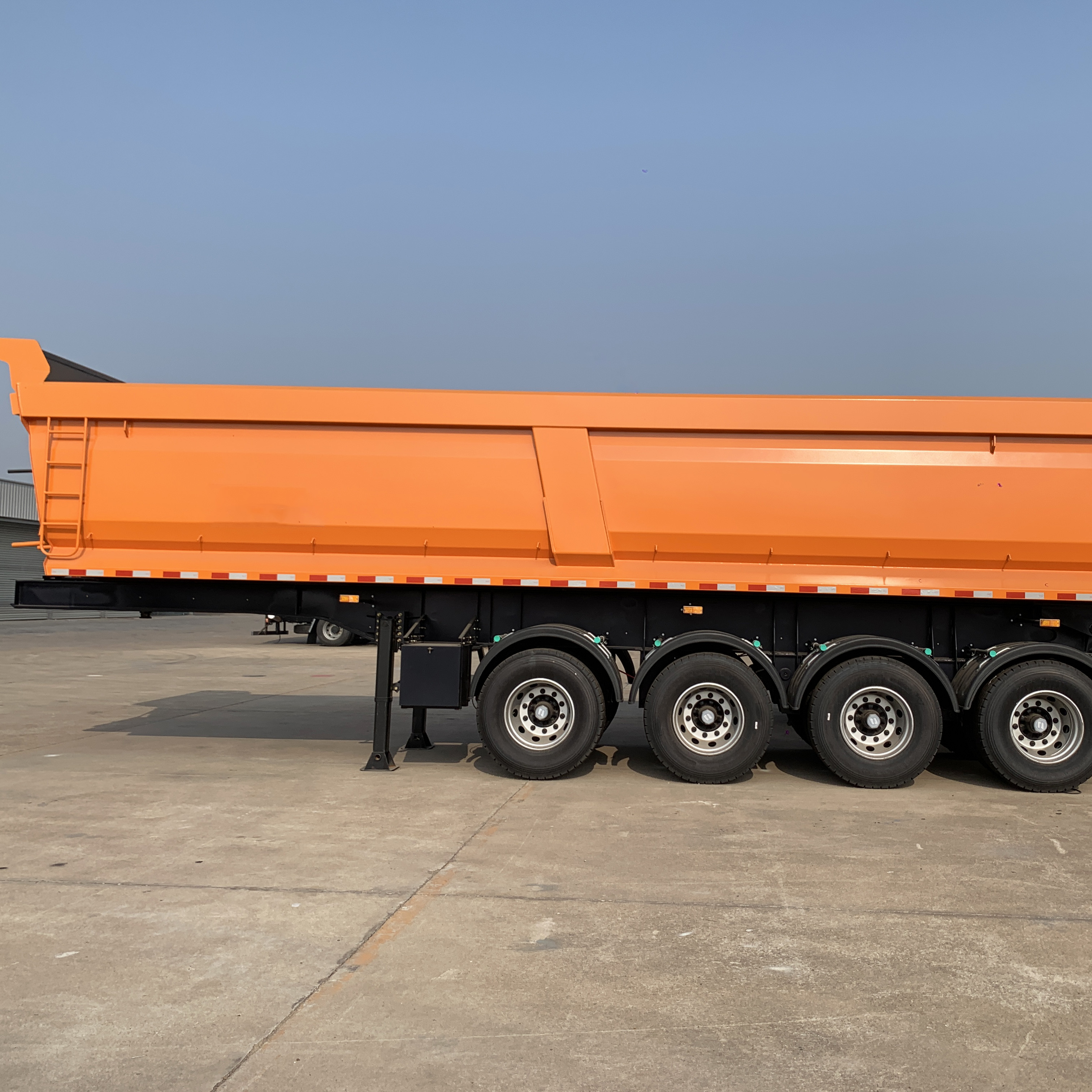

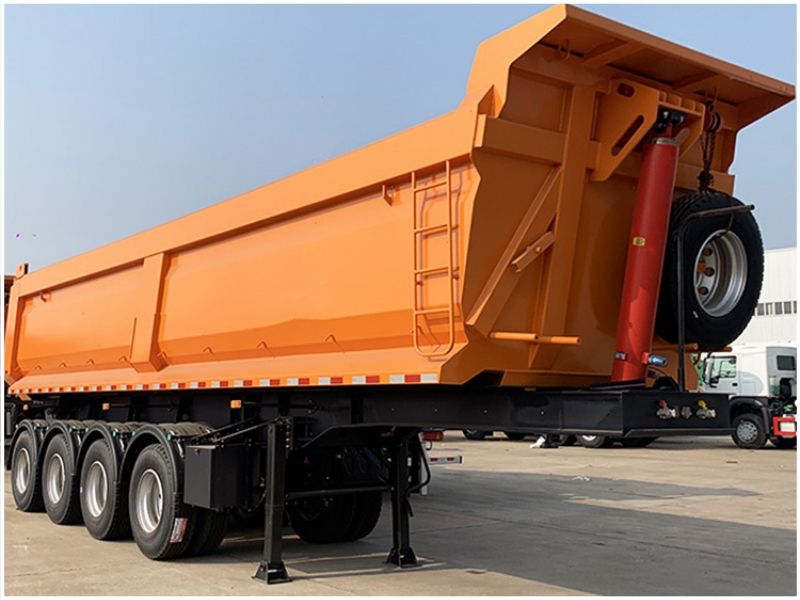

HSTAR U type 4 Axle 10 M Hydraulic Self-dumping Semi Trailer

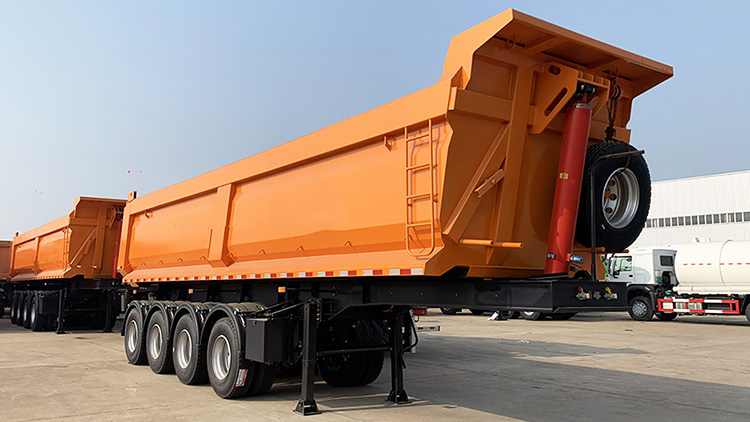

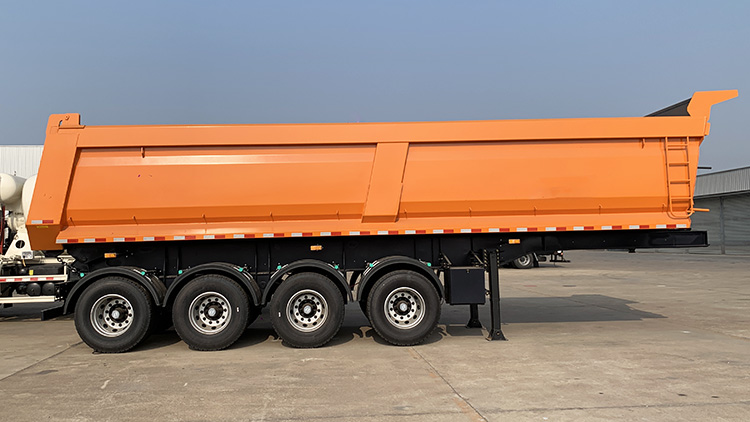

4 axle semi with dump trailer 10 meters hydraulic dump truck for sale

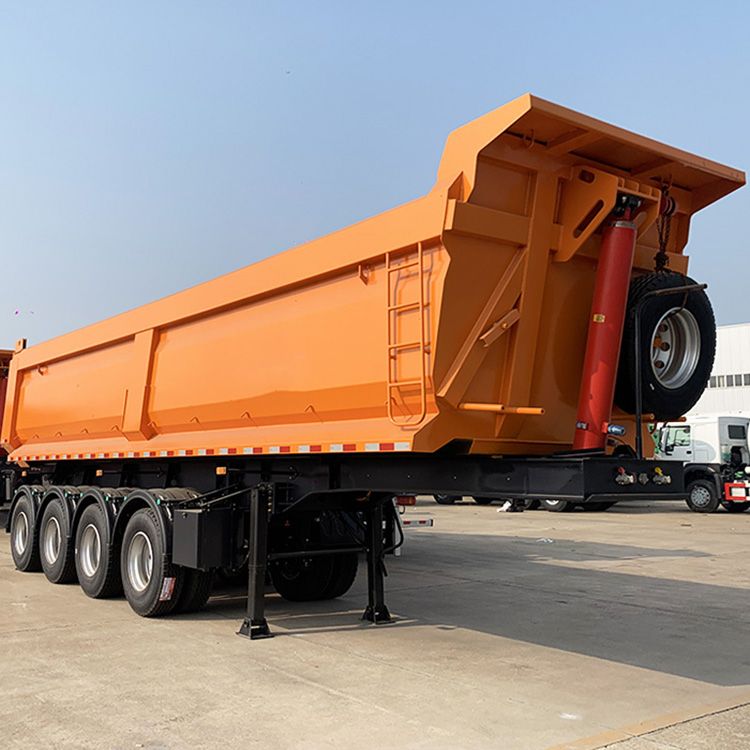

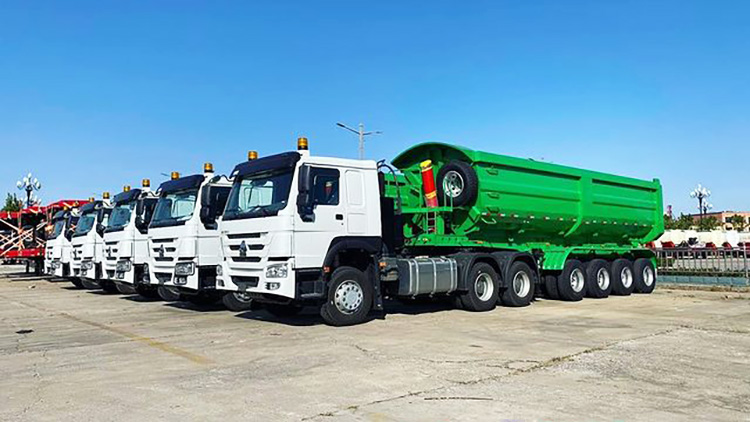

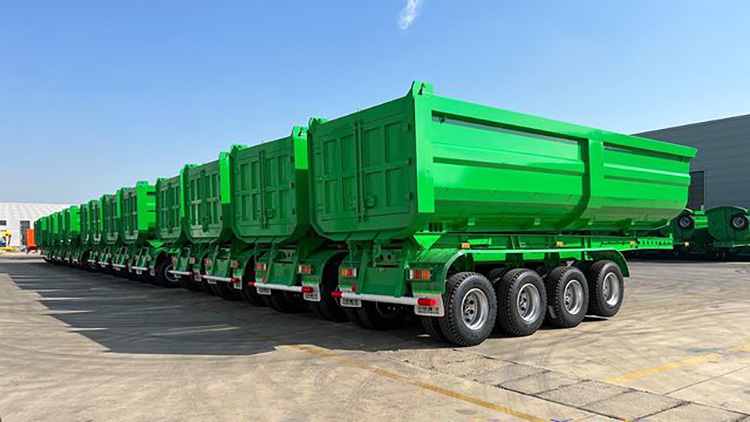

4 axles semi with dump trailer hot sale in Africa
