Product Details
1.Dump semi-trailers are suitable for transporting bulk goods such as coal, ore, and building materials. 1. The carriage adopts side-turning and rear-turning dumping methods, which can effectively transport bulk and scattered goods.
2. The frame and longitudinal beams of the carriage are welded with high-quality manganese plates. The cargo box is available in two types: dustpan and rectangular. It has high strength, strong lifting force, good stiffness and toughness, strong load-bearing capacity, and no permanent deformation.
3. Excellent workmanship: The main components are processed with advanced equipment, the longitudinal beams are made by fully automatic submerged arc welding, and the assembly machine is used for precise assembly of wheel axles and steel leaf springs.
1.Dump tipping semi trailer, 3-4axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation.
2.Hstar the 40ton dump semi trailer frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
3.Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the 45m3 tipper trailer.

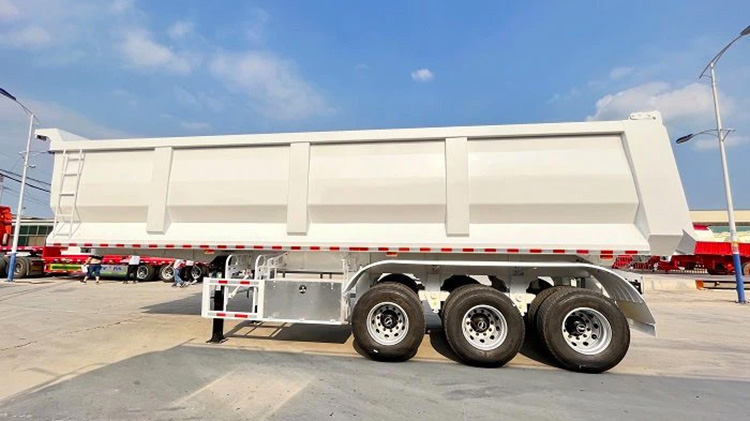

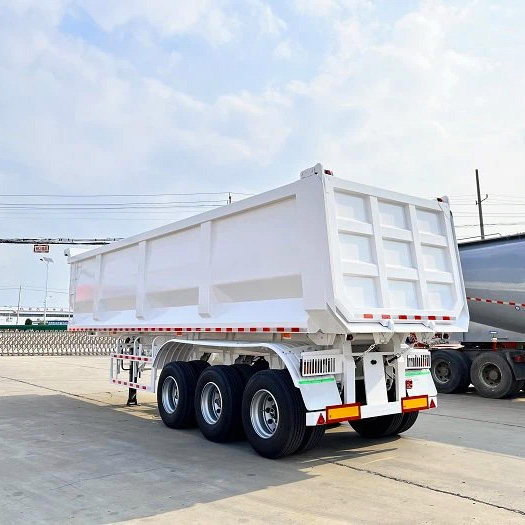

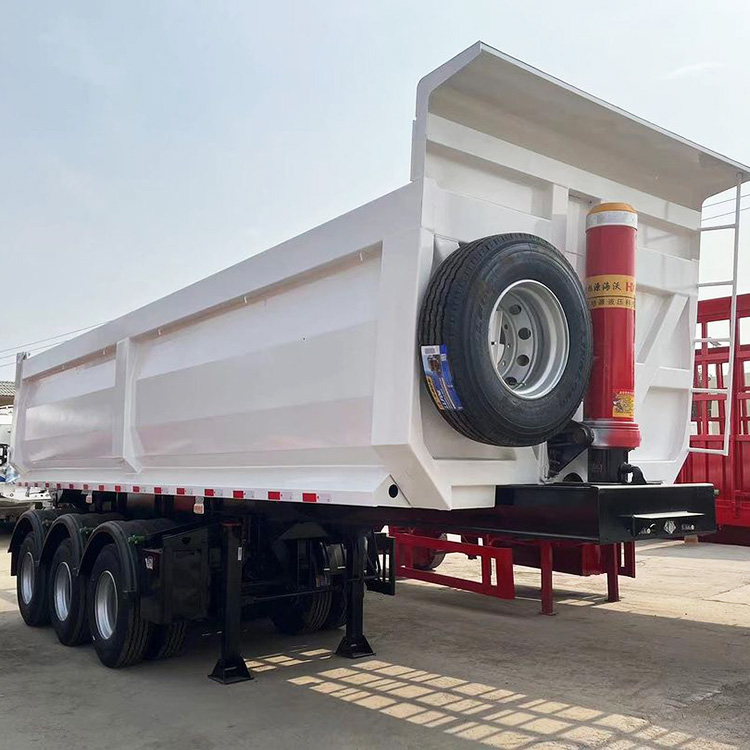

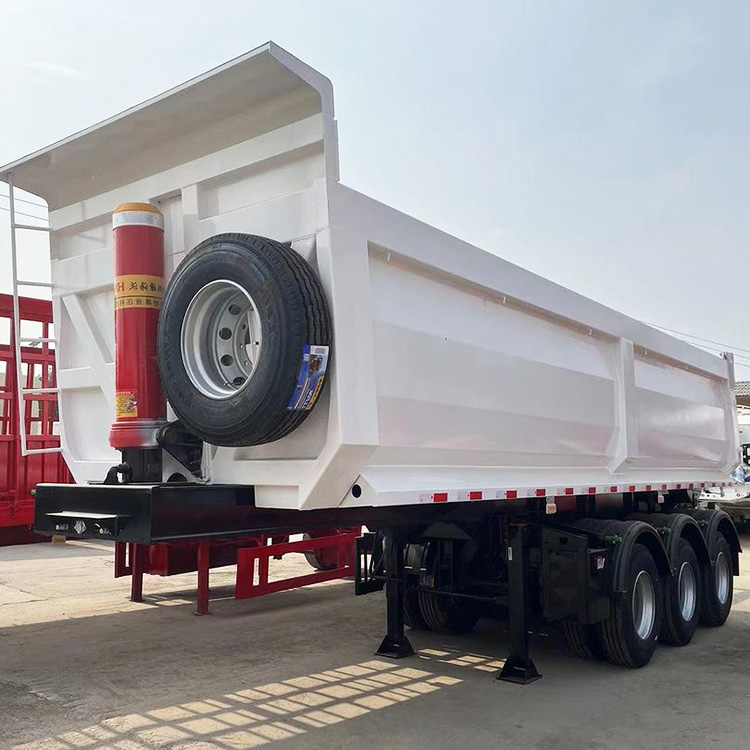

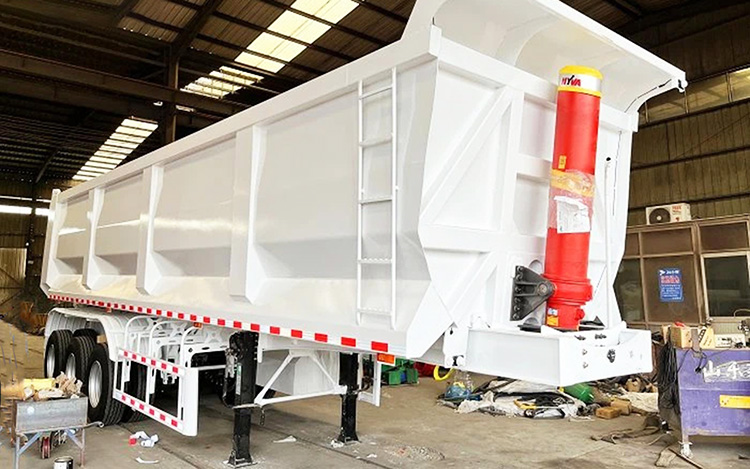

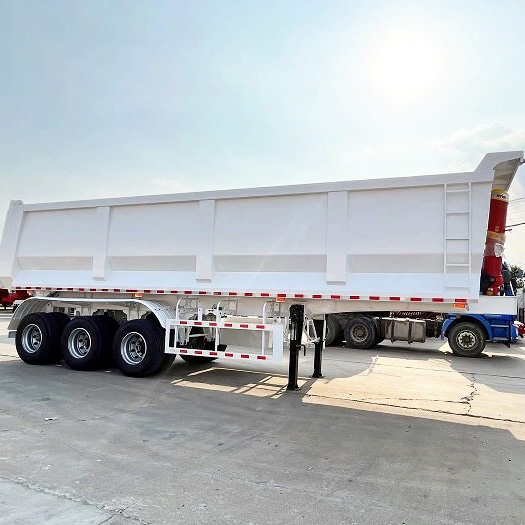

| Trailer Model | Triple Axle 45m3 Tipper Truck Trailer |
| Overall Dimension | 7500-9900*2500*2900-3800mm |
| Inner Dimension | 6600-9000*2400*1300-2200mm |
| Box Volume | 28-48m3 |
| Thickness of plate | Bottom: 6/8mm, Side: 4mm/6mm (optional) |

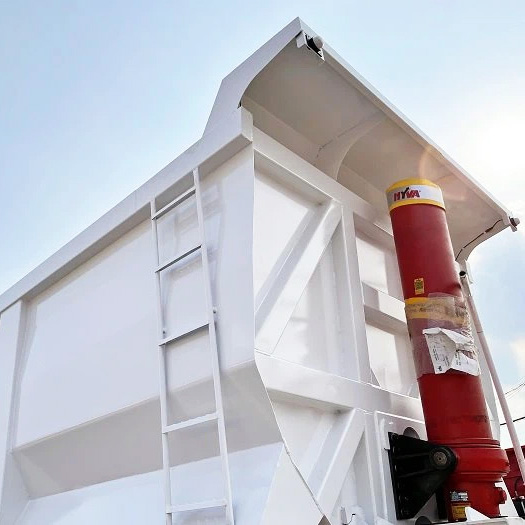

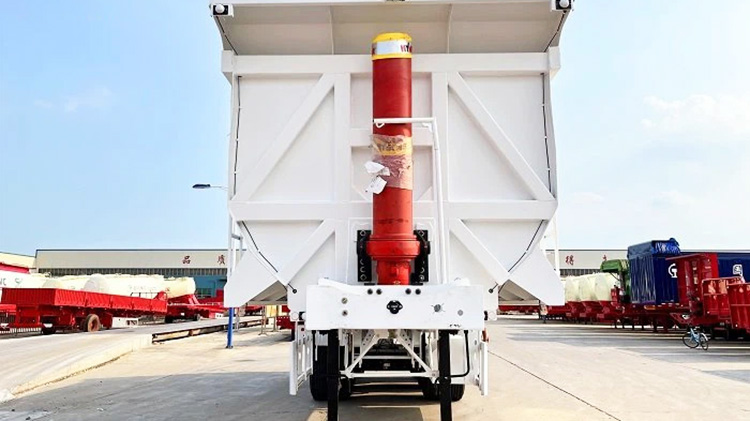

| Lifting System | HYVA/CHINA BRAND Cylinder |
| Loading Weight | 40-80T |
| Axle | 3/4/5/6 axles, FUWA/BPW/YAHUA brand axle |
| Suspension system | Mechanical or air supension (American or German) |
| Tire Type | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
| Traction Pin | JOST 2" or 3.5" traction pin |
| Landing Leg | JOST, FUWA or YAHUA brand 28T |
| Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); |

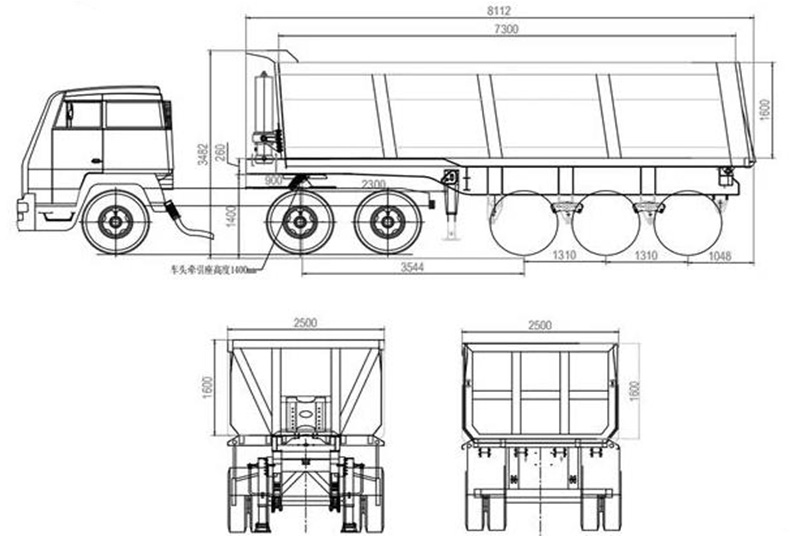

Triple Axle 40ton dump semi trailer drawing
Lander triple axle tipper truck trailer is suitable for the transport of coal, ore, building materials and other bulk materials.After dump trailer can effectively load, unload and transport bulk cargo, U-shaped box is a popular product in construction transportation industry.
HSTAR 3 axle 45m3 tipper trailer for sale
Hot sale triple axle tipper truck trailer
3 axles 45m3 tipper trailer 40ton dump semi trailer for sale
