Product Details

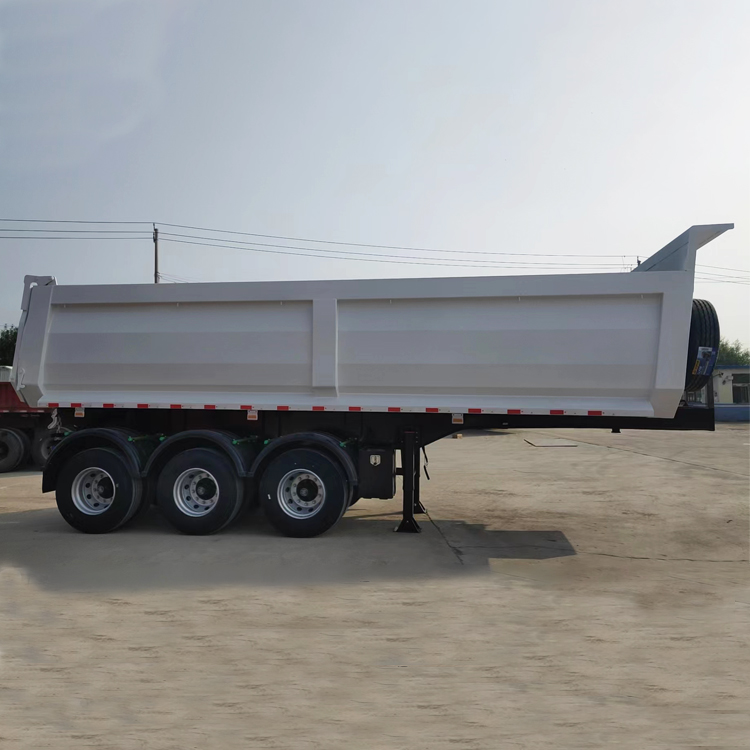

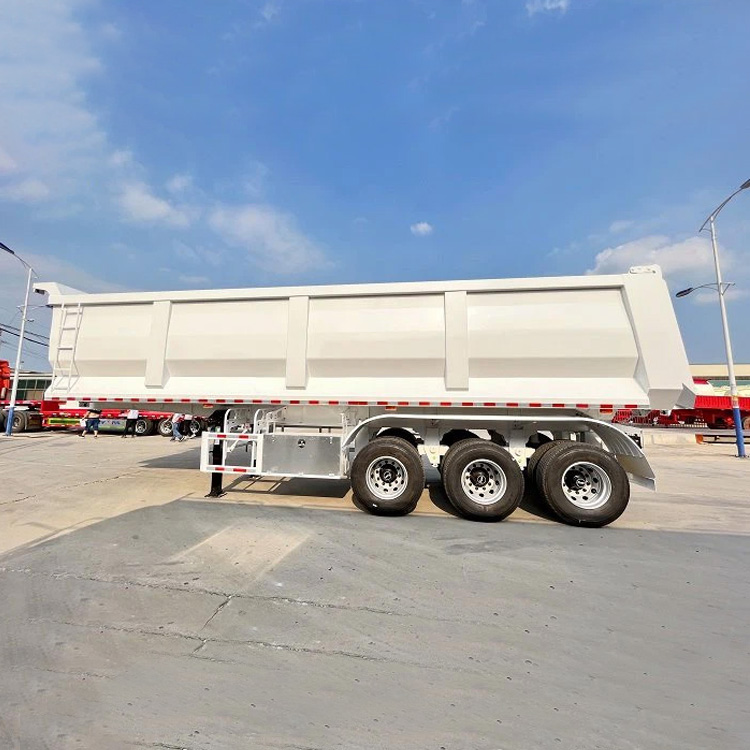

Hstar three axles tipper trailer is equipped with a complete set of hydraulic system with a maximum dumping angle of 45 °. Fast unloading speed and high efficiency.
Multi functional design,Tipper Trailer usually used in construction companies to carry sand, stone chips, bigger stones,coal and else. We can use strong material on the trailer to make is more durable.
| Trailer Name | Three Axles 30 Cbm End Tipper Semi Trailer |

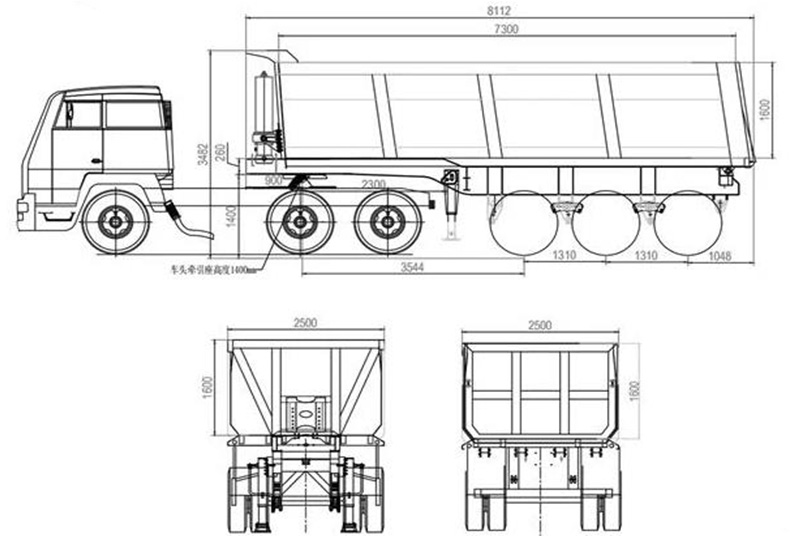

| Dimensions | 10900mm*2500mm*3600mm |
| Loading | 30T, 40T, 45T, 50T, 60T, 24m3,25m3,30m3,40m3,45m3 |

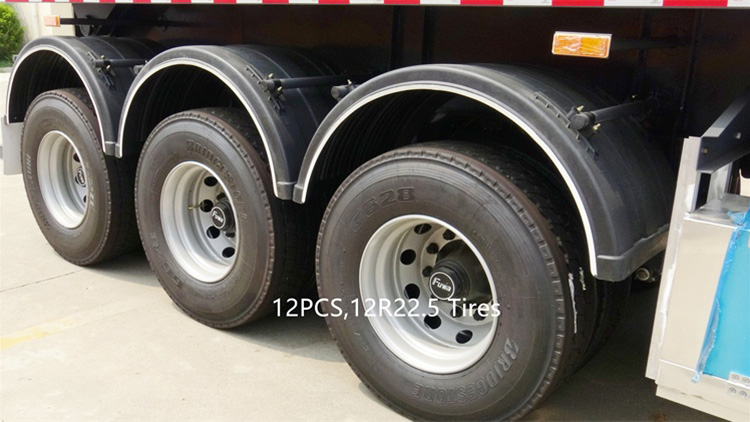

| Tire | 12R22.5, 11.00R20, 12.00R20, 315/80R22.5 |
| Material | Main beams Q345B, upper flange:14mm, middle:10mm, down:16mm |
| Axles | 13T/16T/20T BPW or FUWA or EAST |
| King Pin | 2” or 3.5” |
| Brake System | WABCO Valve with big chamber |
| LandingGears | 28ton ,double speeds |
| Suspension | spring suspension or Air suspension |
| Hydraulic system | Dong Fang Hong brand or HYVA brand |
| ElectricalSystem | 24v, 7core socket, lights according to European standards (suitable for all market) |
| Floor | 8mm plate, side wall 6mm |
| Other parts | 1 tool boxs, 1 spare tire carrier |
| Functions | Transport sand,earth work, stone,etc |
1.High quality steel makes 3 axle 30 cbm tipper trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2.The most skilled workers make welding of this three axles tipper trailer more frequent and strong.
3.Dump box dimensions , box thickness,hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
3 axle 30 cbm tipper trailer dump semi trailer for sale
