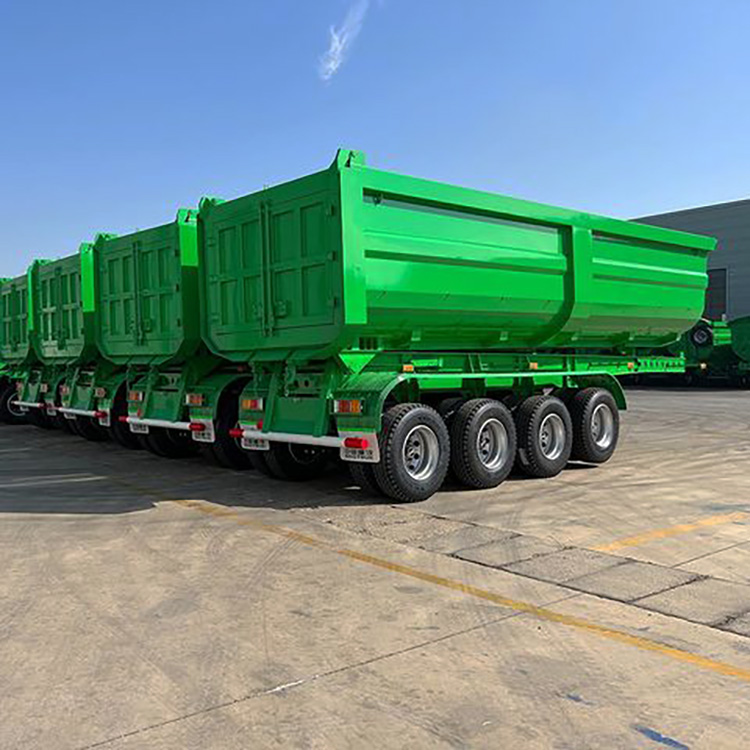

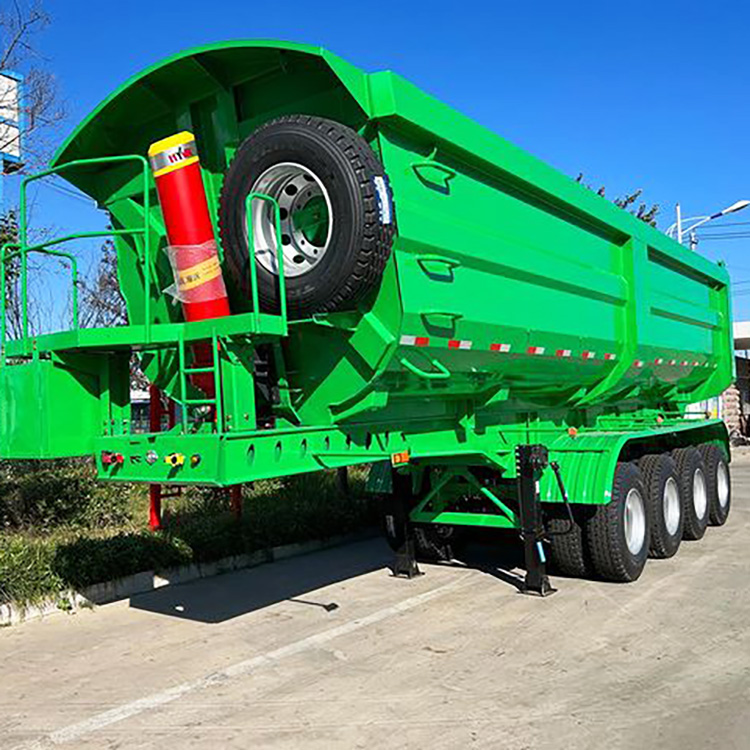

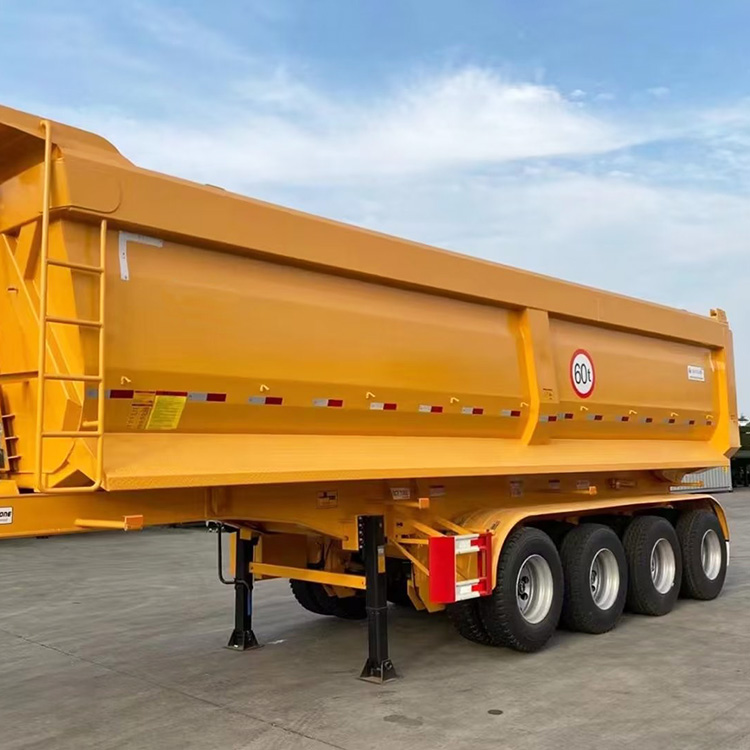

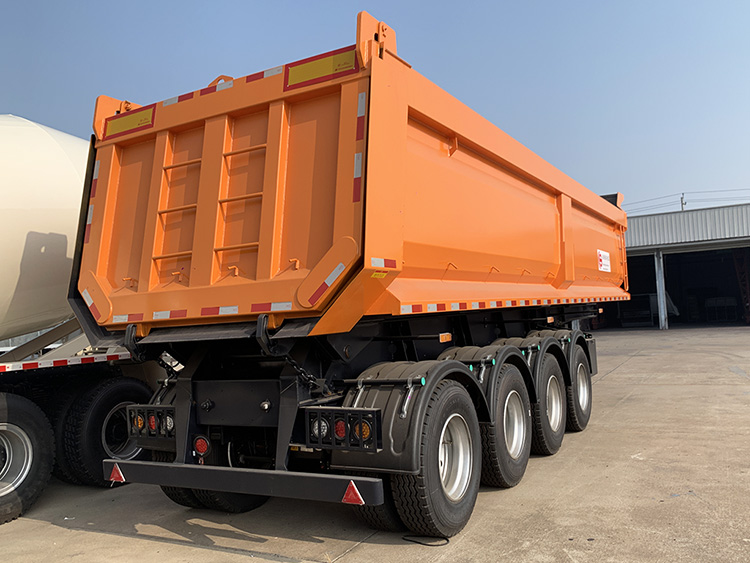

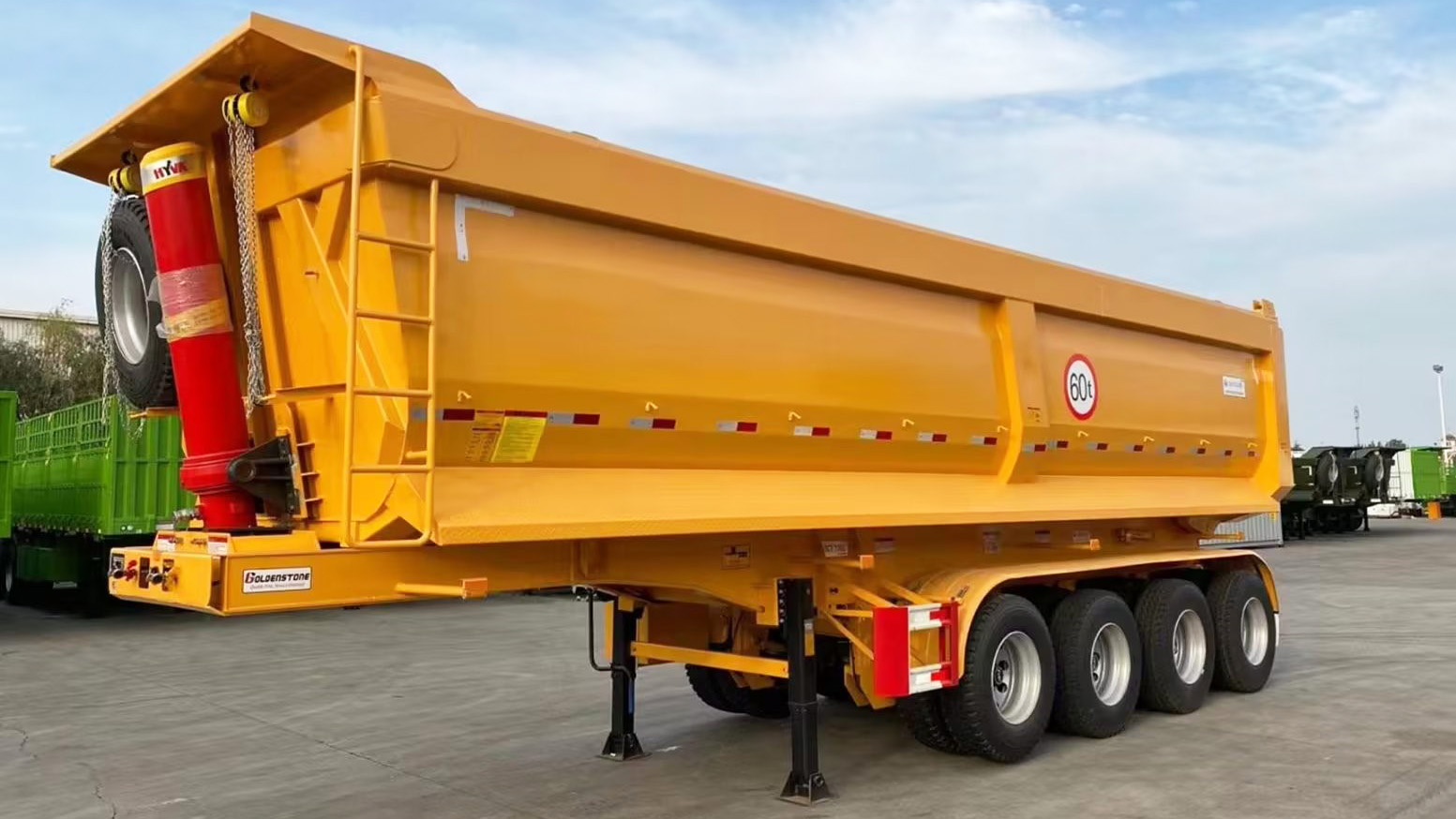

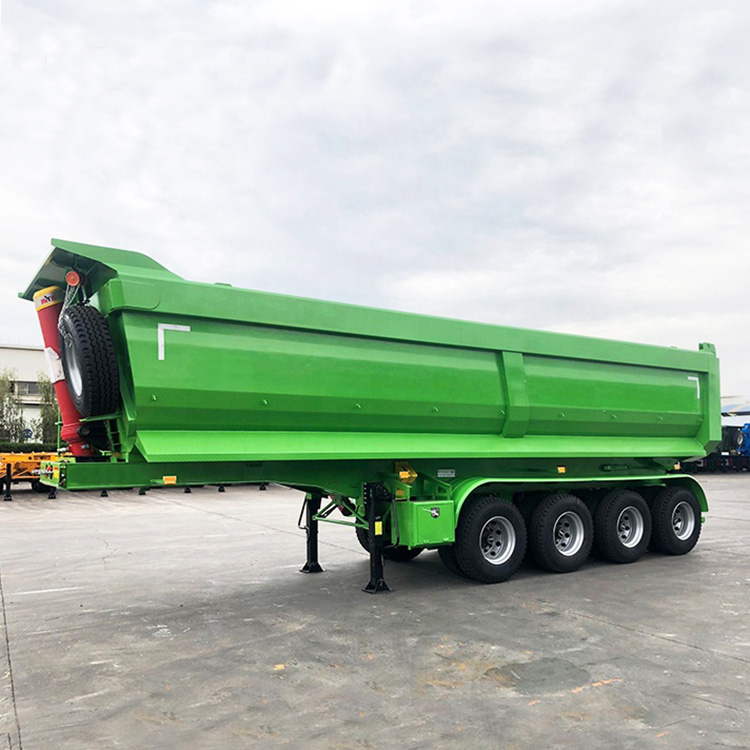

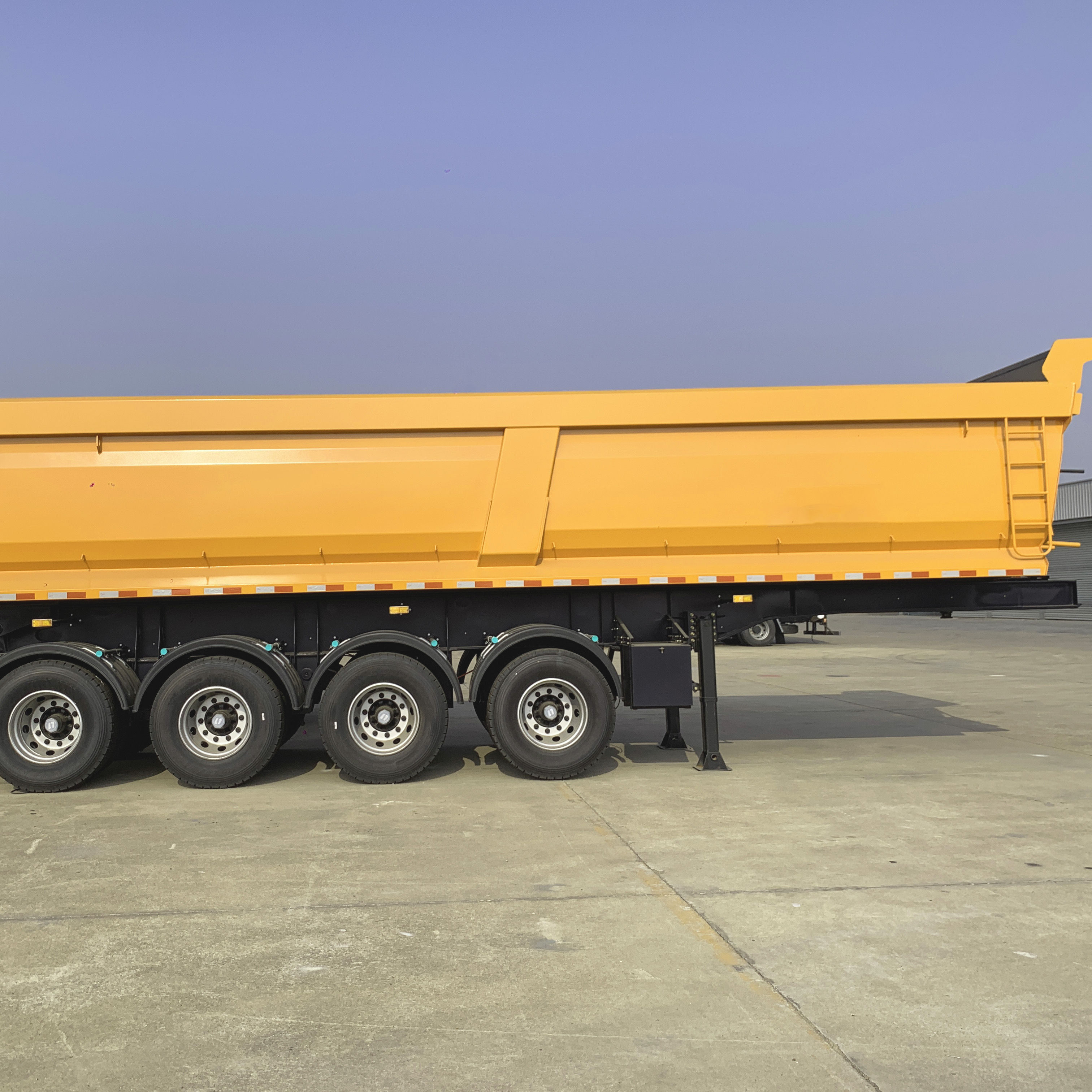

4 Axle 10 M Outlet Rear Dump Semi Trailer

Brand: HSTAR
Product origin: China
Delivery time: Time 20-35 Days
Supply capacity: 100 Sets/Month

1.Professional detail research and design, years of experience; 2.Use brand-name accessories to ensure the quality of the rear dump semi trailer. 3.We have a professional Semi dump trailer design department with rich production experience and short delivery time;

Email Annex

Product Description

The most popular type of rear dump semi trailer is a 50-60-ton semi dump trailer, used to transport mining ores and construction materials in a 35-40 cubic meter bucket.

Lander can also produce light 25 cubic 30-35 ton Semi dump trailer for transporting cement clinker, sand and gravel, as well as heavy 45 cubic dumpers with a maximum payload capacity of 80-100 tons for transporting large ores.

Dump semi trailer

Type	4 Axle 10 M Outlet Rear Dump Semi Trailer
Semi trailer Dimension	1100024003750mm(can be customized)
Bottom plate thickness(mm)	5mm/8mm Q345 steel

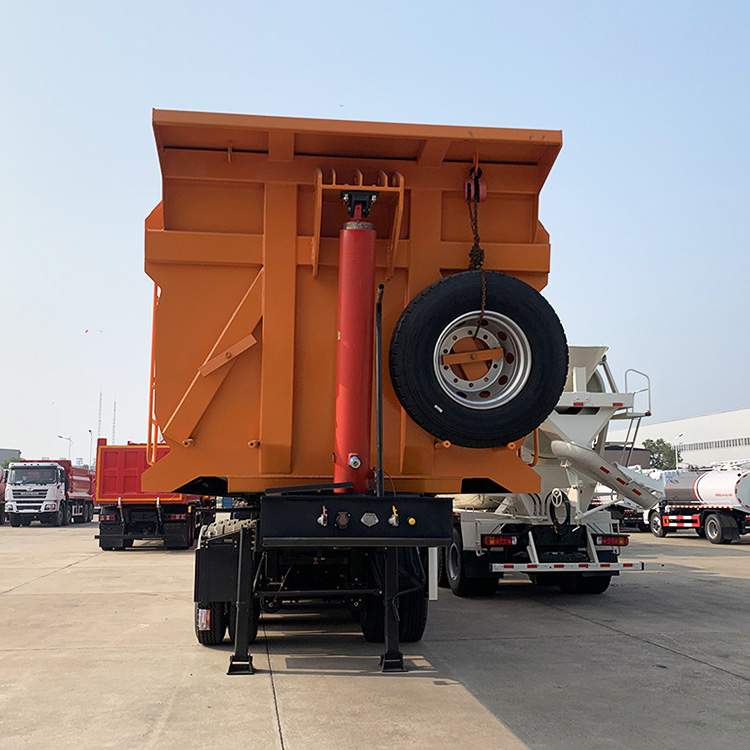

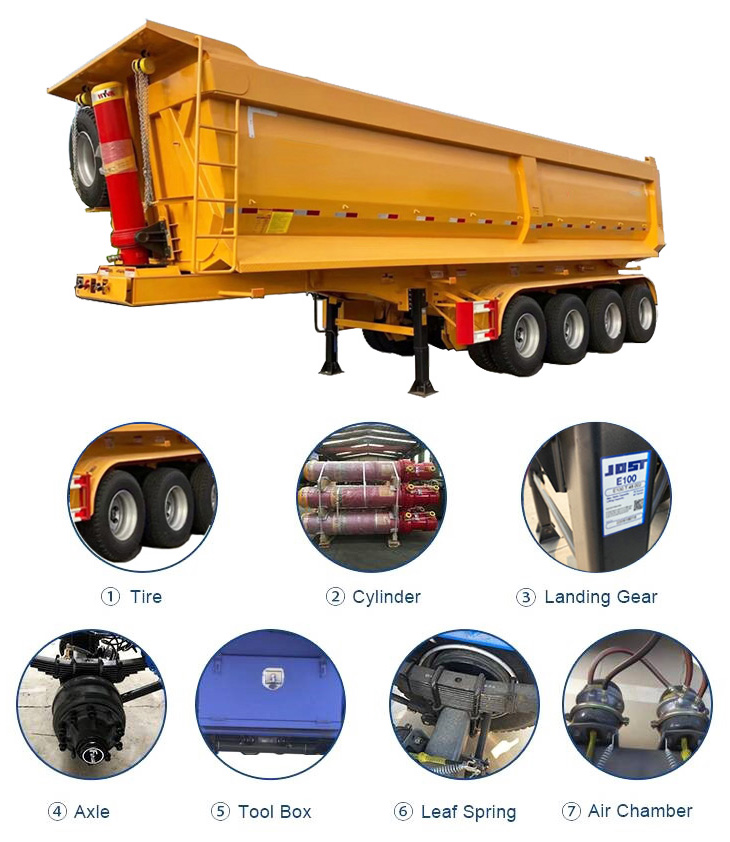

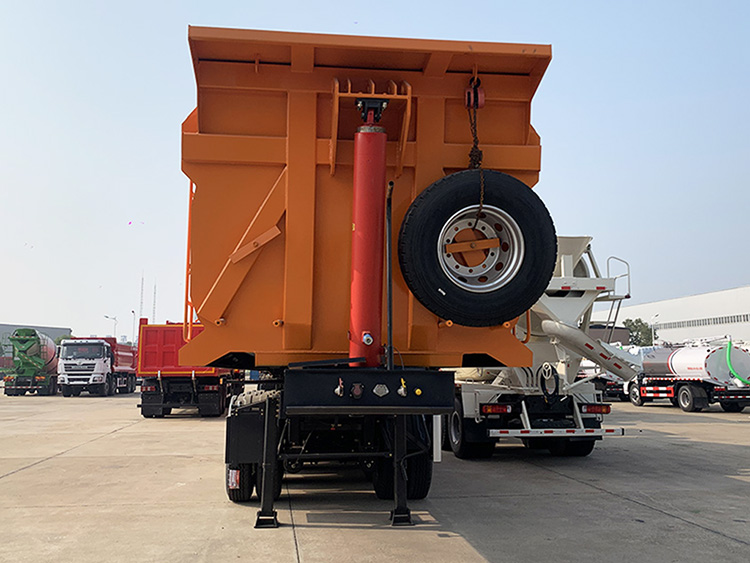

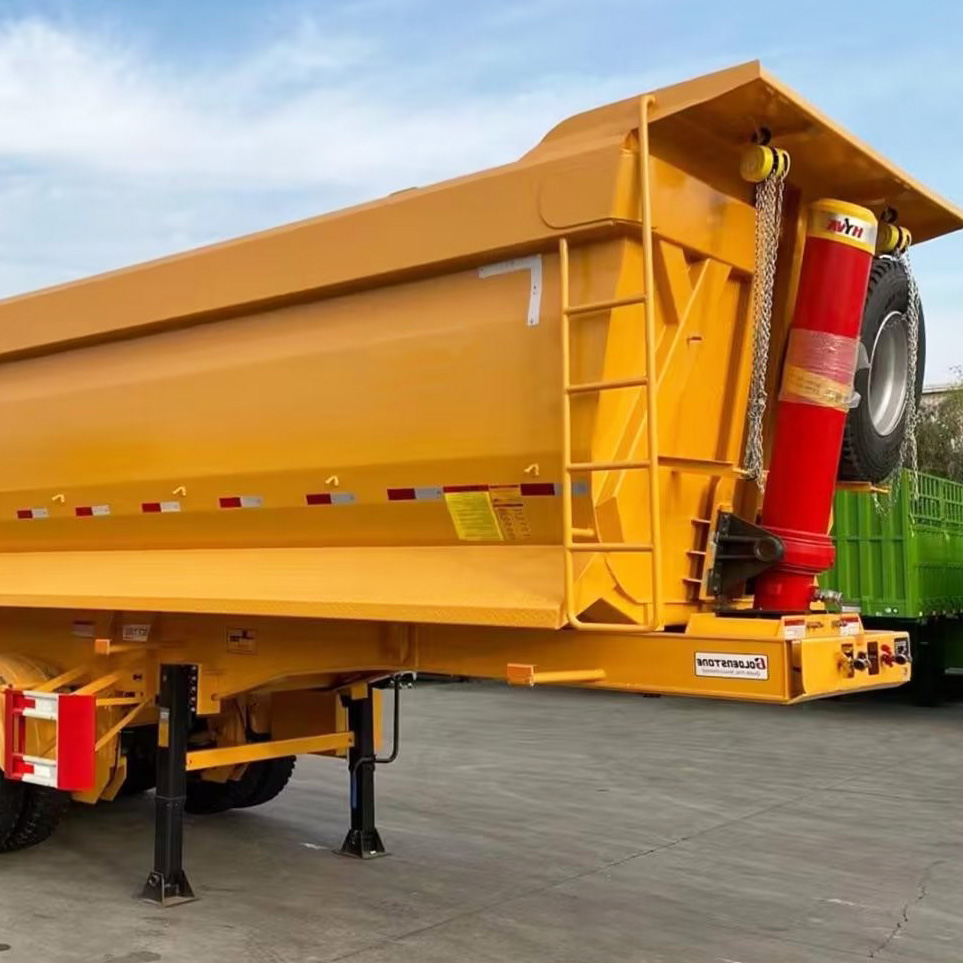

Lifting system	Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder
Main beam	Q345B Steel
Axle	13T YAHUA Brand,16 units
Spring leaf	90(w)mm13(thickness)mm10Layer or 100mm12mm12
King pin	Jost brand 2.0 0r 3.5 inch bolts type or welding type
Landing Gear	JOST brand C200T or China brand 28Tons (Double speed)
Suspension	Mechanical suspension
Rim	9.00-22.5/8.00-20/8.5-20China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available
Tool box	One piece,1m0.5m0.5m(Size can be choose freely)
Painting	1 coat of anticorrosive prime, 2coats of final paint
