Detailed Information

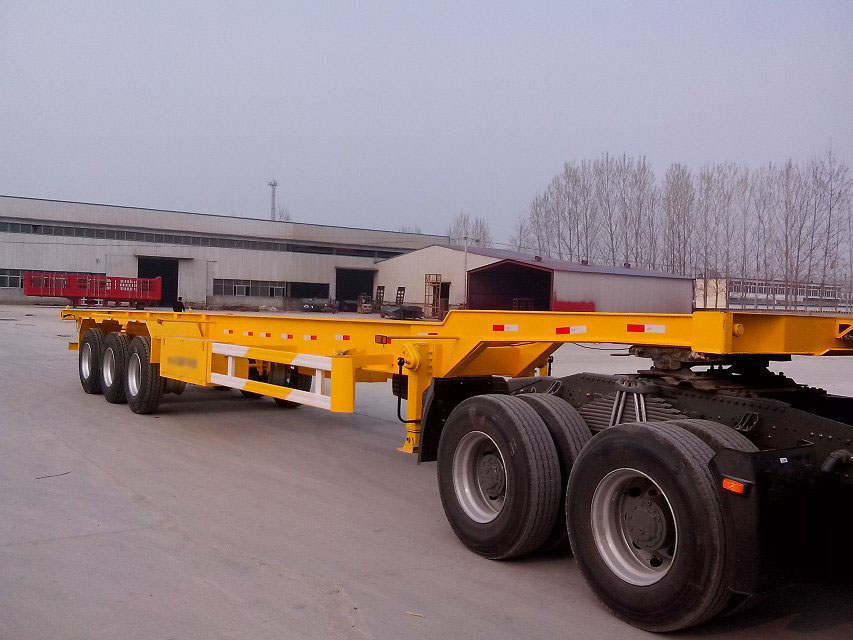

The main transport container can also transport lighter weight machinery, but the height must be reduced. The purpose determines the structure, load capacity, thickness of the frame, axles and tires of the vehicle.
1. Optional length: 20ft/40ft/45ft/53ft
2. Loading capacity: depends on customer requirements:
3. Girder: I-beam (upper + vertical plate + lower), cross beam (channel steel), side beam (channel steel)
4. Axle: It is the axle, connected through suspension; FUWA (American product), BFW (German product), JOST5. Suspension: used for shock absorption, including mechanical suspension (heavy but low price) and air suspension (Heavy and light, better shock absorption, expensive)
6. Tires: tubeless tires (radial tires) and steel wire tires
7. Outrigger: supports the front part of the trailer, single action is better than linkage:
8. Locks: According to the size of the container the customer wants to transport, at least 4, and 12 as standard;

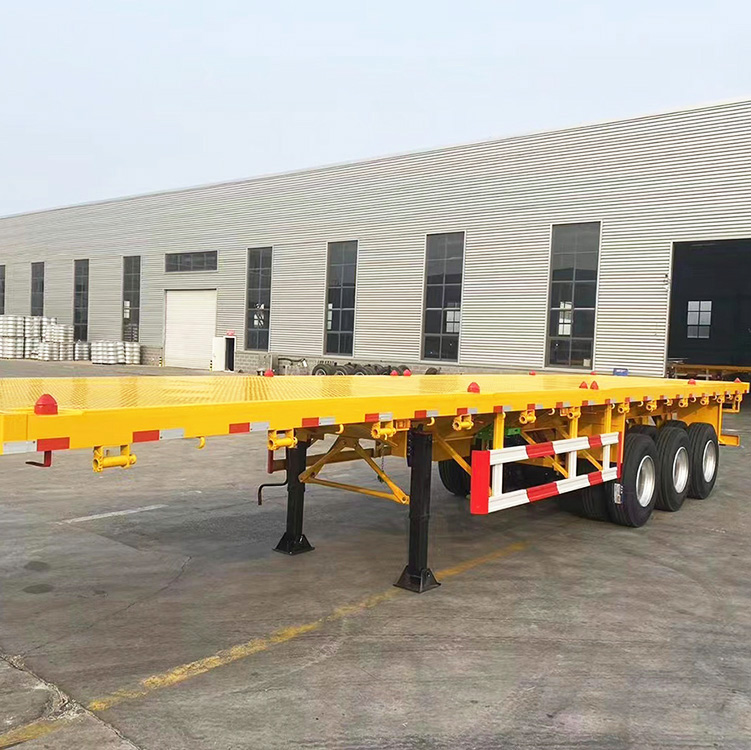

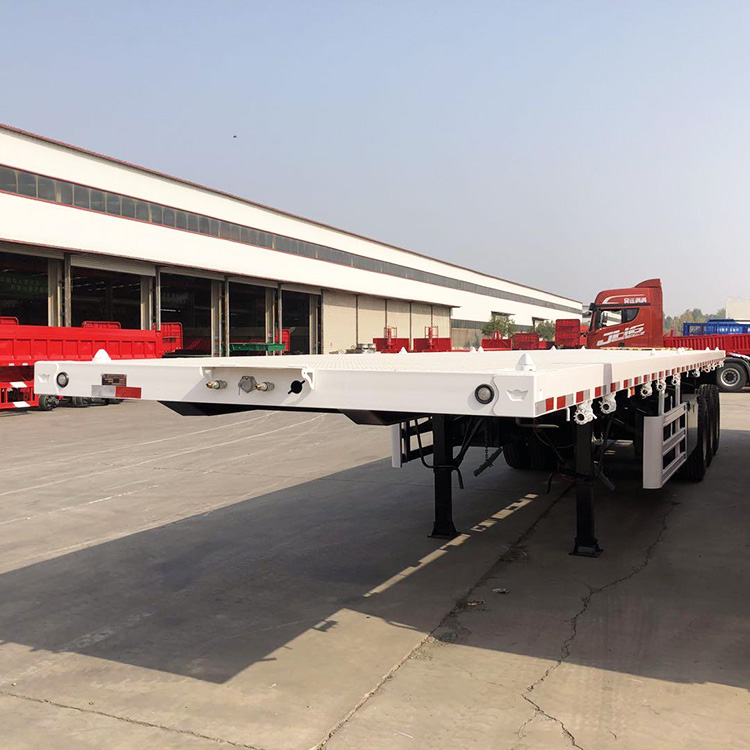

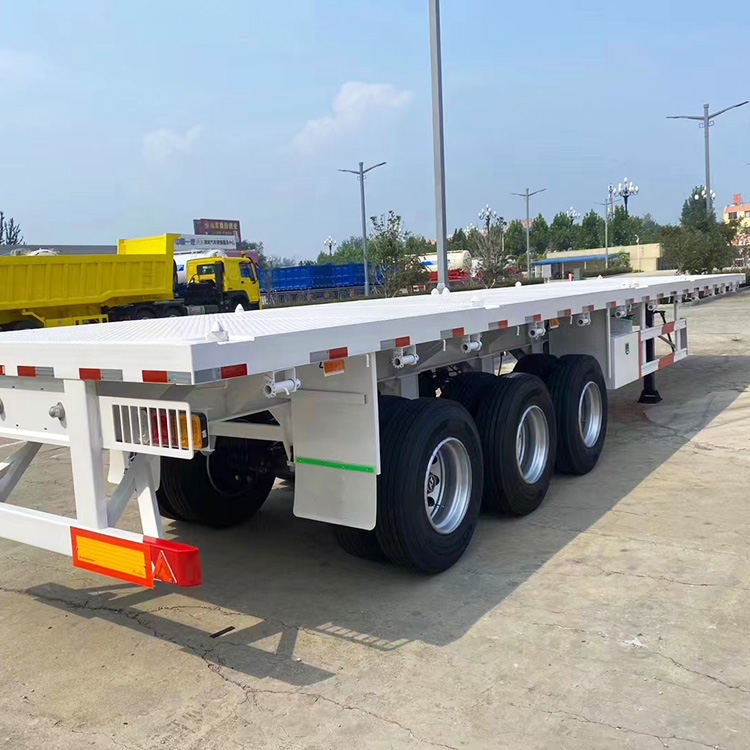

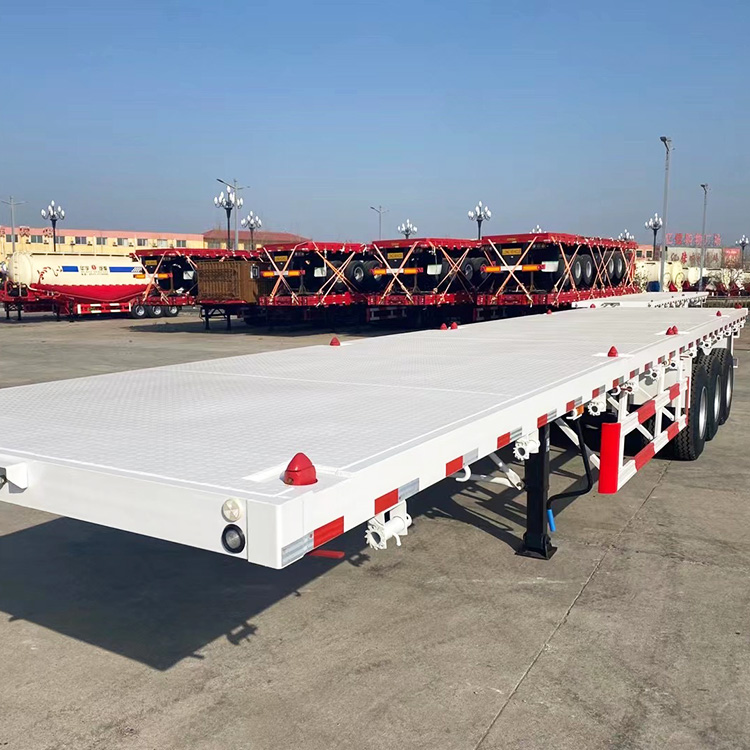

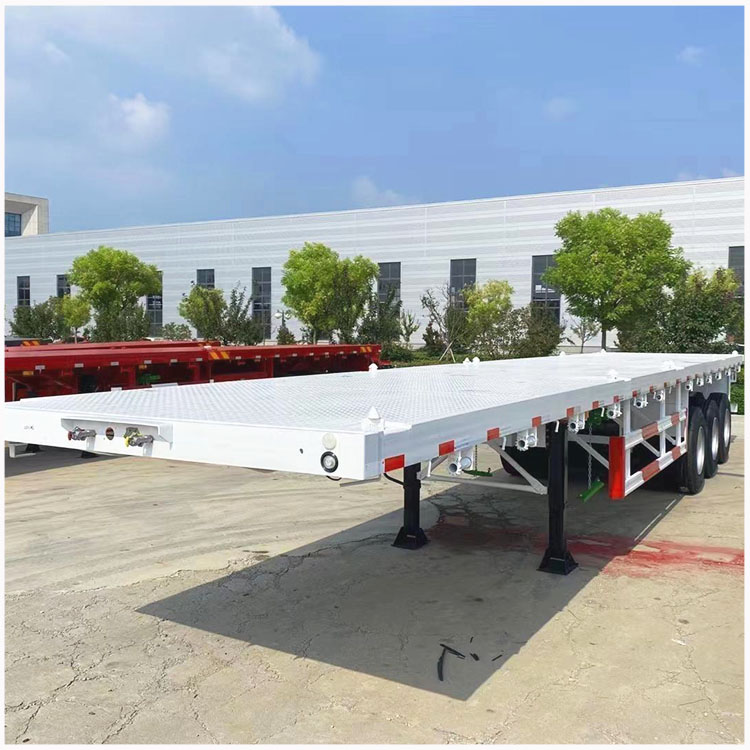

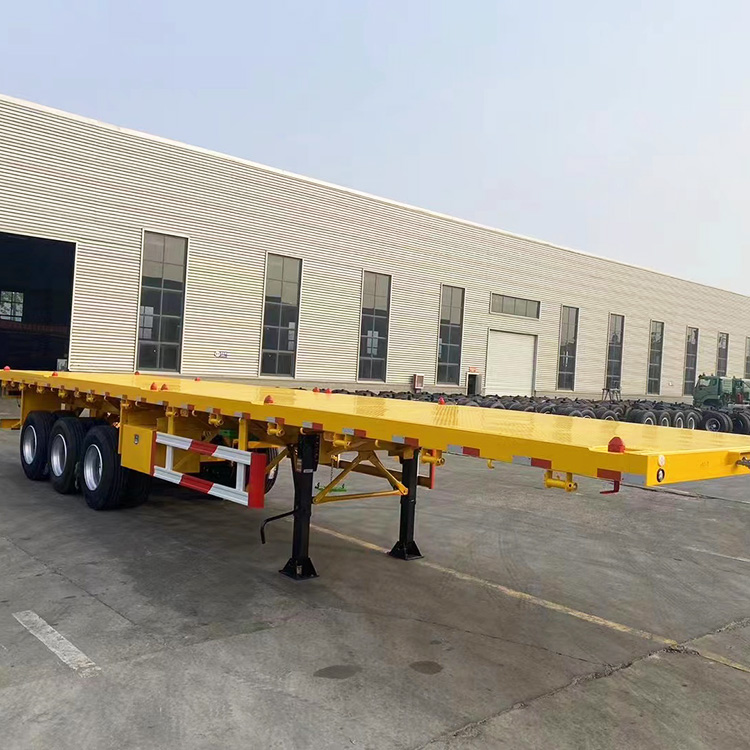

| Flatbed Semi Truck Trailer Technique Dates | |
| Dimension (mm) | 12400mm*2480mm*1480mm or customized size |
| Tare Weight | 6.5-7Ton |
| Payload | 40T-60T |
| Main Beam | Q 345 Carbon Steel, Beam height 500 mm, Upper plate 14 mm, Down plate 16 mm, Middle plate 6/8 mm |
| Platform | 3mm checkered Plate |
| Twist Locks | 4 pcs or 8 pcs or 12 pcs container lock |
| Axles | 13T16P 2/3/4 pcs, BPW or FUWA etc. |
| Leaf Spring | 90*13-10 4/6/8 sets, Funiu or Taiyue etc. |
| Suspension system | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| Tire | 12R22.5-18, 12 pcs |
| Landing Gear | Standard 28Ton, JOST brand or FUWA etc. |
| Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two 40L air tanks, ABS Optional |
| Electrical system | 1. Voltage:24V， LED lights 2. Tail lamp with turn signal, brake light & reflector, side lamp etc. 3.Receotacle: 7 wire |
