Product Description
Container transport semi-trailers can transport containers and non-dangerous goods tank container structures. The subjective structure of the car is a straight beam or a small gooseneck style on the front neck. Mainly used in logistics systems supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.
Advantage:
1. Specially used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength.
2. When using containers to transport goods, the goods can be loaded directly at the shipper's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles or ships midway, there is no need to take the goods out of the box and change them.
3. It can be quickly loaded and unloaded, and can be directly and conveniently changed from one means of transportation to another.
4. It facilitates the filling and unloading of goods to meet the individual needs of customers. The tooling is guaranteed according to customer needs, with stable quality and reliable performance.
1.Factory direct sale
2.Our products can be customized for various needs.And customizable unique company logo is available.
3.Cutting edge automation equipment adopted in the factory.Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared with traditional manual ways.
4.Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process.

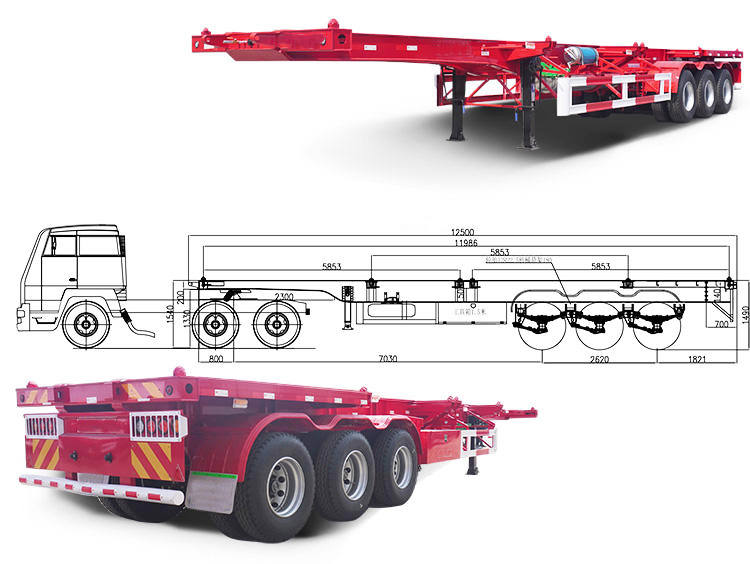

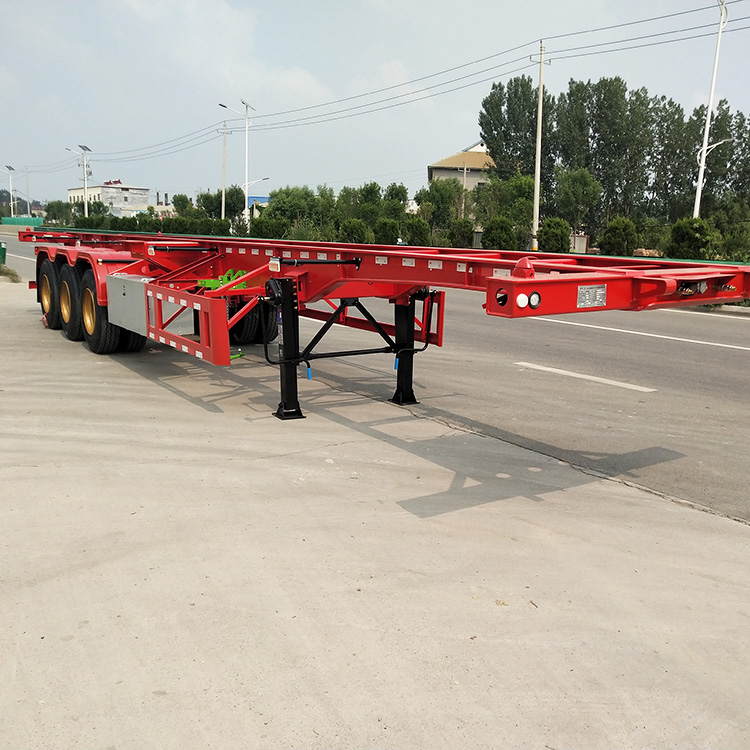

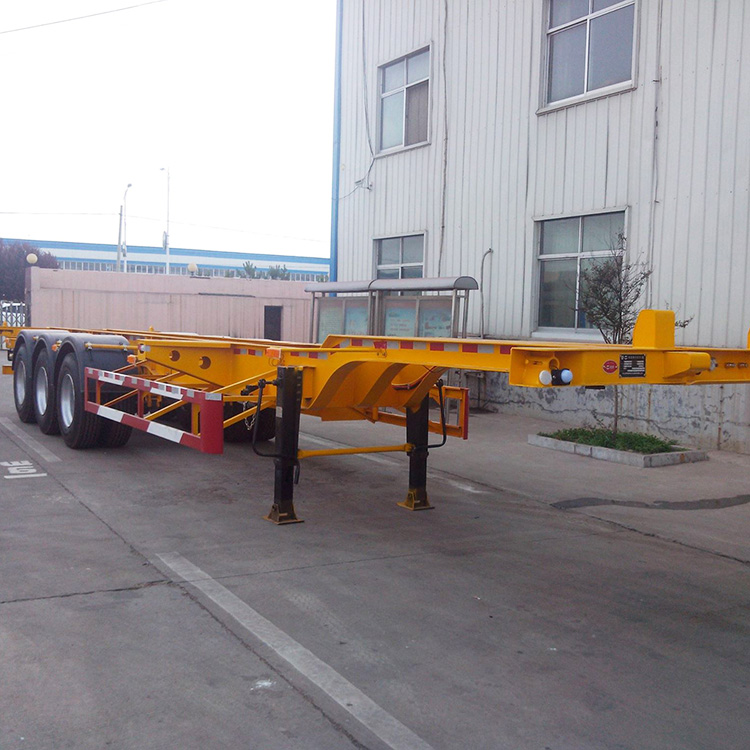

| 3 axles skeleton semi trailer | |
| Brand | HSTAR |
| Size | 12500*2500*1500 (mm) |
| Payload | 50000KG |
| Main beam | Heavy duty I beam |
| Axles | 3 * 13ton capacity (Brand optional) |
| Suspension | Mechanical suspension (Air suspension optional) |
| Leaf spring | 10pcs |
| Tire | 12R22.5 12pcs (Other size optional) |
| Rim | 9.00-22.5 12pcs (Other size optional) |

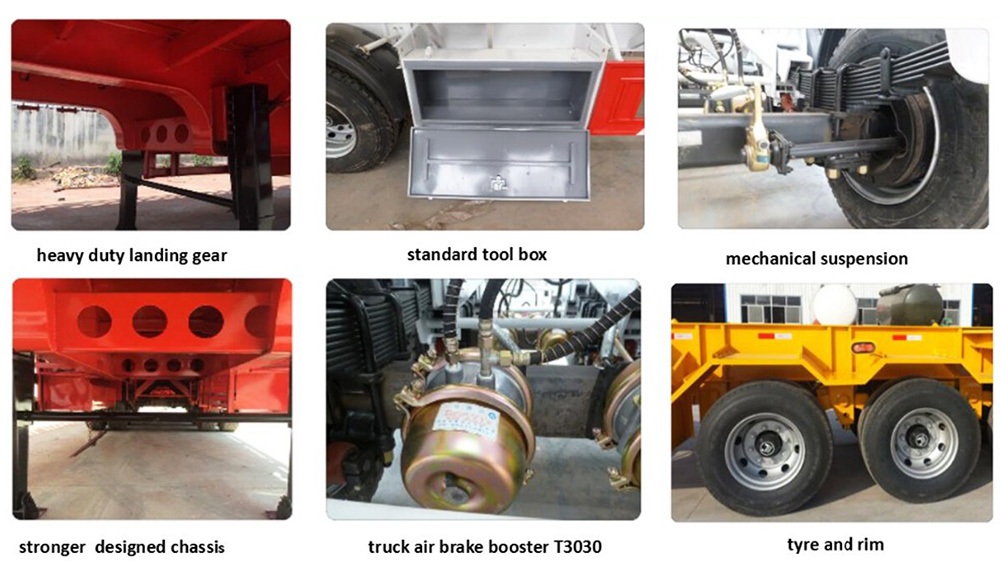

| Landing gear | 28 Ton two speed |
| Twist locks | 12 pcs |
| Braking system | Double air chamber ,brake valve,40L air tanks ;ABS optional |
| Electrical | LED light , 7 ways ,24V |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
Characteristic
* Finite Element analysis used in vehicle to promote product performance.
* Whole Trailer body electrophoresis Painting, resistance, painting effect can reach above 10 years.
* High strength full thickness Steel,titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
* 42 tough ribs design, Ensure the safety and carrying capacity of trailer.
* Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading.

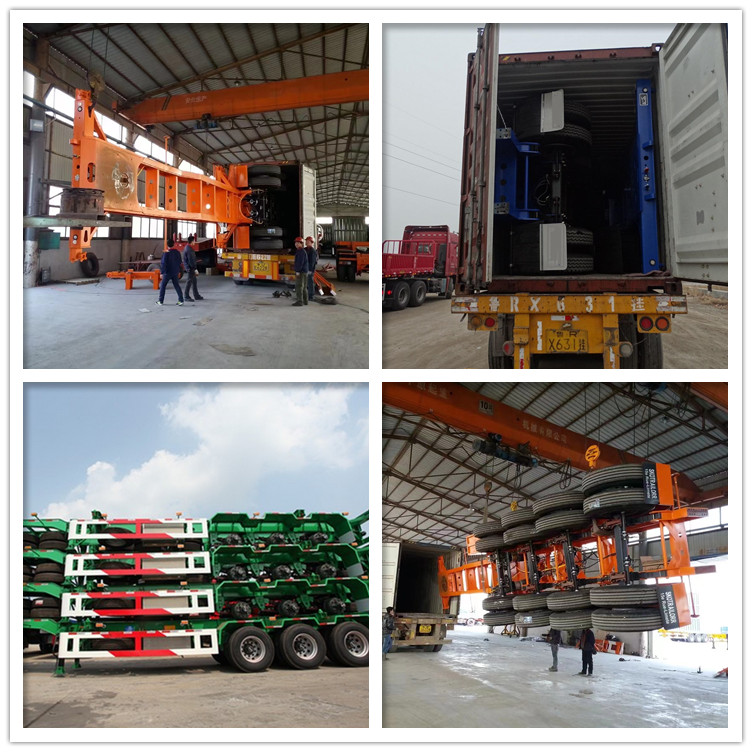

Shipping :
