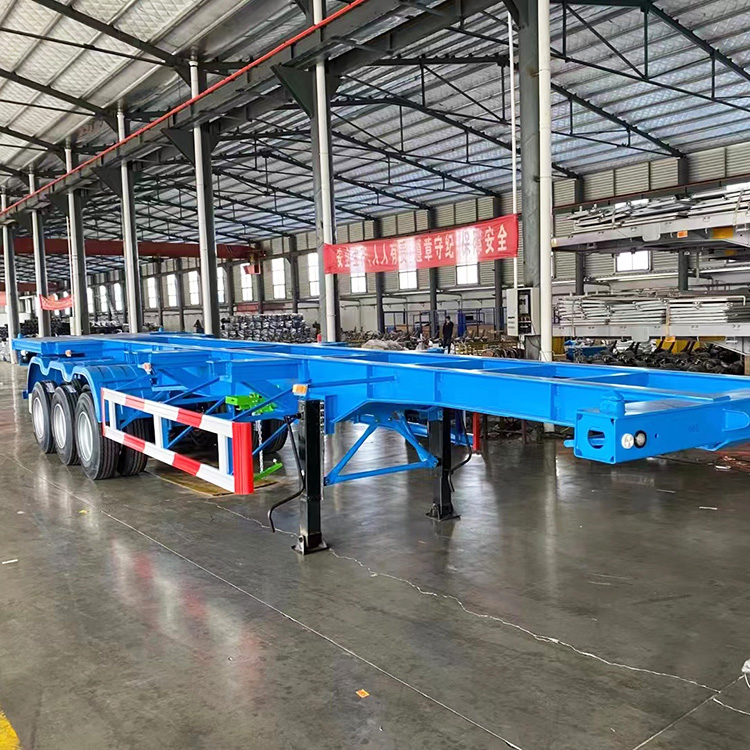

Product Description

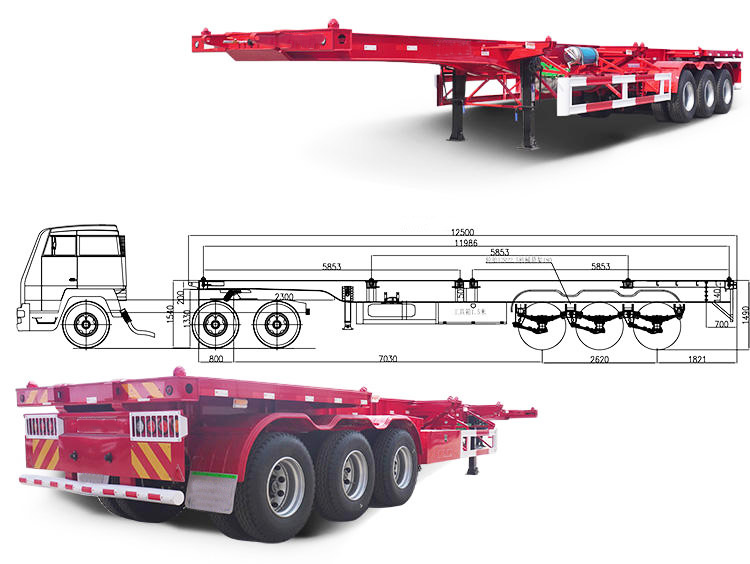

| Dimension | 12,500*2450*1450mm(According to customer demand) |
| Playload | 40,000kg |
| Tare weight | 65,000kg |
| Tyre | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
| Rim | 8.00-20/8.5-20/8.8-20 (Patent of electrophoretic paint) |
| King pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
| Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. |
| Side beam | 16mm-25mm channel steel (Material is Q235B carbon steel) |
| Cross beam | 80*40mm square tube(Material is Q235B carbon steel) |
| Twist lock | 12sets Enhanced international universal twist locks |

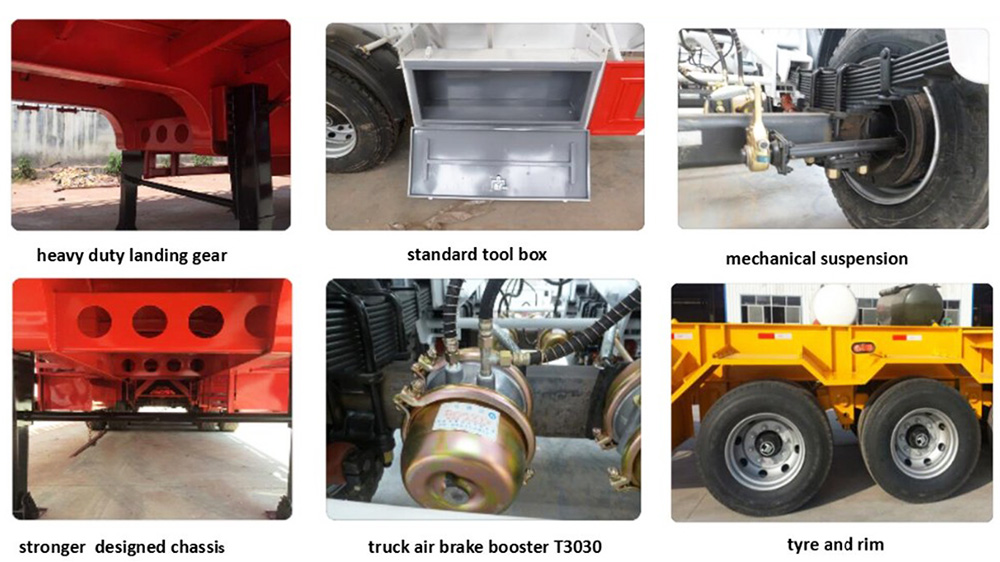

| Landing gear | JOST(D200T)or Yahua brand(two speed or single speed) |
| Axle | 13ton*3 axle FUWA/BPW/Fuhua brand |
| Suspension | mechanical suspension/air suspension |
| Brake chamber | 4 units T30/30 spring brake chambers,2 units T30 brake chambers |
| Emergency valve | WABCO/Fitness brand |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
| Tool box | 1set standard tool box( waterproof type) |
| Spare wheel carrier | 1 pieces( Patent type) |
| Accessory | A set of tools,An instruction manual |
| ABS system | Optional |
| Color | According to customer demand |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
