Product Details

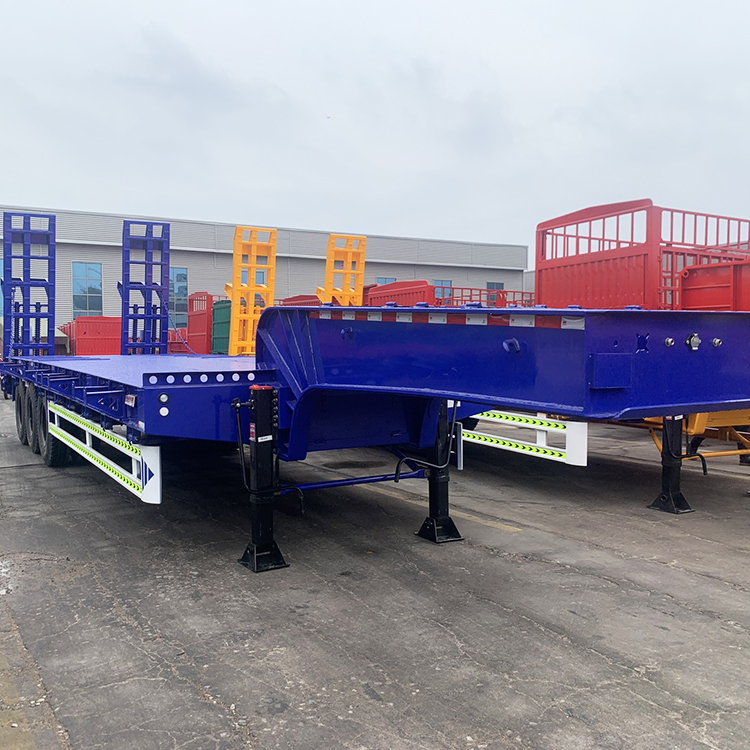

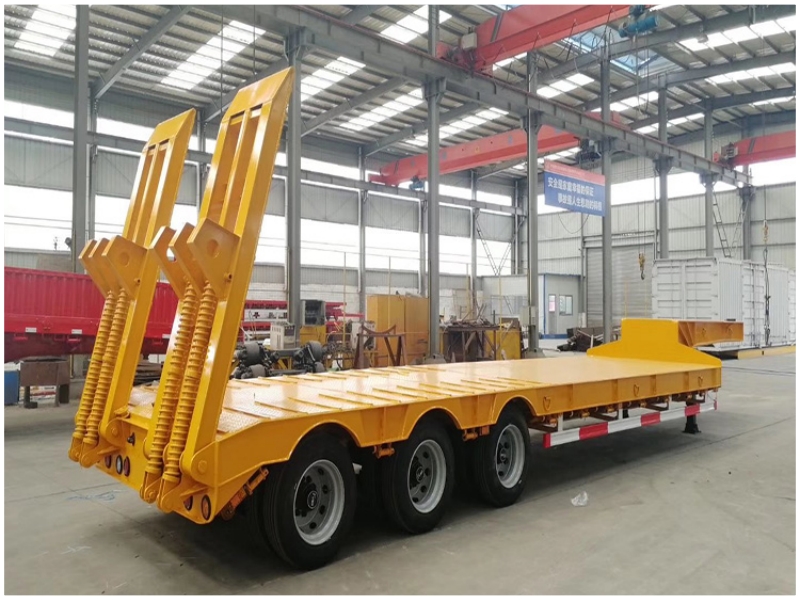

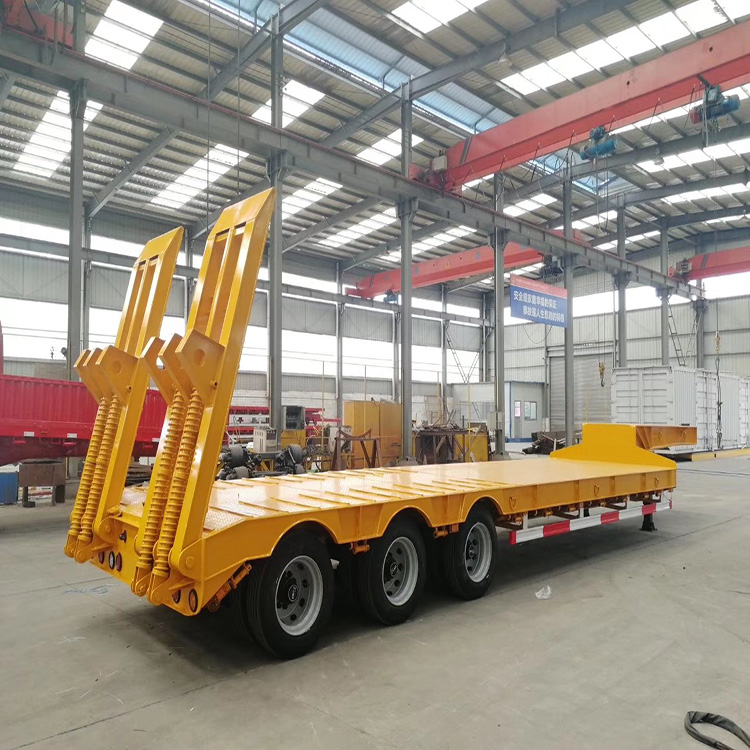

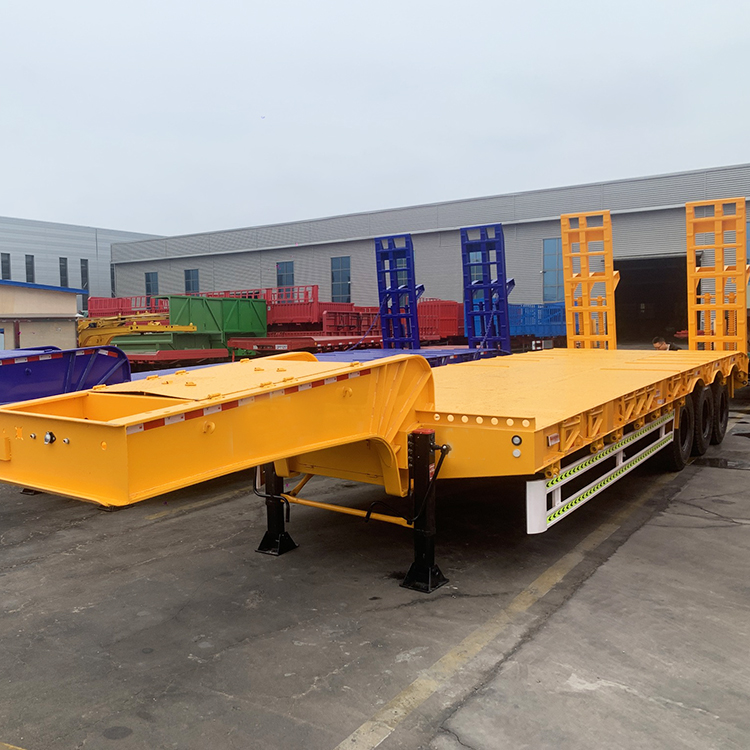

1.50T Low Bed Semi Trailer low plate semi trailers have flat, concave beam, and exposed tire structures, with a stepped frame and I-shaped longitudinal beam section, which have the characteristics of high stiffness and strength.
2. The main plane of the frame cargo platform is relatively low, ensuring smooth transportation and capable of carrying various construction machinery, large equipment, and steel.
3. Adopting color lead balance, dual axle balance,or rigid suspension, the mass balance block is installed between the front and rear steel plate springs, which can make the wind of the front and rear steel plate springs change equally and balance the front and rear axle forces.
4. Carbon dioxide gas inverter welding, the entire frame is shot blasted to make the vehicle more beautiful. The longitudinal beam telescopic low plate has a net stretching length of 315 meters, solving the problem of transportation difficulties for large and ultra long items.

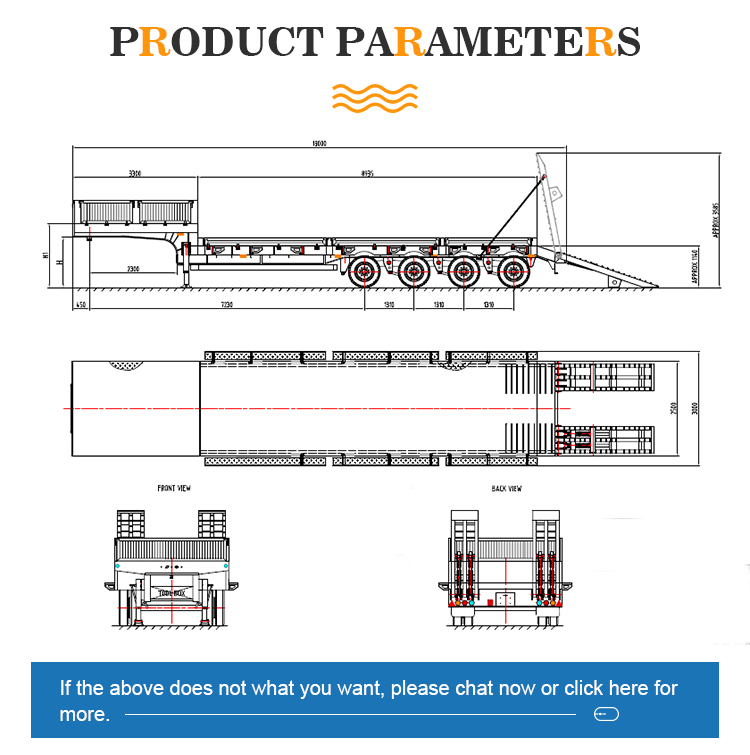

| Overall Dimension | 15200mm*3000mm*1600mm |
| Flatbed Dimension | 11000mm*3000mm |
| Tare Weight | 10630kg |
| Pay Load | 64ton |
| King Pin Setting | 800mm |
| Rear Overhang | 1550mm |
| Wheel Base | 10530mm+1310mm+1310mm |
| Loading Surface Height | 1470mm |
| Suspension | Tri-axle With Air suspension |
| Axles | FUWA 13T capacity |
| Main Beam | The height of the beam is 500mm Upper plate is 16mm Down plate is 18mm Middle plate is 10mm |
| Landing Gear | Single side operation or double side operation, Static capacity 30Ton |
| Flatbed Floor | Checkered sheet, thickness 4mm |

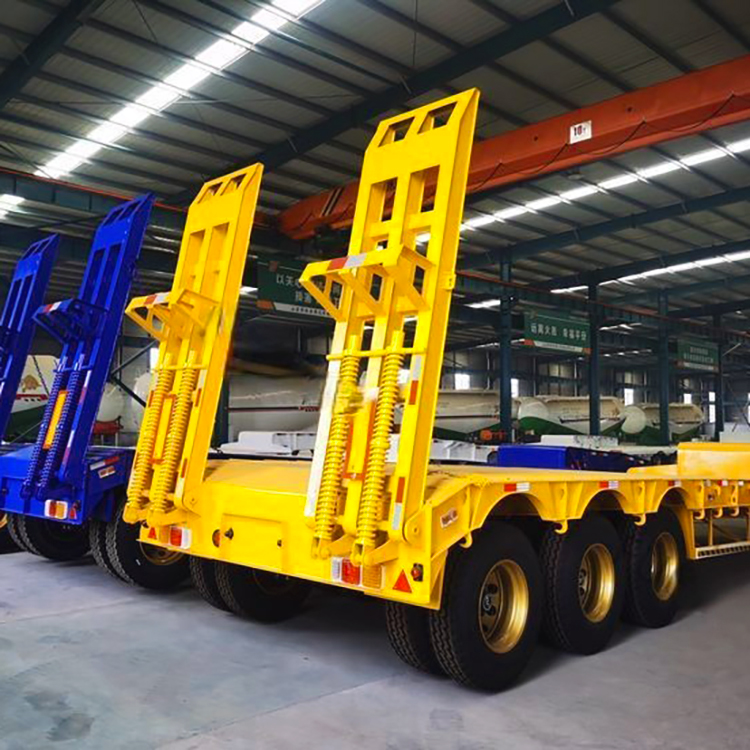

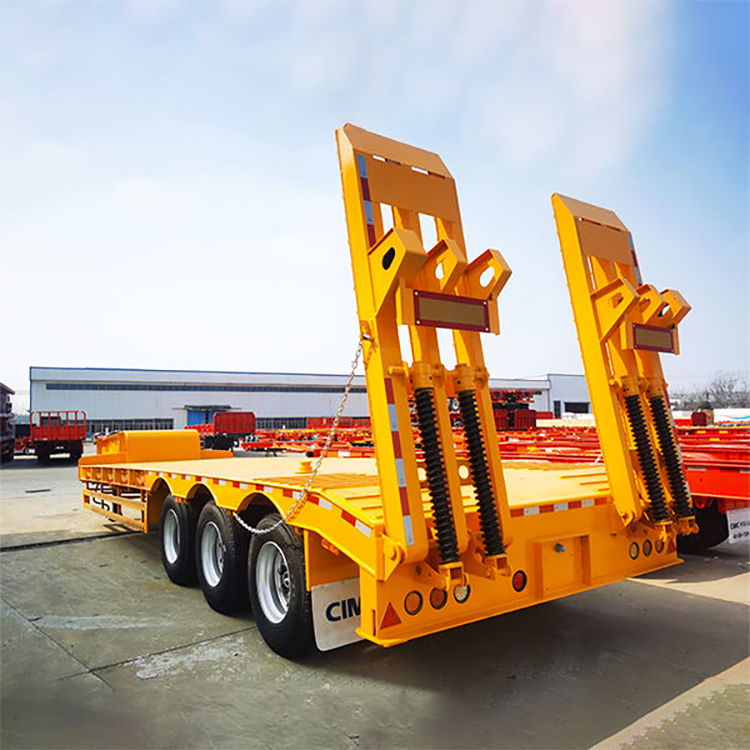

| Rear Ladders | Spring power-assisted |
| Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
| Tires | 825R16 12units |
