Product description
Lowboy trailer also known as low bed semi trailer, low loaders, lowboy truck. It's widely used in heavy machines transportation. To meet each customer's different requirements, all Lander lowboy trailer can be customized. Frequently sold lowboy trailer types are listed as following:
Lowboy trailer loading capacity:
– 2 axles low bed semi trailer capacity: 20-40 ton
– 3 axles low loader trailer capacity: 40-70 ton
– 4 axles low bed truck trailer loading capacity: 70-90 ton
Lowboy semi trailer dimension:
– 2 axles low bed trailer truck dimensions: 13000x3000x1750/1250 mm
– 3 axle low loader trailer measurements: 13500x3000x1700/1250 mm
– 3 axle heavy duty low bed trailer standard size: 14000x3000x1750/1250 mm

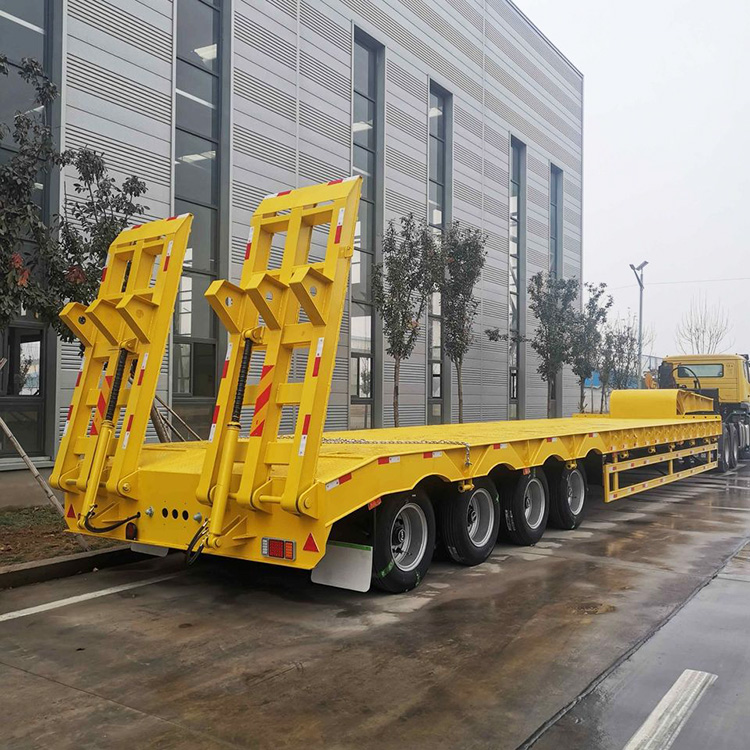

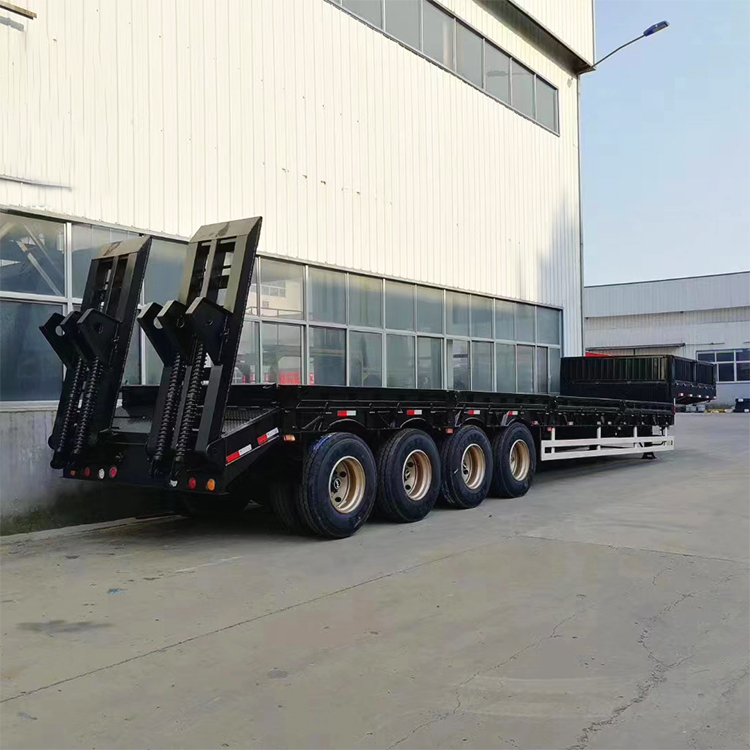

4 axles lowboy semi trailer 80 ton payload

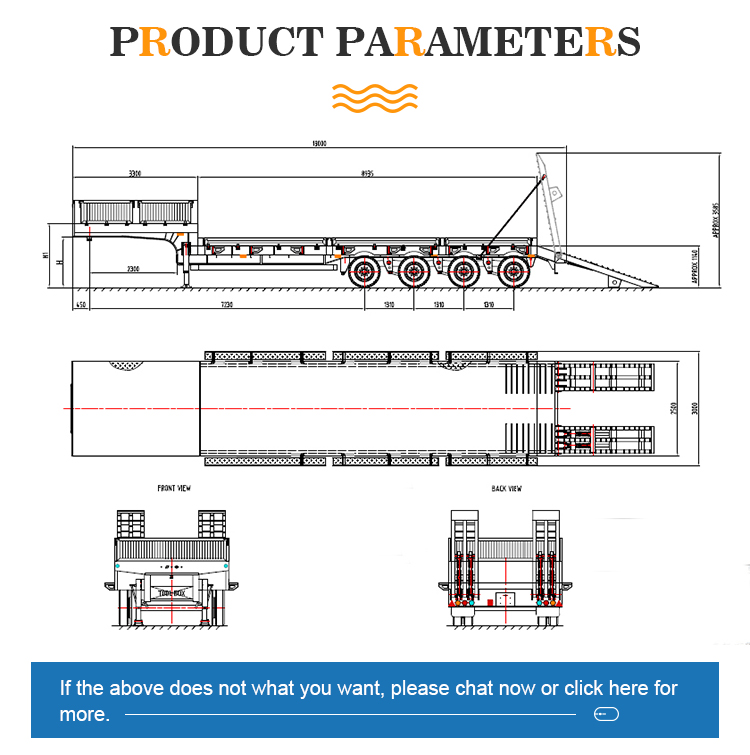

Specifications
| Dimensions | 14000*3000*1750 mm |
| Payload | 80 ton |
| Axle | 16 ton, 4 axle, Zhengyang brand |
| Tyre | 11.00R20; 12R22.5 |
| Suspension | Mechanical suspension |
| Leaf spring | 90mm*16mm*10 layers |
| Landing gear | 20 ton, two-speed |
| King pin | 2.0'' or 3.5'' bolt-in type |
| Floor | 5 mm thick checkered plate |
| Ladder | Mechanical ladder |
| Light | LED light |
| Color | Optional |
Product advantages
Hstar lowboy trailers adopt high strength steel for main beam to guarantee better carrying capacity.
We use "H" steel side beam, lowbed trailer is not easy to be deformed when heavy load.

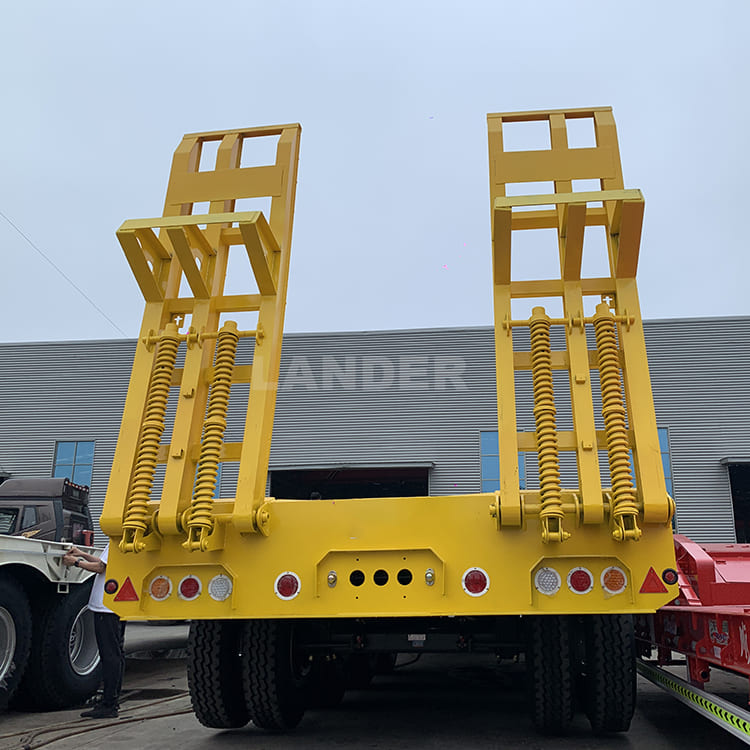

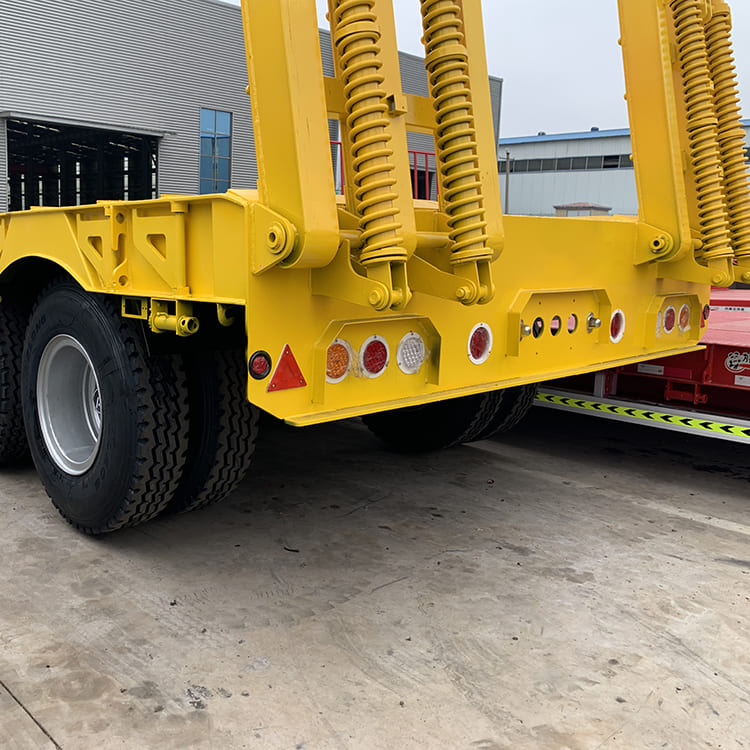

Our lowboy semi trailer use high quality ladder, ensuring heavy equipment can pass smoothly.
Hstar low bed trailer adopts 5mm thickness diamond plate. It's much stronger and durable.
add widener for lowboy trailer to expand widthwell-known JOST landing gear

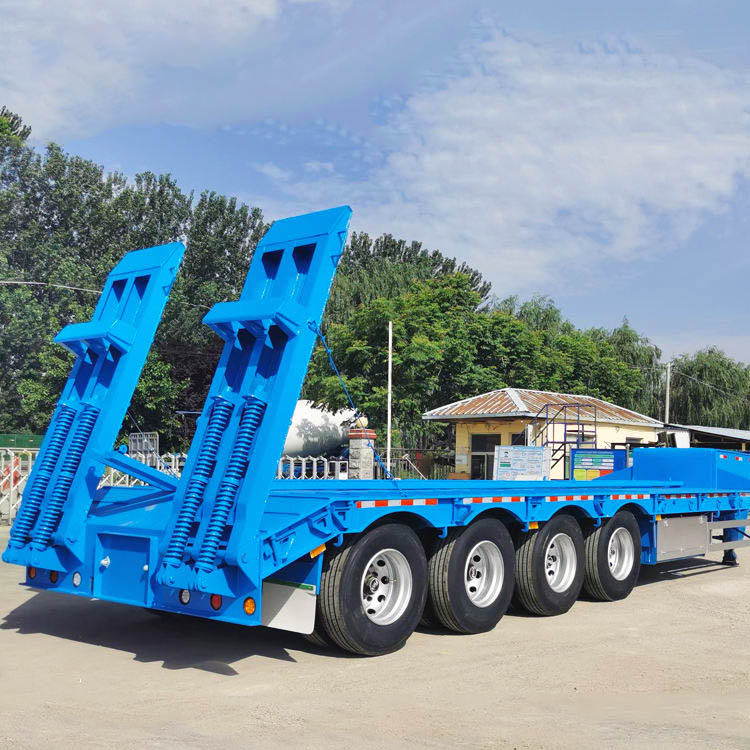

4 axles 80 ton lowboy semi trailer for Nigeria
