Product Details

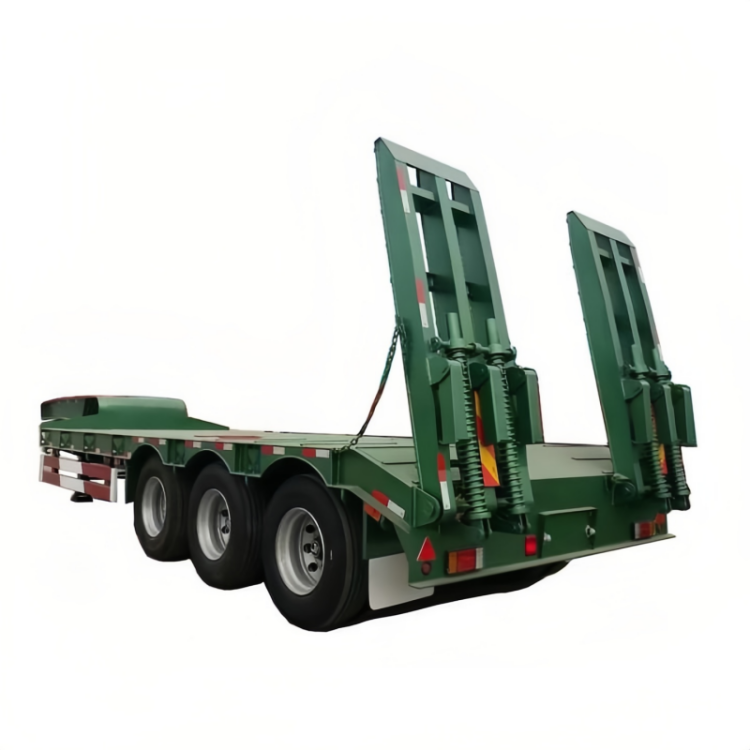

Low-bed semi-trailers are usually used to transport heavy-duty vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) ) and other heavy-duty goods, the lower the center of gravity, the better the stability and safety, and the stronger the ability to transport over-height goods and pass overhead obstacles.

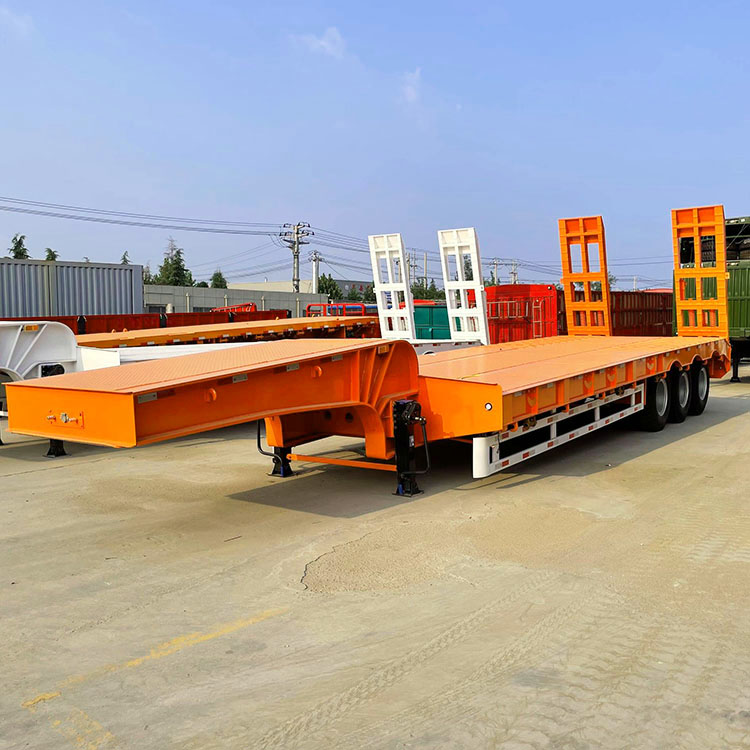

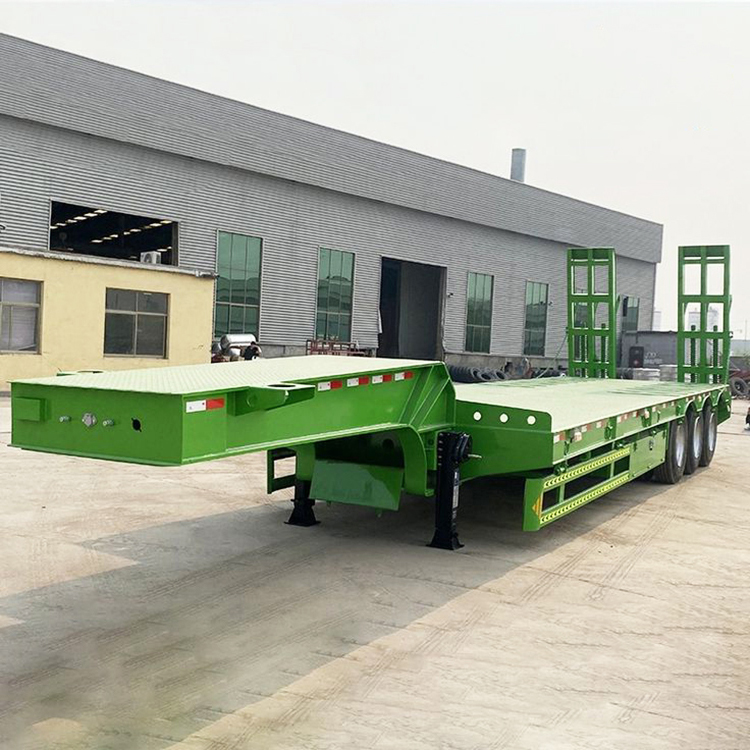

Low-bed semi-trailers usually use a concave beam (or well-type) frame, with the front section of the frame being a gooseneck (the traction pin in the front section of the gooseneck is connected to the traction saddle on the tractor, and the rear end of the gooseneck is connected to the semitrailer frame connected), the middle section is the cargo platform (the lowest part of the frame), and the rear end is the wheel frame (including wheels).

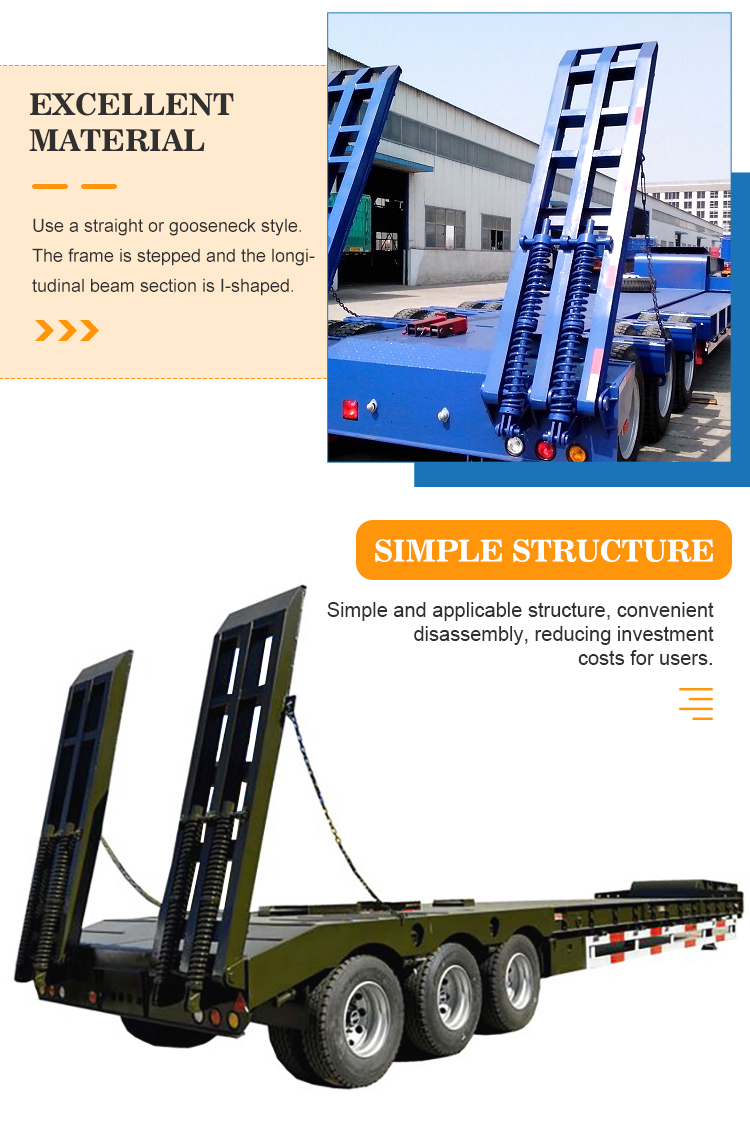

▪Use a straight or gooseneck styleThe frame is stepped and the longi-tudinal beam section is I-shaped.
▪Simple and applicable structure, convenientdisassembly,reducing investmentcosts for users.

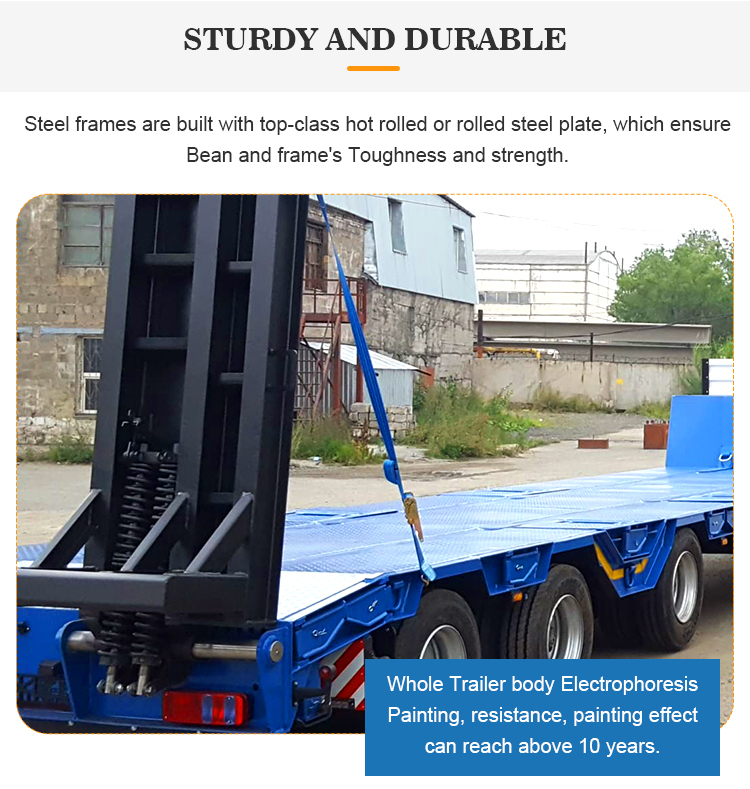

▪Steel frames are built with top-class hot rolled or rolled steel plate, which ensureBean and frame's Toughness and strength.

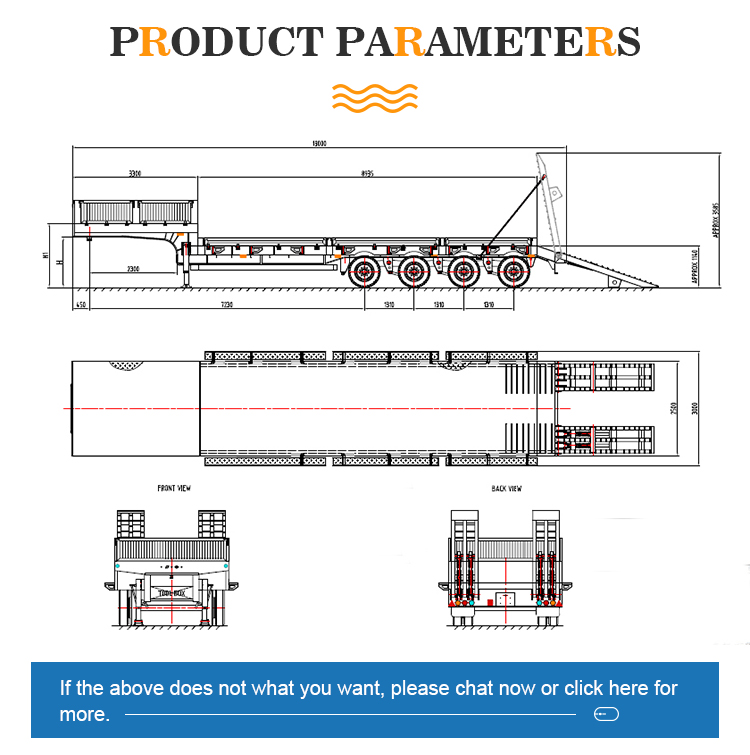

| Item | Value |
| Size | 13000*3000*1600mm |
| Max Payload | 80 Ton |
| Axle | 3 line 6 axle |
| Suspension | Mechanical Suspension |
| Function | Transport Heavy Duty Equipment |
| Landing Gear | 28t Heavy Duty Landing Gear |
| Loading capacity | 40-80T |
| Leaf Spring | 90(W)mm*13(Thick)mm*10 Layer |
| King pin | 2"(50mm)or3.5"(90mm) JOST |
| Tire | 315/80R22.5, 12 pcs |
| Color | Customer's requirement |

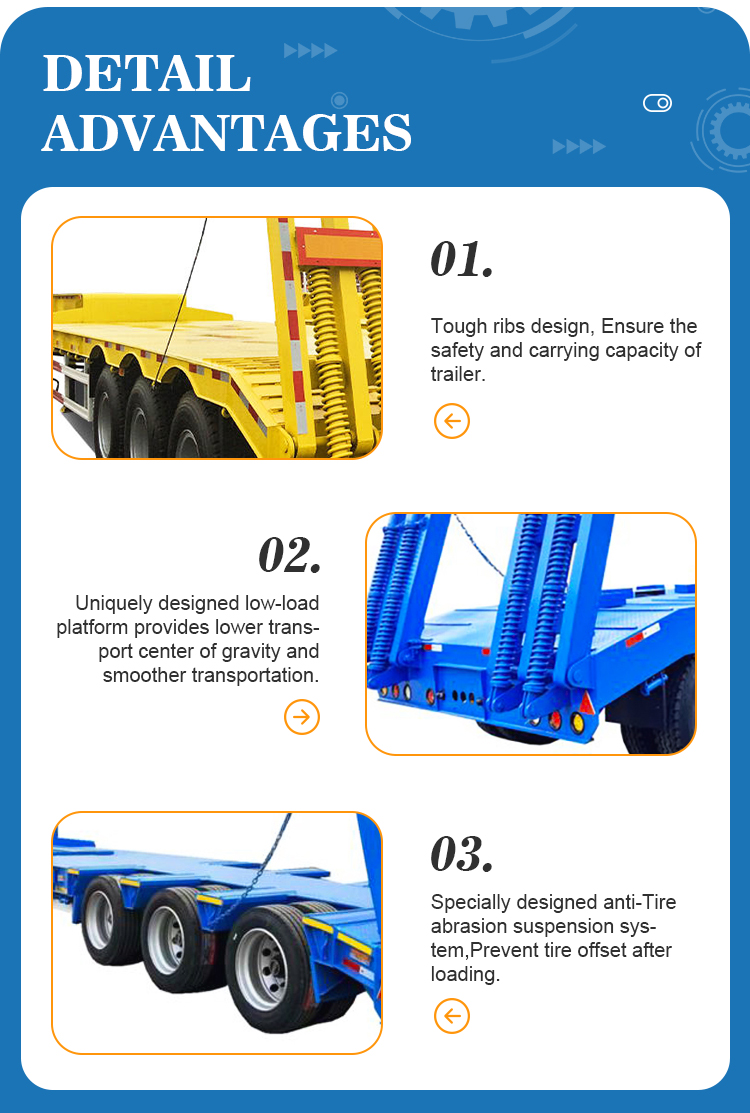

01.
Tough ribs design, Ensure thesafety and carrying capacity oftrailer.
02.
Uniquely designed low-loadplatform provides lower trans-port center of gravity andsmoother transportation.
03.

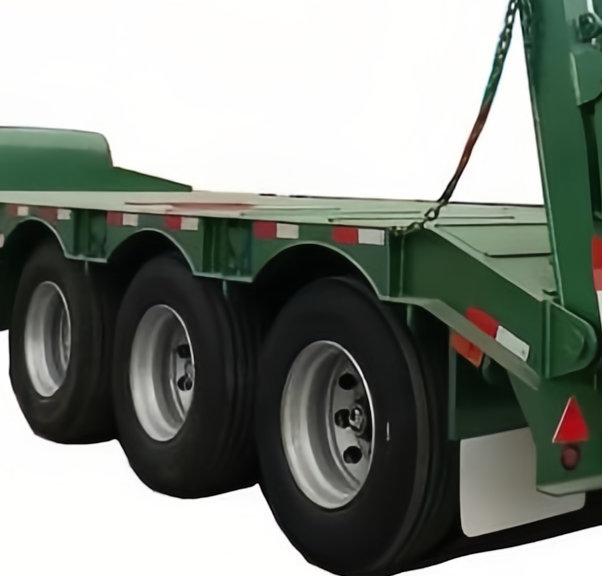

Specially designed anti-Tirearasion suspension sys-tem,Prevent tire offset afterloading.
