Product Description
Low bed trailer is also known as lowboy trailer, low loaders. It mainly used to transport heavy equipments, such as excavator, crane and other construction machinery. Lowbed truck trailer is very popular with abnormal haulage industry.
The loading capacity and dimension of low bed semi trailer both can be customized according to customer's requirements. From 60 ton payload to 150 ton payload.

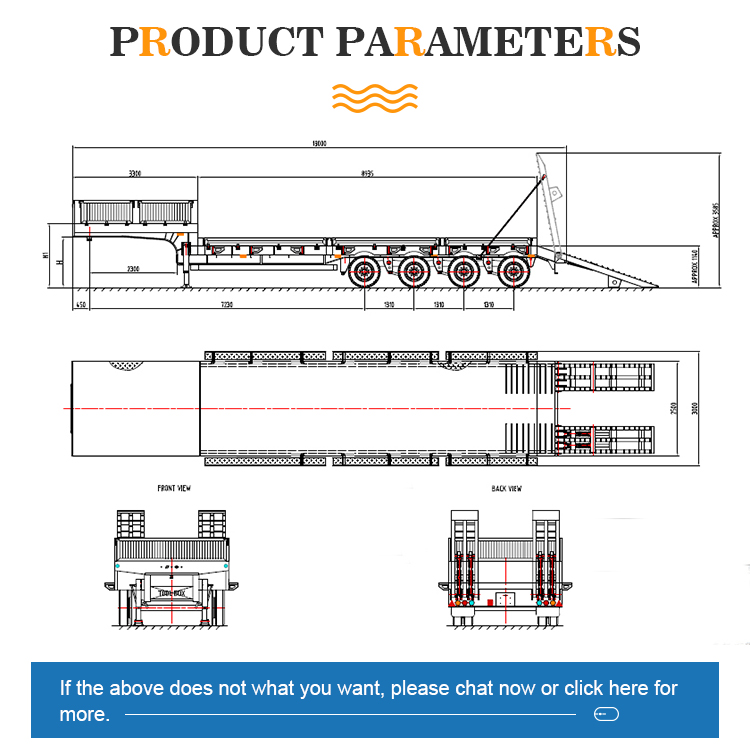

Specification

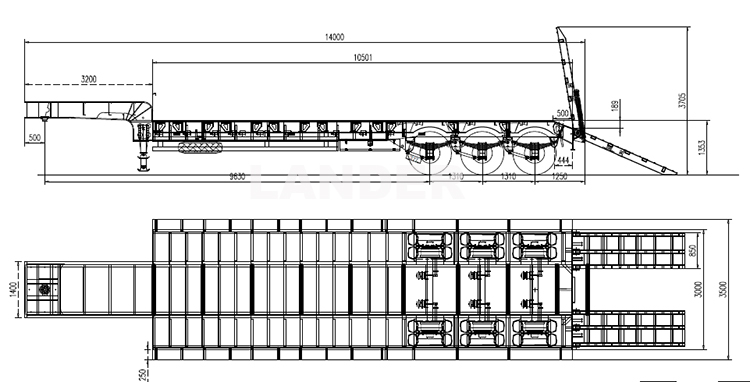

| Dimension | 13000*3000*3400 mm |
| Payload | 60 ton; |
| Bottom plate | 4 mm thick checkered plate |
| Axle | 13 ton, 3 axle |
| Suspension | mechanical suspension |
| Leaf spring | 90mm*16mm*10 layers |
| Tire | 12R22.5; 11.00R20; 315/80R22.5 |
| King pin | 2.5 or 3.5 inch |
| Landing gear | 28 ton, two-speed |
| Color | customer's requirement |
Advantages
1. "H" strcture main beam with high stiffness and strength.
2. The lower work surface ensures smooth transportation.
3. Adopt world famous axles brand, such as Fuwa, BPW.
Product images

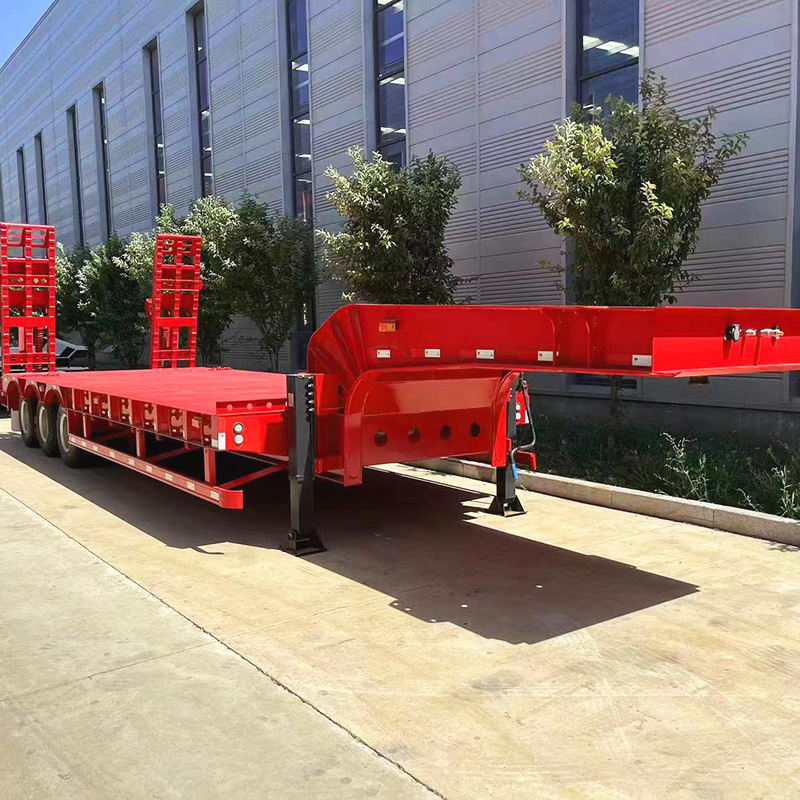

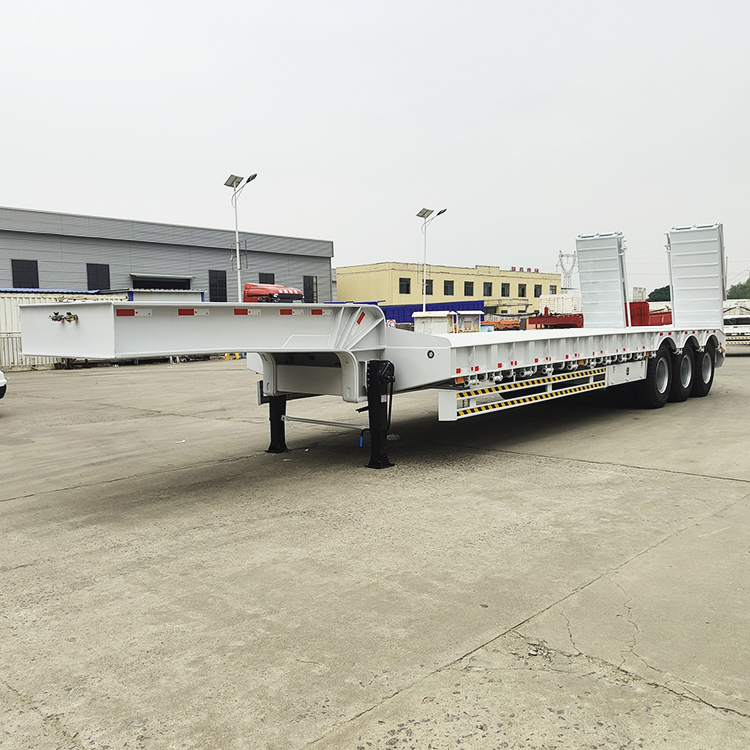

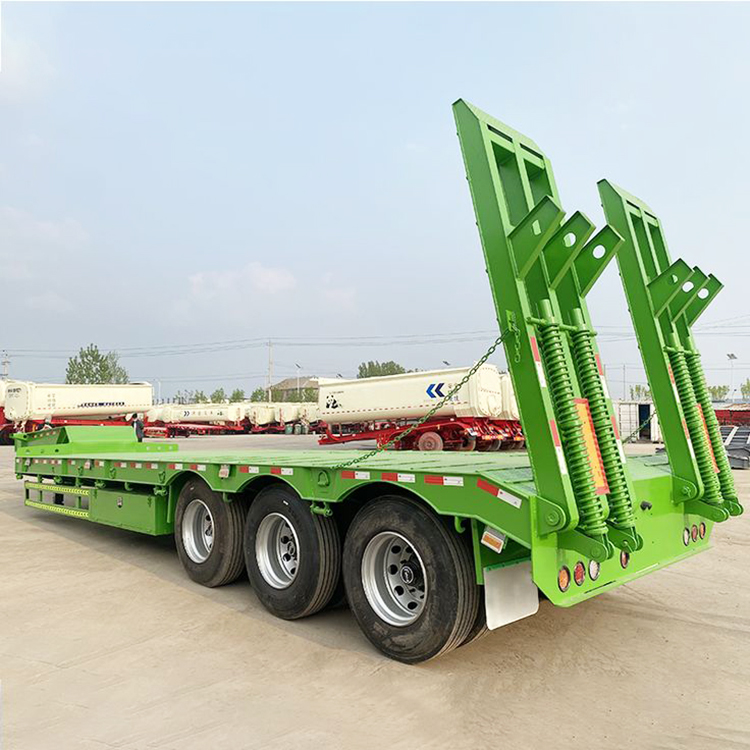

tri axle heavy duty low boy truck trailers

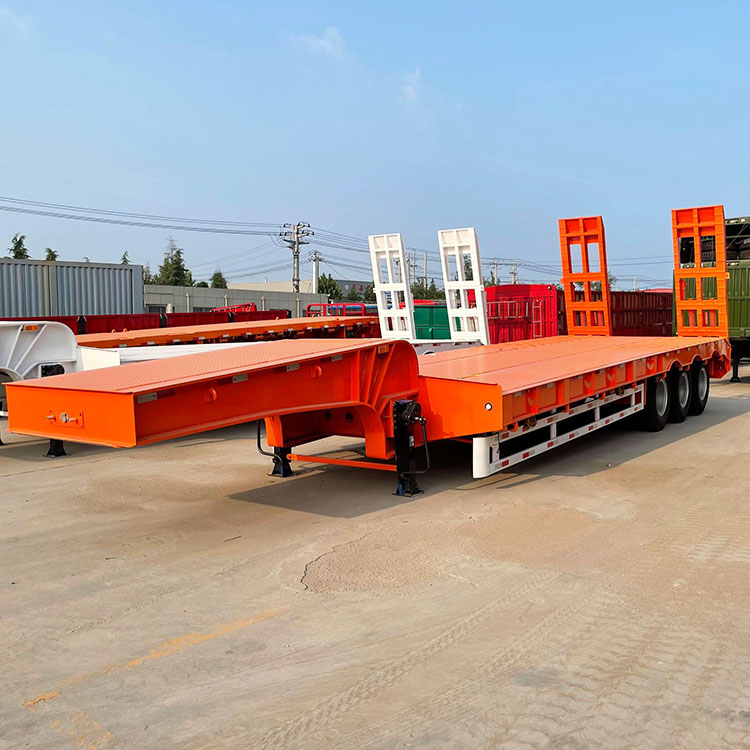

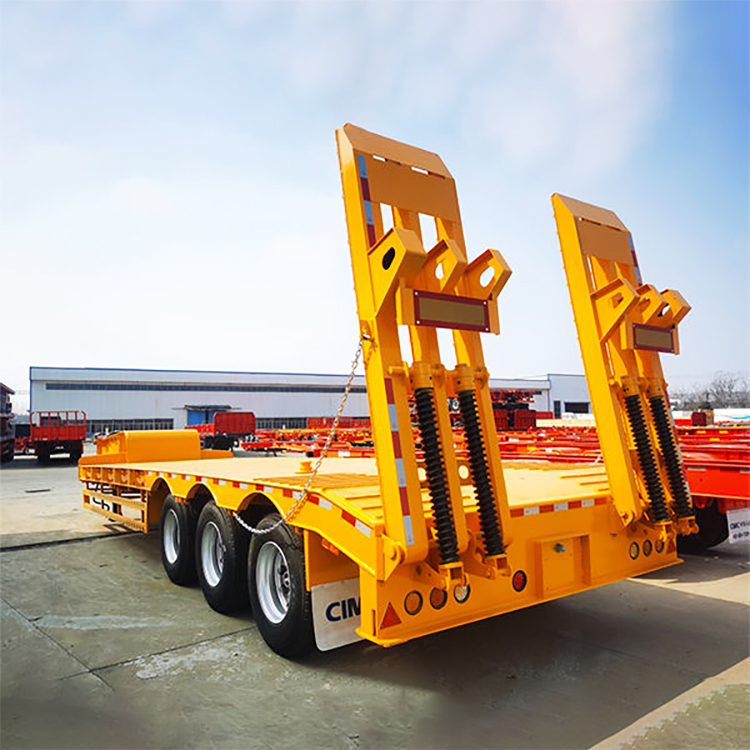

3 axle low bed truck trailer with 60 ton payload
