Product Description

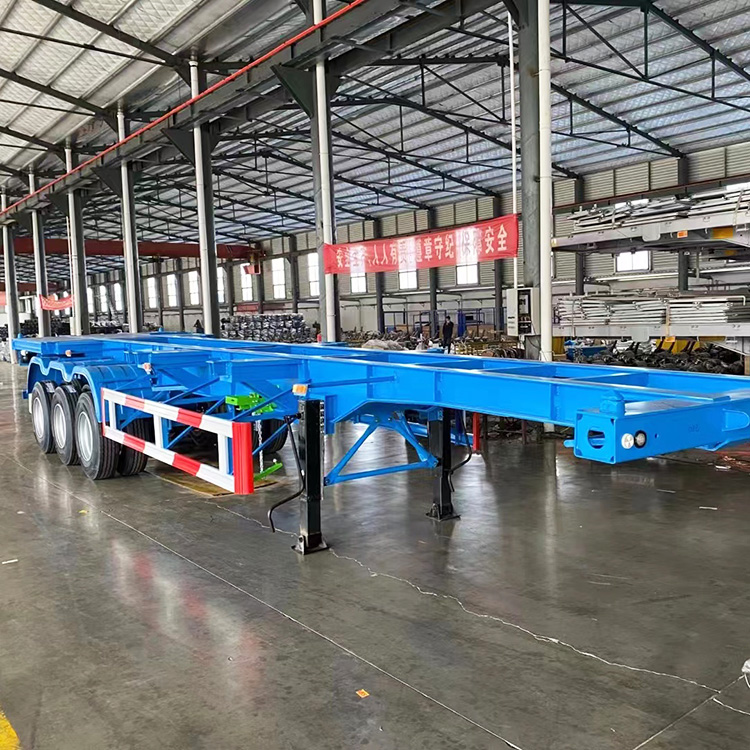

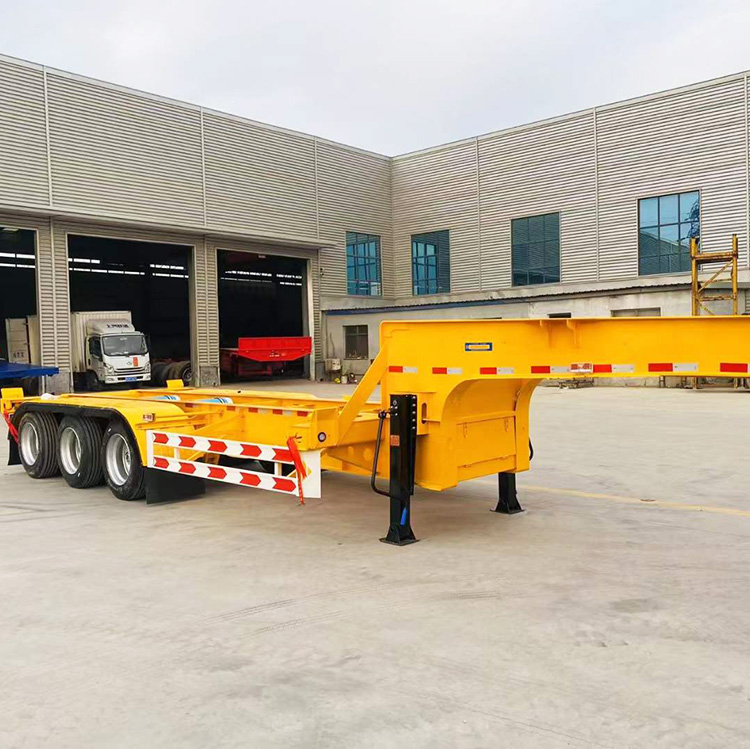

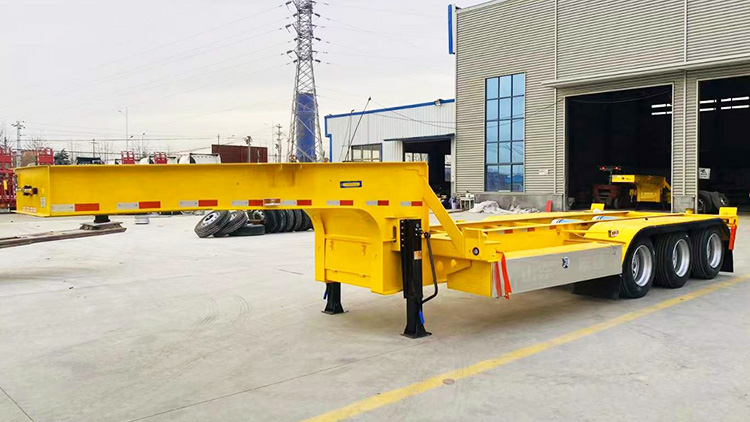

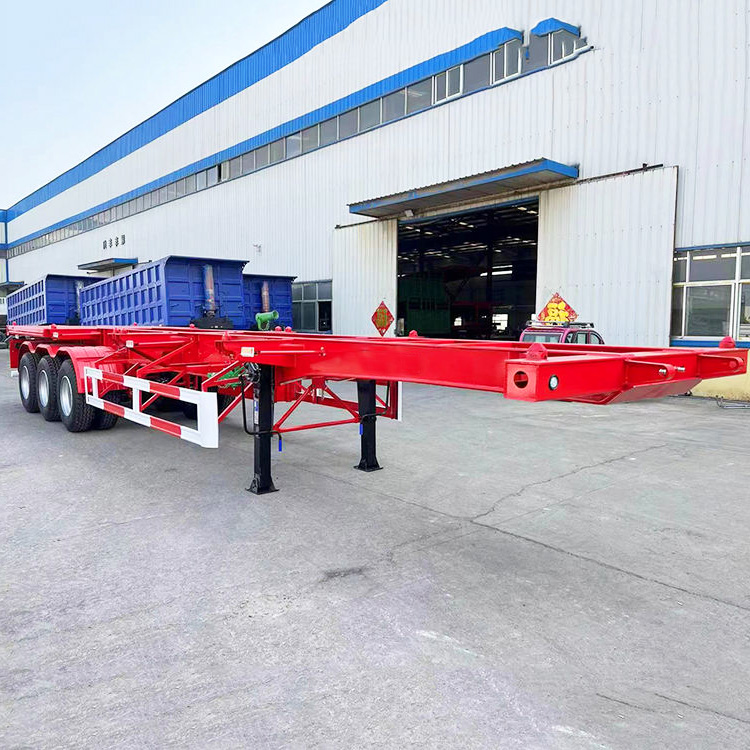

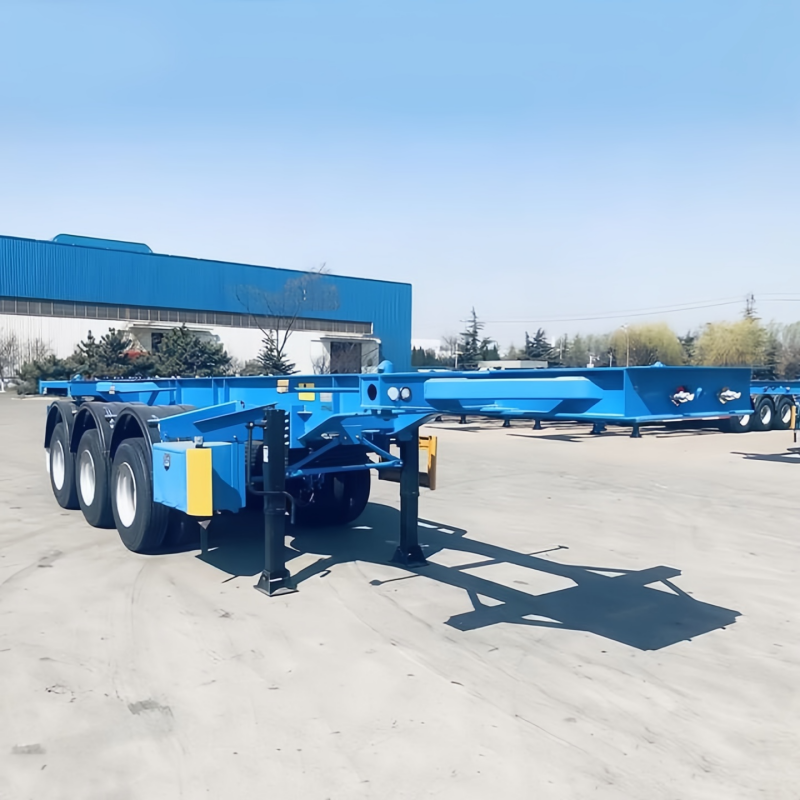

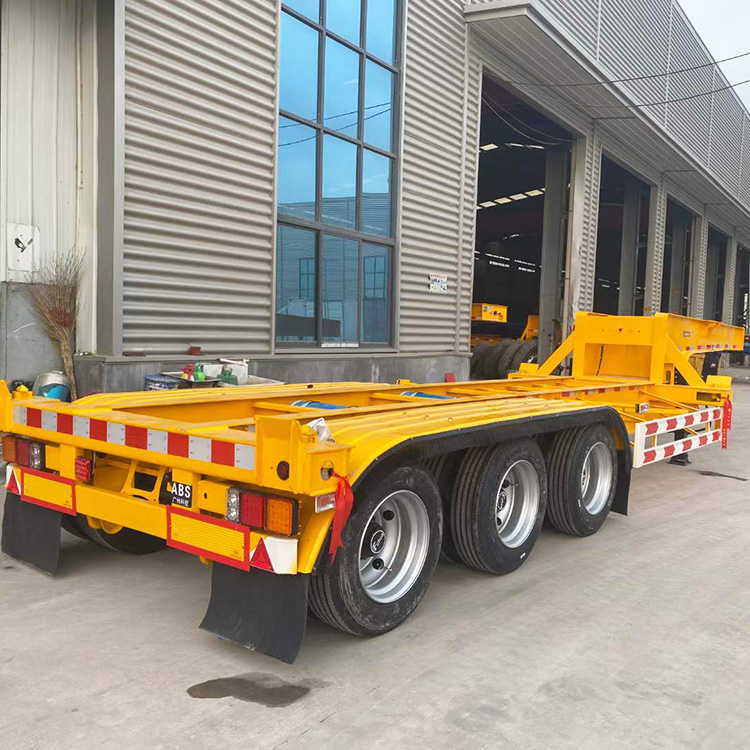

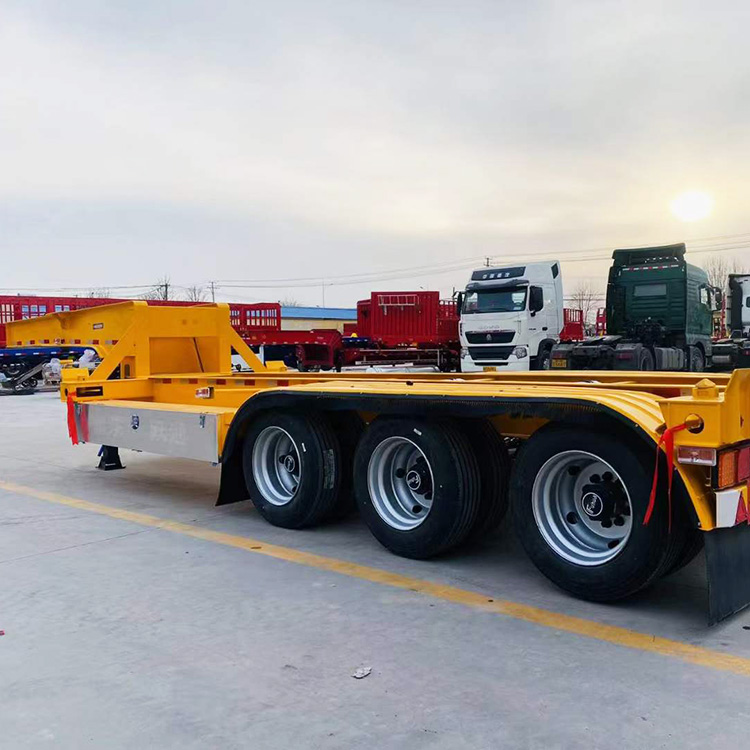

Tri axles skeleton truck semi trailer tka 20 ftr 40ft transport container frame skeleton semi truck trailer.
| Total Weight | 35000 kg |
| Rated Load | 30480 kg |
Tare Weight | 6650 kg |
Wheel Base | 7380+1320 (mm) |
| Tyre Specifications | 11.00R20 14PR 12R22.5 14PR |
| No. Of the Tyres | 8 |
Axle Bran | FUWA (BPW optional) |
No. Of the Axle | 2 |
Axle-load | 24000 kg |
Pieces of leaf-spring | 10(8)(4) |
| Suspension | independent stamping steel rigid suspension (or air suspension) |
| Departure Angle | 17 |
Front/Rear Overhang | 2600 mm |

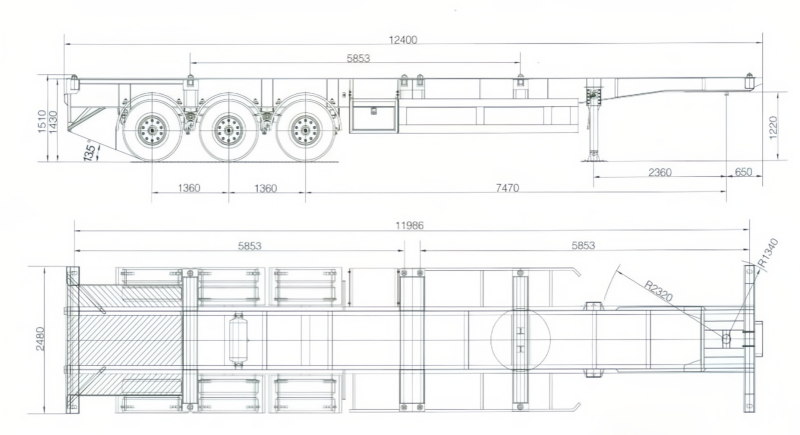

| Outside Dimensions (LxWxH) | 12450X2480X1580 (mm) |
| Material of the Main Beam | Q235B manganese plates, automatic submerged arc welded |
| Brake System | Dual-pipes braking system, equipped with pneumatic type, parking brake system or ABS: RL122-1(optional ) |
| Brake Air Chamber | Four double and two single chamber |
Usage | The cargo's carrying part is container structure designed, mainly applicable to the transportations for ships, ports, airlines, roads, transfer stations, bridges, tunnels, and other multimodal transport matching logistical systems. |
| Characteristics | 1. Using container truck, the goods can be loaded in the deliverers's warehouse and be unloaded in the receivers' warehouse without taking the goods out for transferring. 2. Customary quick dispatches are allowed, transiting the goods form one kind of transport vehicle to another is available. 3. Internal design is convenient for the goods' fill-ups and discharging, satisfing your diversified needs and wants. |
Other Specifications | The frame can be flat plate style and skeleton style.Twist lock settings installed 12 only, 8 only, and 4 only to satisfy the containers with different sizes for convince. |
