Product Details

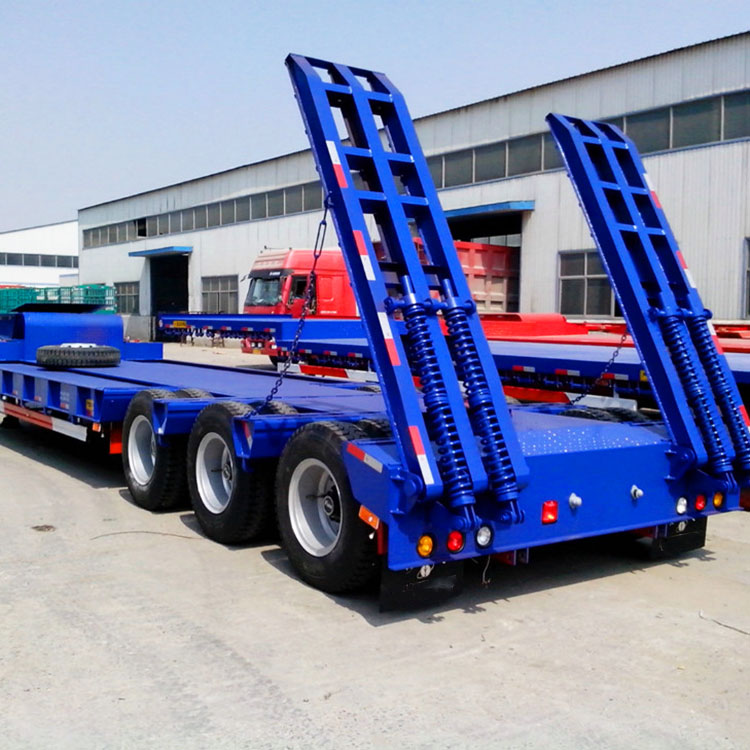

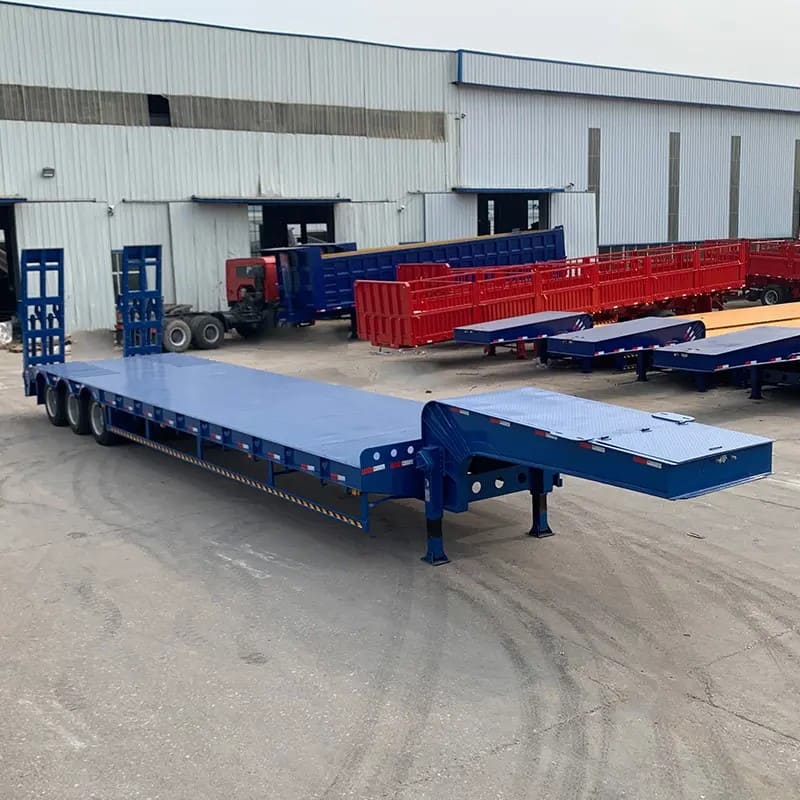

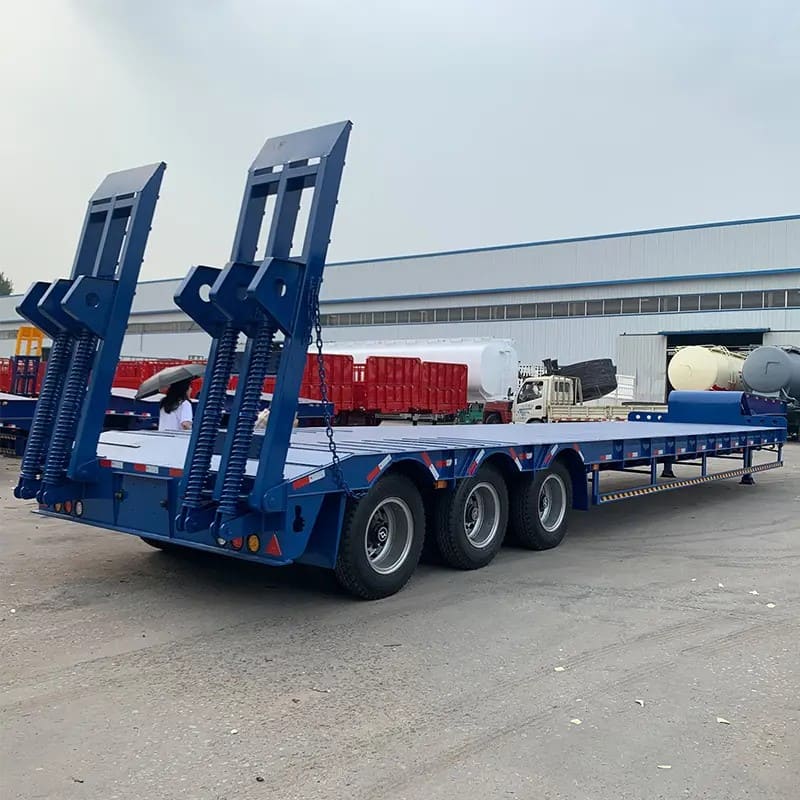

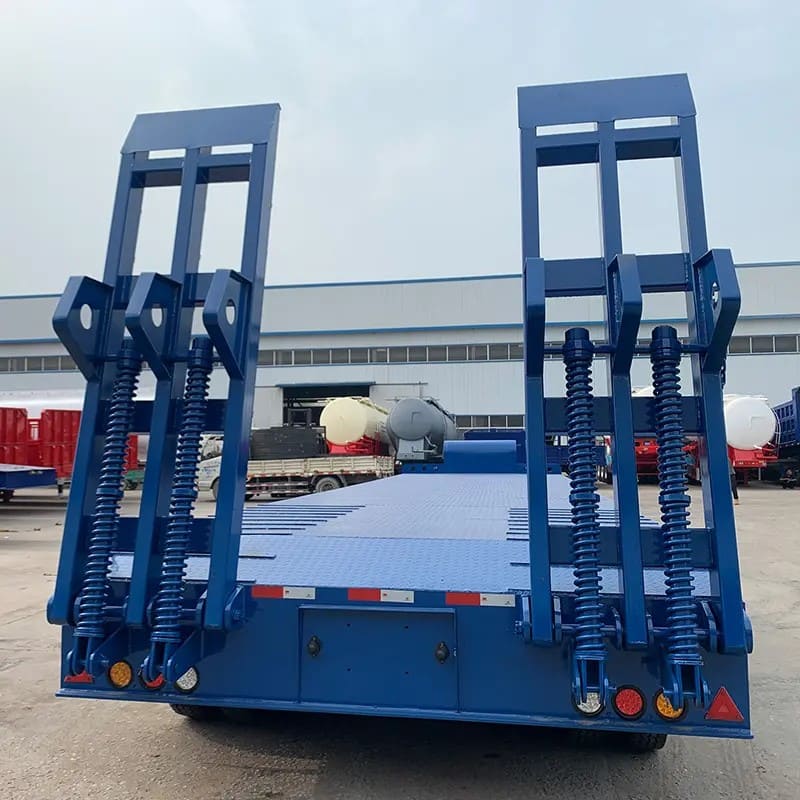

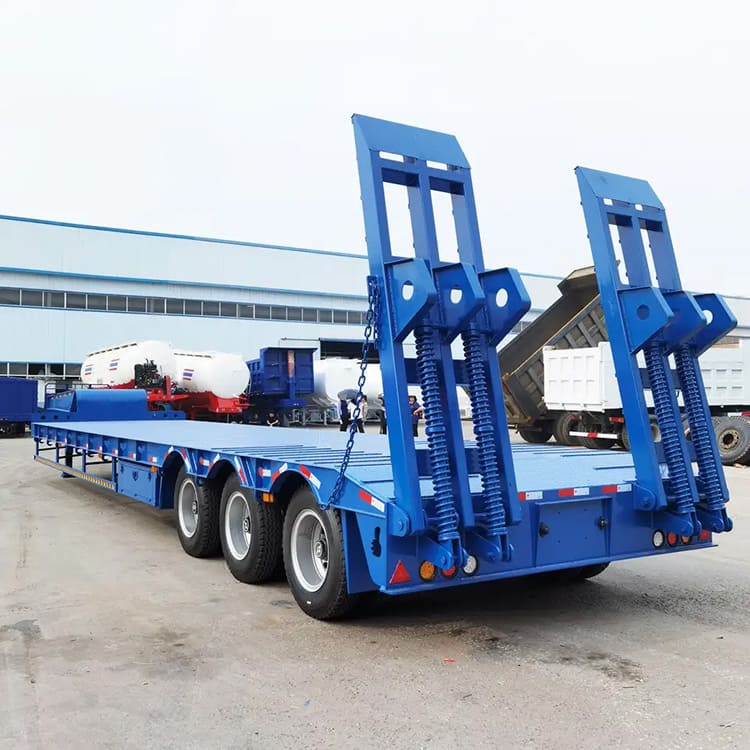

3 axle low bed truck trailer is a good option to transport various mechanical equipment, highway construction equipment, and various types of steel.
Hstar can customize various specifications according to customer's needs. The common length of lowbed trailer is 13m, and 12m to 16m is optional. Width is usually 3 meters or 3.2 meters. Height of cargo platform is 1.1 meters. And number of axles mostly is 3 axle and 4 axles. Based on your dofferent loading capacity and other requirements, our technicans will recommend the most suitable specifications to you.
| Name | 3 axle lowbed trailer |
| Payload | 60-80 ton |

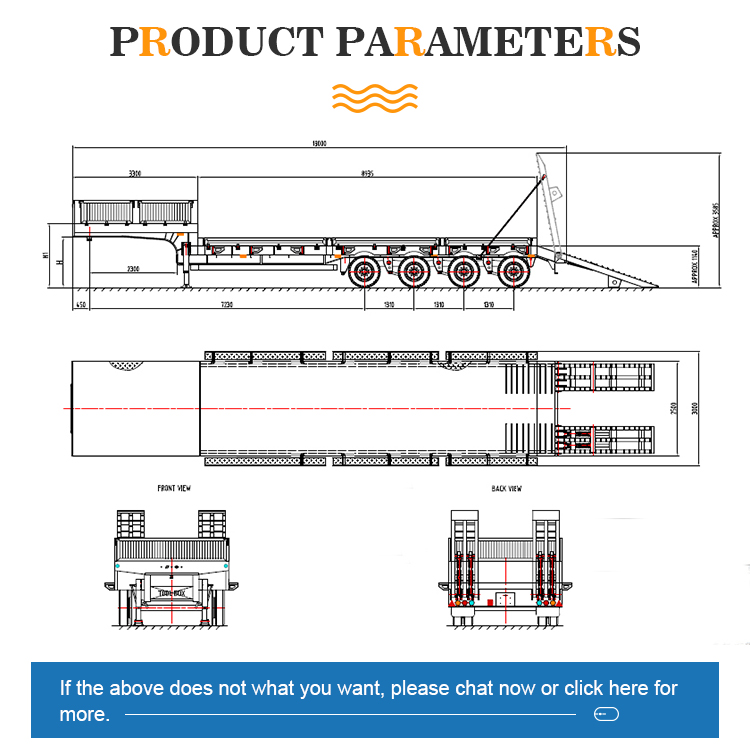

| Dimensions | 13000*3000*1750 mm |
| Bottom plate | 4mm/5mm thick diamond plate |
| Axle | 3 axles, 16 ton Zhengyang/Fuwa brand |
| Suspension | mechanical suspension |
| Leaf spring | thickened type |
| Tyre | 12R22.5/315/80R22.5/11.00R20 |

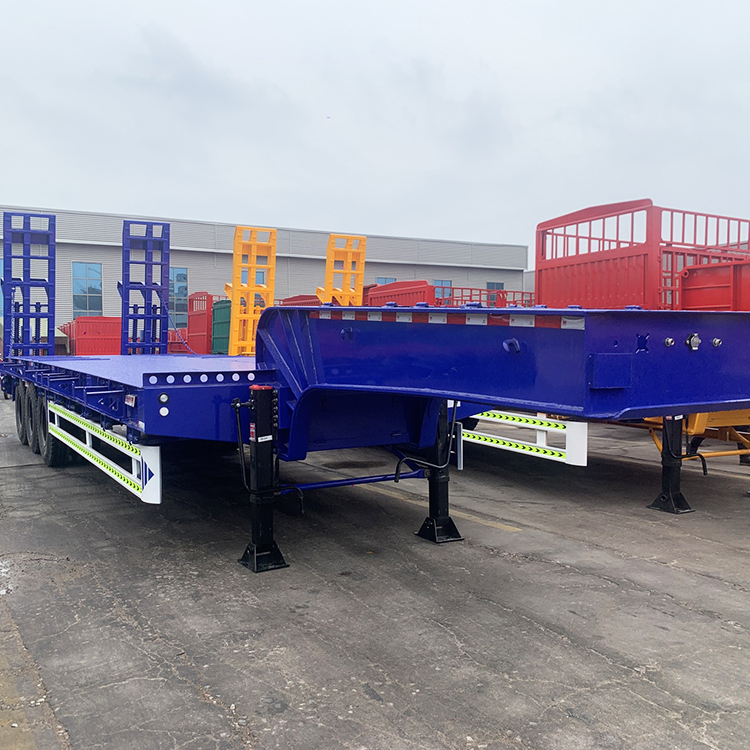

| Landing gear | 28 ton JOST brand |
| King pin | 2.0'' or 3.5'' |
| Tool box | 2 pcs |
| Color | ptional |
Product Features
1. Hstar low bed semi trailer is made of high strength steel, and adopt automatic submerged arc welding process. Makes it more durable and stronger.
2. The side beam use "H" shape beam. It has better bearing capacity.
3. Hstar lowboy trailer is equipped with high quality Triangle or Linglong tire. It is ear-resistant and durable, no problems after ten years of use.
