Product Details

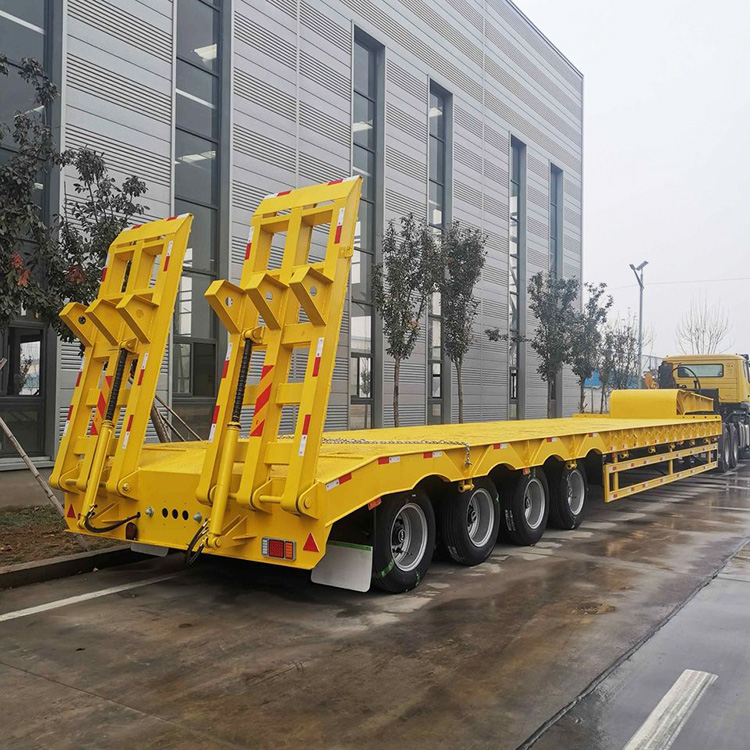

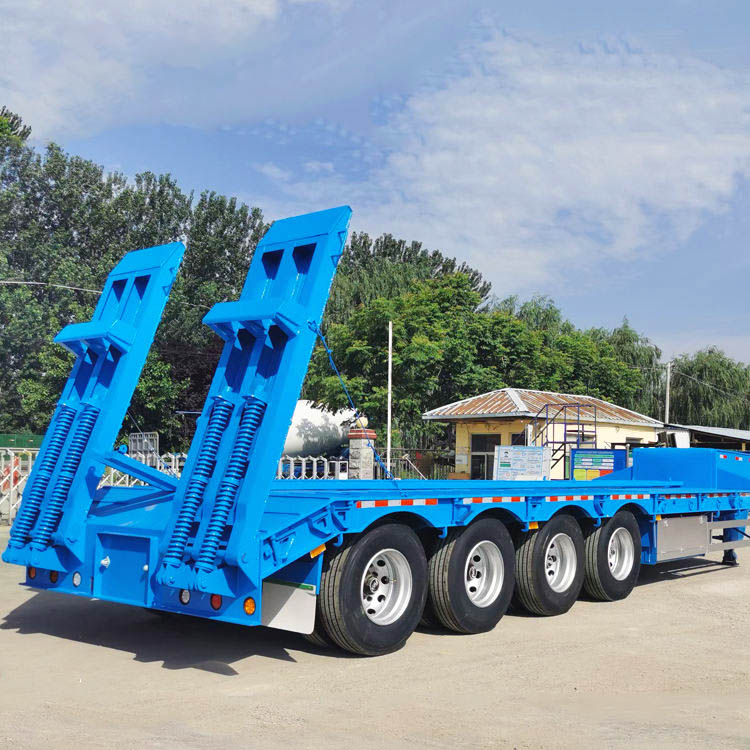

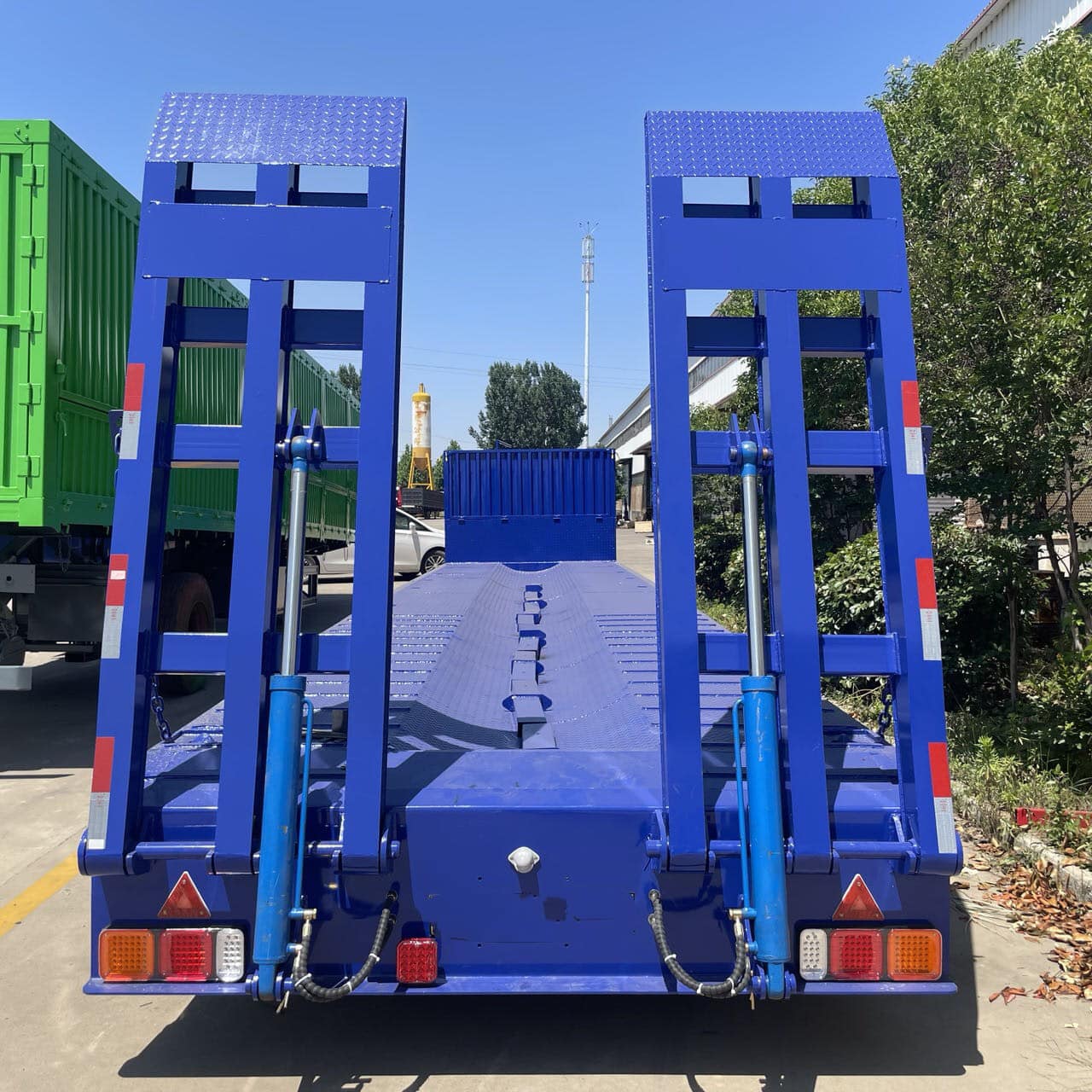

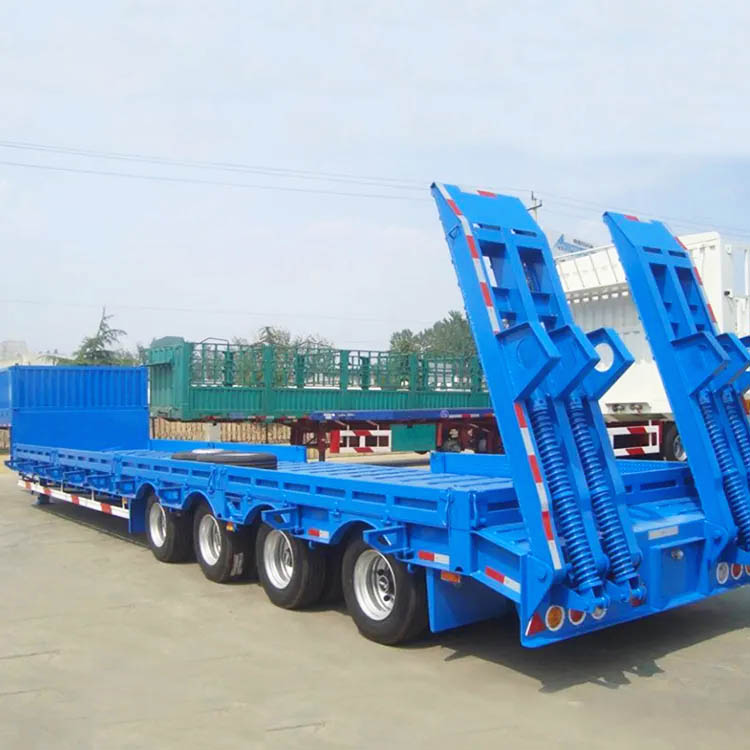

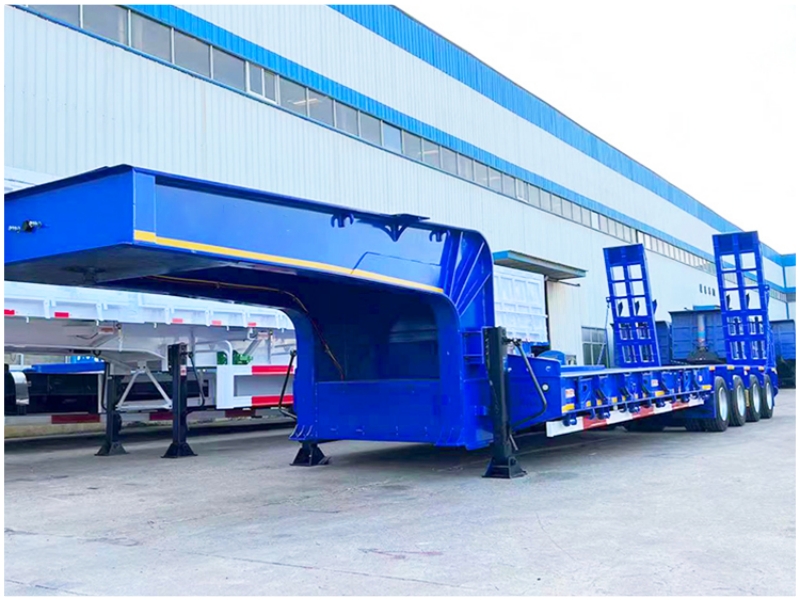

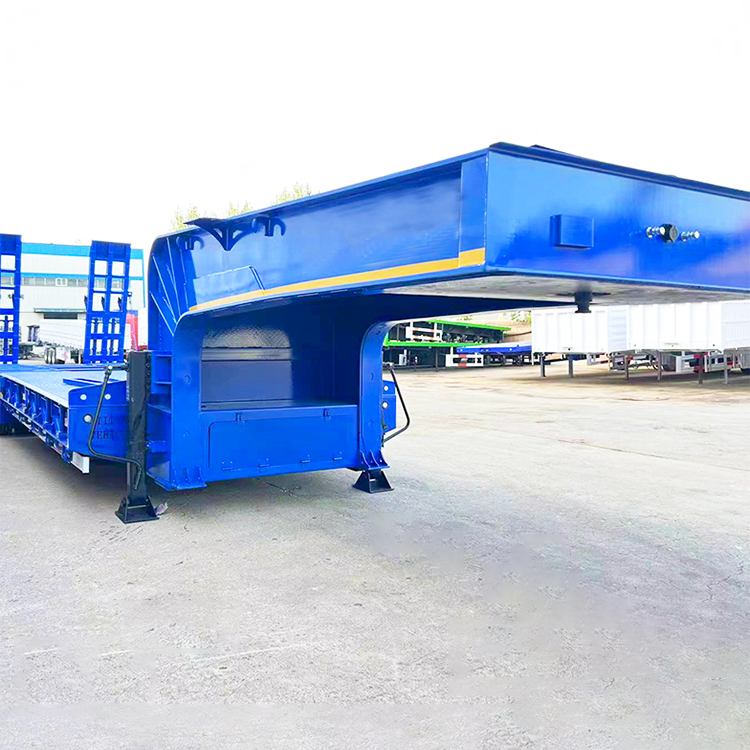

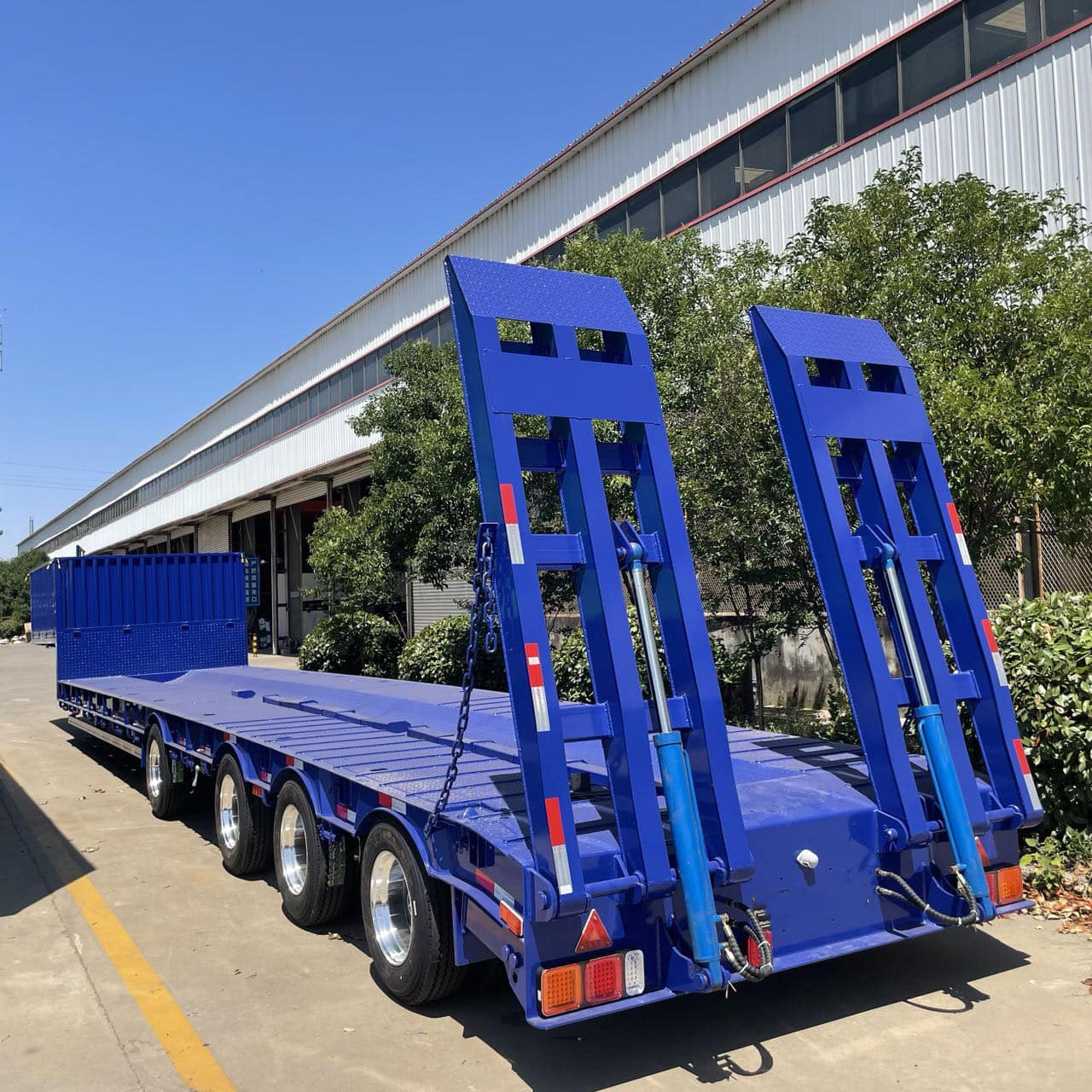

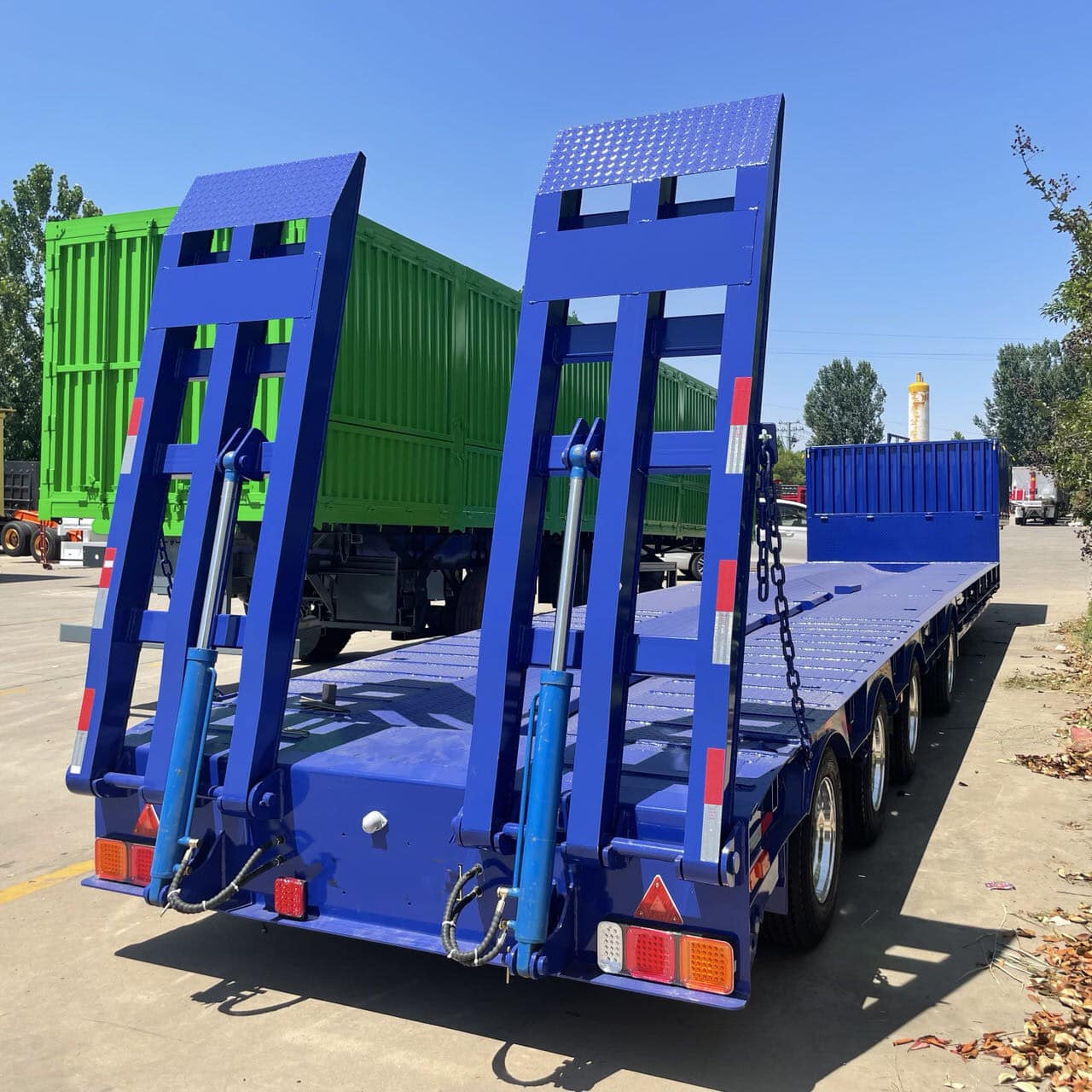

Low Bed Semi Trailer, as known as low bed trailer, lowbed trailer, lowboy trailer.Our lowbed trailer choose Q345B carbon high-tensile steel material. We adoptworld famous brand of parts, like JOST, WABCO braking valve etc.The product complies with international standards such as IMDG /ADR /RID/TC/CSC/ ASME / EN, and is applicable to the global shipping, road and railtransportation regulations and standards.
| Trailer Model | 4 Axles 80T Low Bed Semi Trailer |
| Dimension(Lx W x H（mm） | 16500*3000*1800mm |
| Low bed dimension | 12400x3,000x1,060mm |
| Curb Weight(KG) | 12300 |
| Loading Weight( KG) | 80000 |
| Total Wheight(KG) | 72300 |
| Axle Brand | 16TON Axle made in China |
| Axle Number | Axle Number |
| Wheelbase（mm） | 8910+1360+1360+1360 |
| Suspension system | Mechanical suspension |
| Frame Beam | Outside Beam The height of the out beam is450mm wide is210mm,upper plate is 18 mm wide is 210mm,down plate is 20 mm,middle plate is 10mm. |
| Platform plate | 4mm Diamond Plate |
| Tire Type and quantity | 825R20,16pcs |
| Traction Pin | Traction Pin |
| Traction Pin | 2 picecs |
| Brake air chamber | Brake air chamber |
| Brake system | Dual Line braking system ,none ABS |

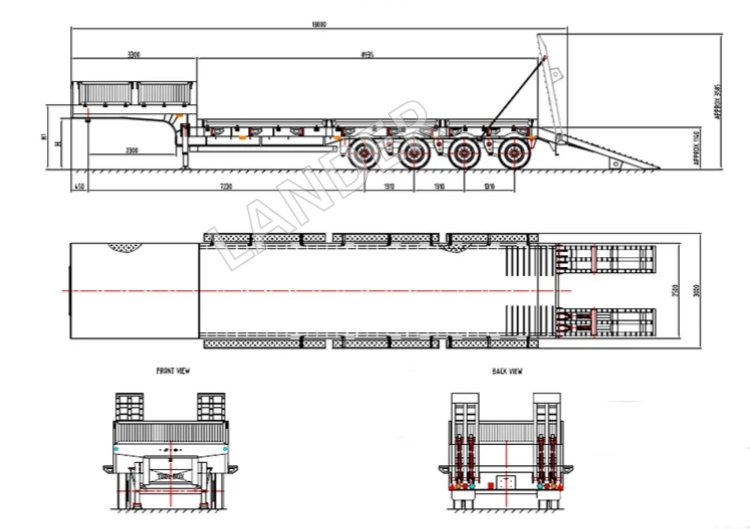

Analyzing Drawings
3-axle low flat tires, exposed thickened, reinforced gooseneck, removable mechanical ladder
4-axle tires with no exposed 60 ton low flat plate
