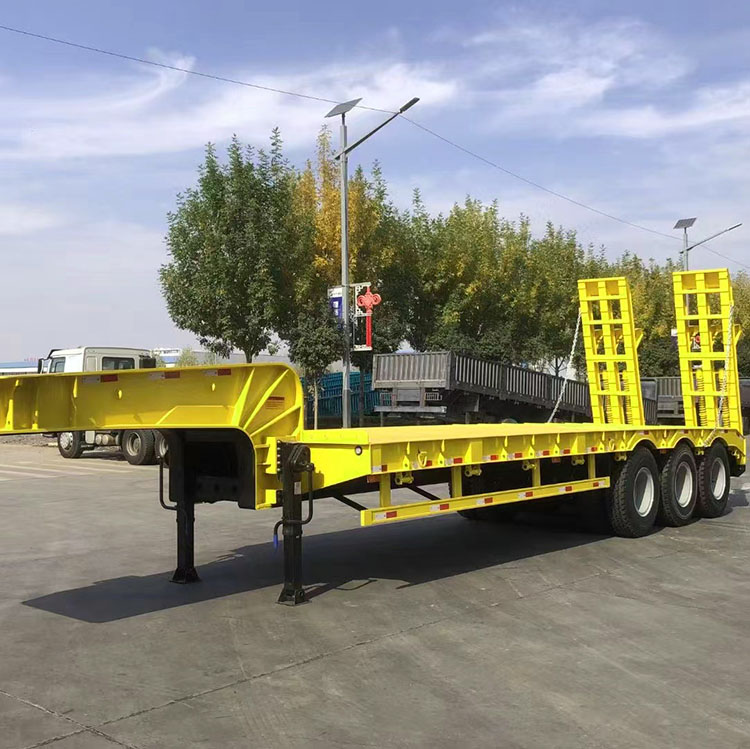

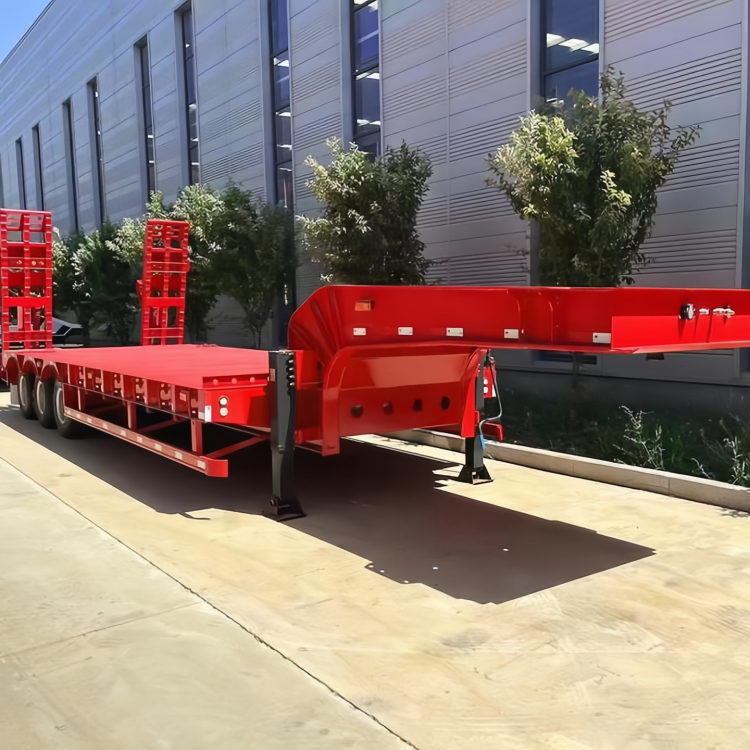

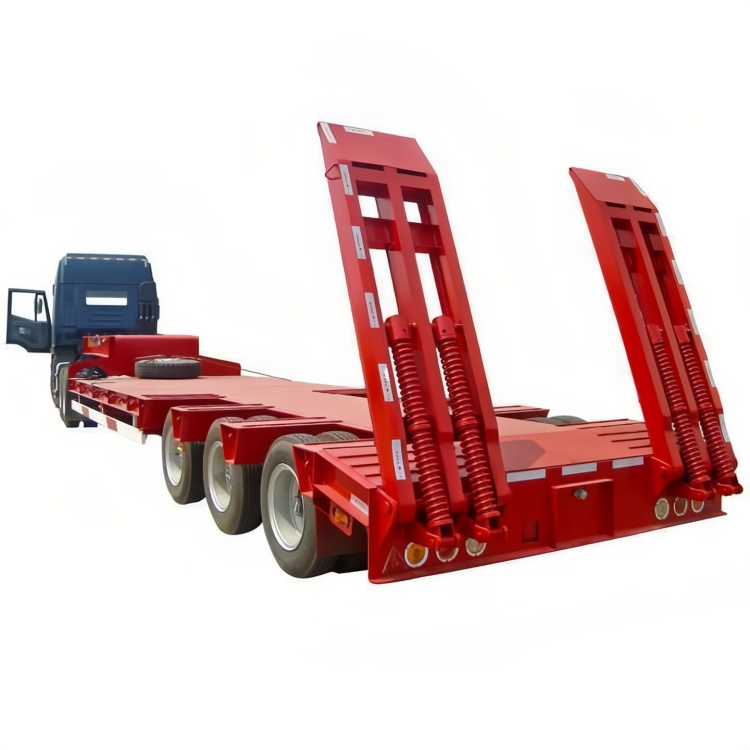

Lowbed semi-trailer is a very popular transportation vehicle. The height of a lowbed semi trailer from the ground is 1.25 to 1.3 meters, so its height from the ground is lower than that of other semi trailers. Because of its low height, its center of gravity is also low. And the lower its center of gravity, the better its stability. The ability to carry high cargo and pass through overhead obstacles is also strong. Lowbed semi trailers are commonly used in mechanical transportation. Used to transport some ordinary machinery and forestry machinery.
| Item | Value |

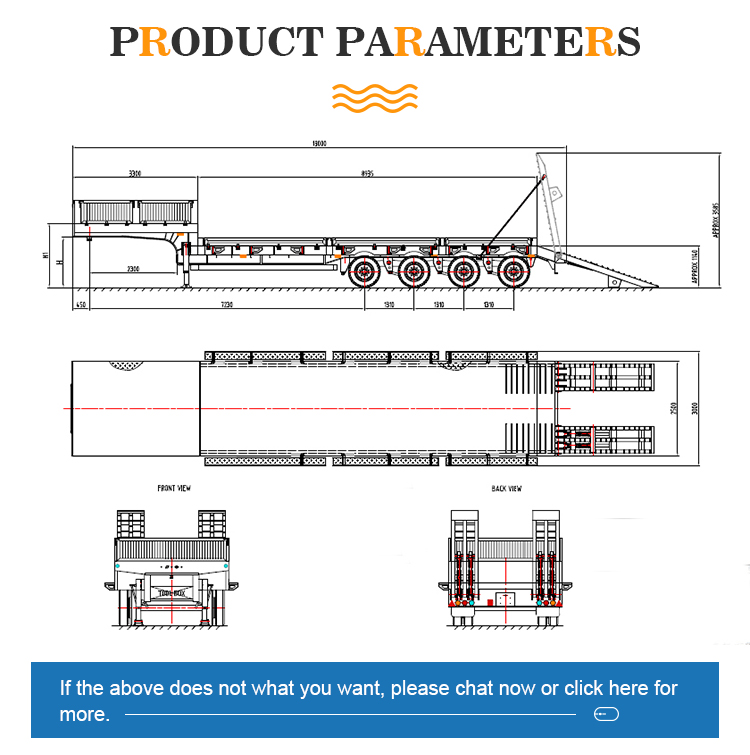

| Size | 13000*3000*1600mm |
| Max Payload | 60 Ton |
| Suspension | Mechanical Suspension |
| Function | Transport Heavy Duty Equipment |

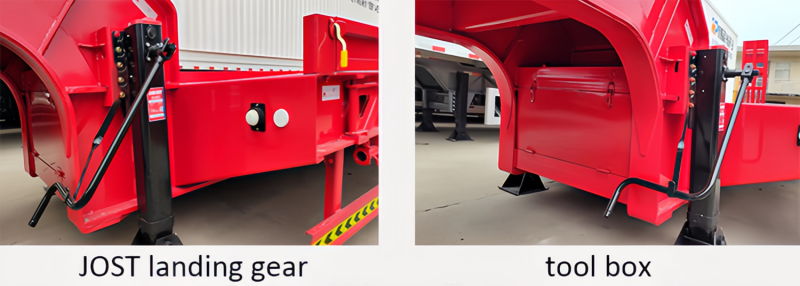

| Landing Gear | 28t Heavy Duty Landing Gear |
| Loading capacity | 40-80T |
| Leaf Spring | 90(W)mm*13(Thick)mm*10 Layer |
| King pin | 2"(50mm)or3.5"(90mm) JOST |
| Tire | 315/80R22.5, 12 pcs |
| Color | Customer's requirement |

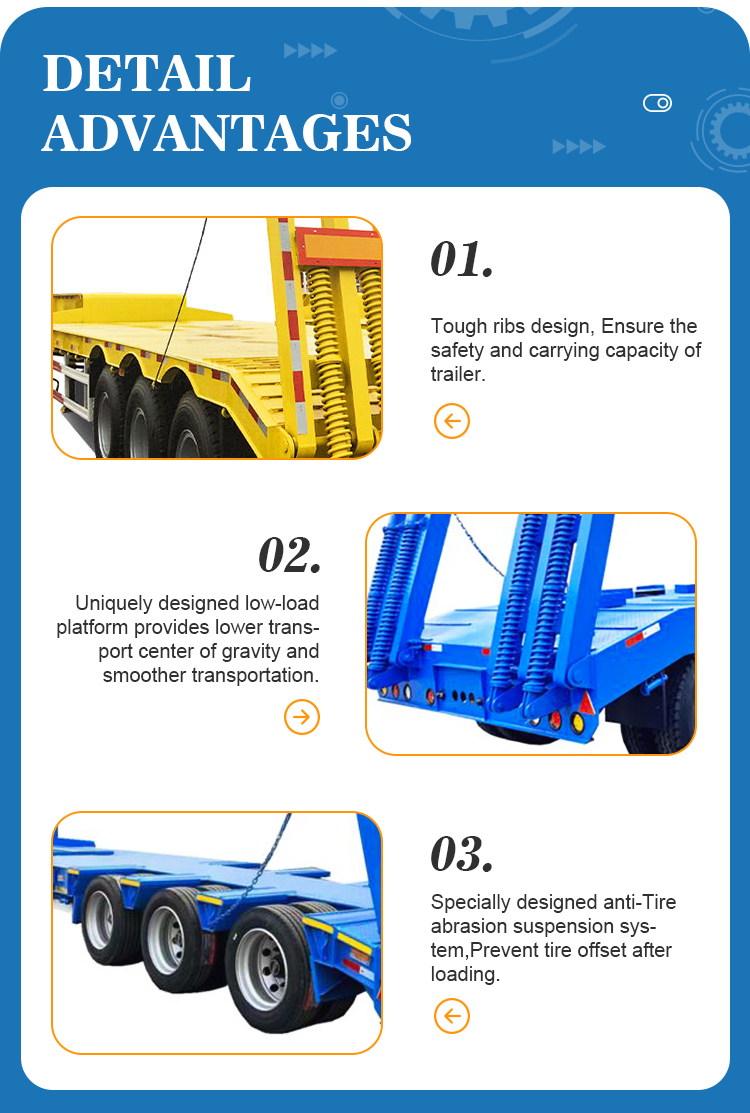

Details Images

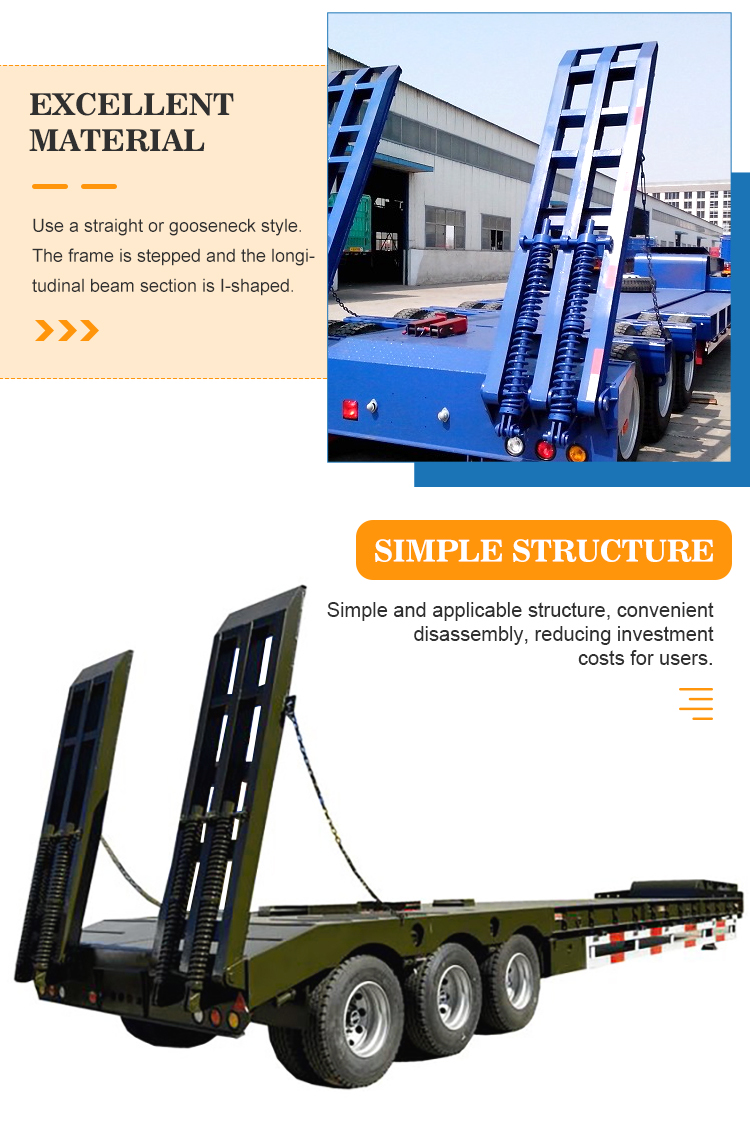

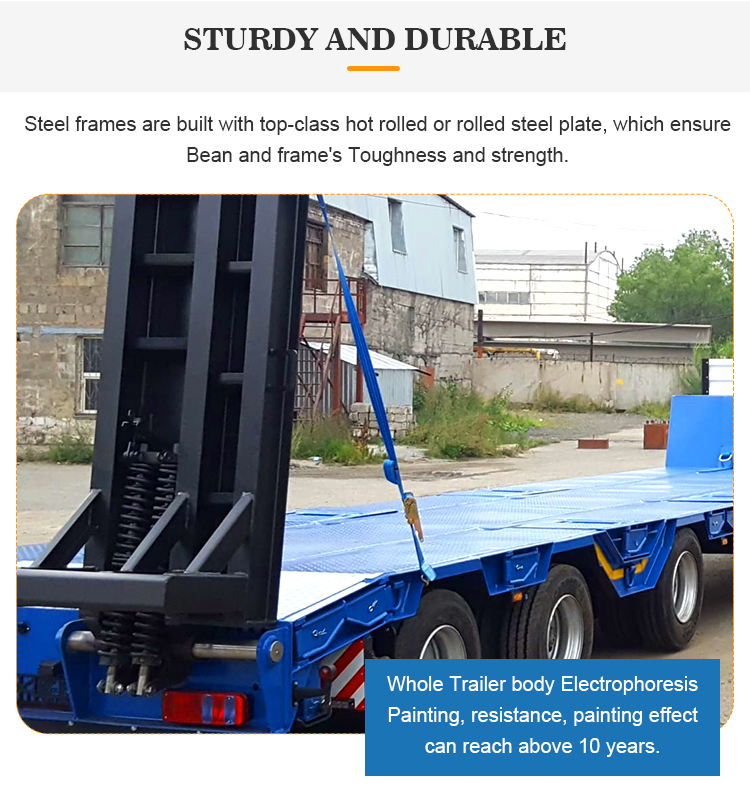

1. H-beam for side beam instead of channel steel.
2. Anti-slip strip on tail and rear of platform to ensure loading safely.

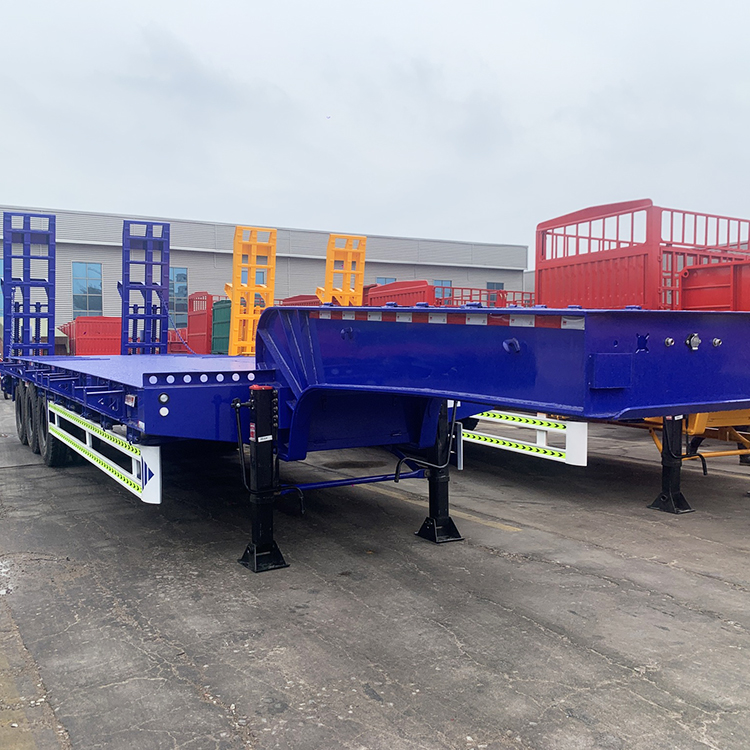

3. Optional landing gear under tail to ensure trailer to be stable when loading.

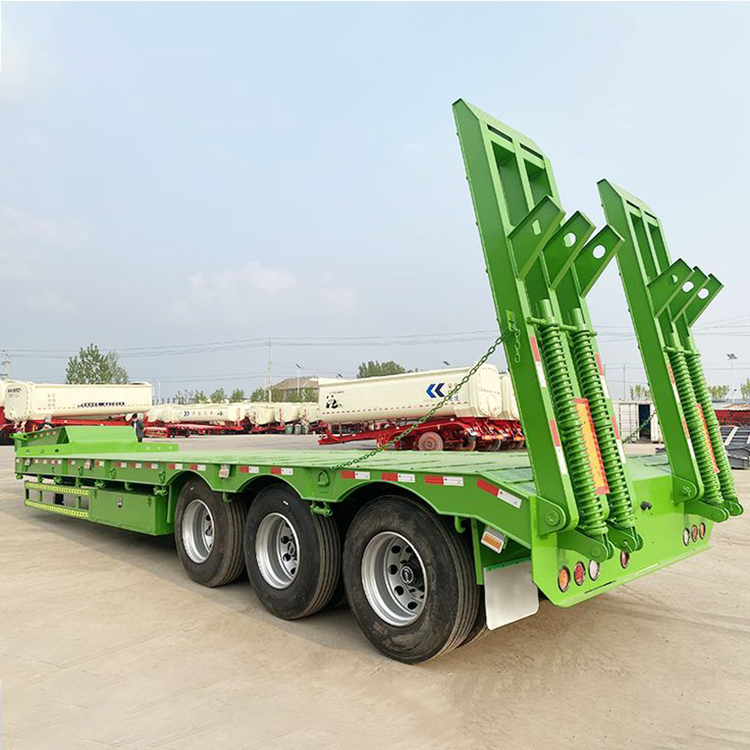

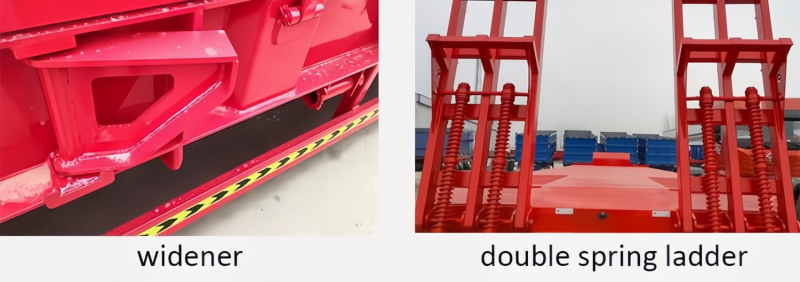

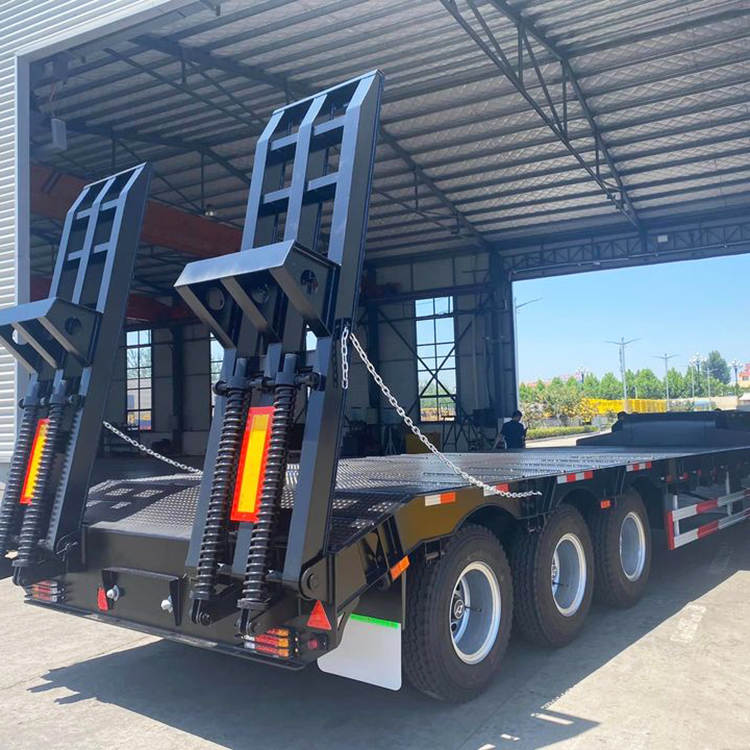

4. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
5. Optional hydraulic ladder for more than 60 tons capacity, avoiding occupational injury when release ladder by manual operation.
