Product Description

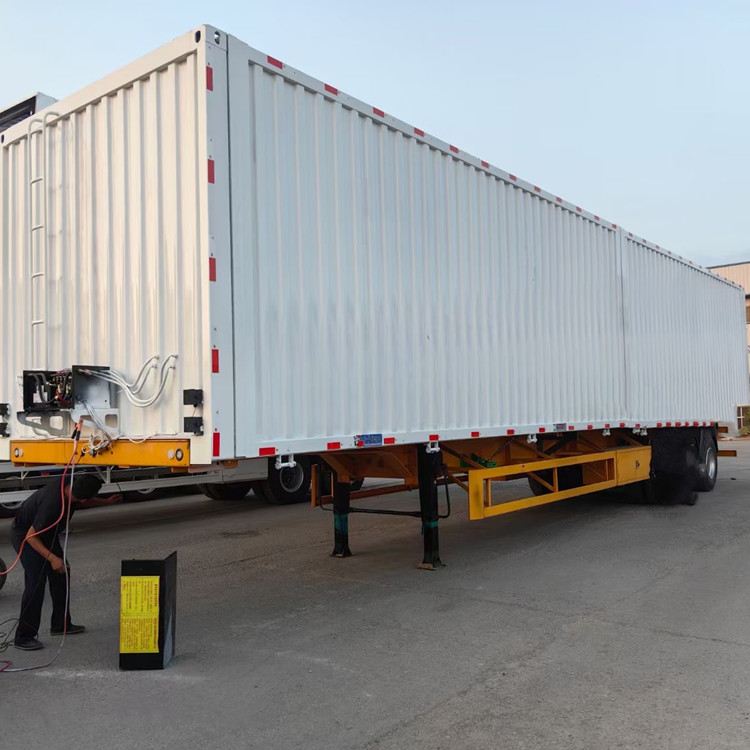

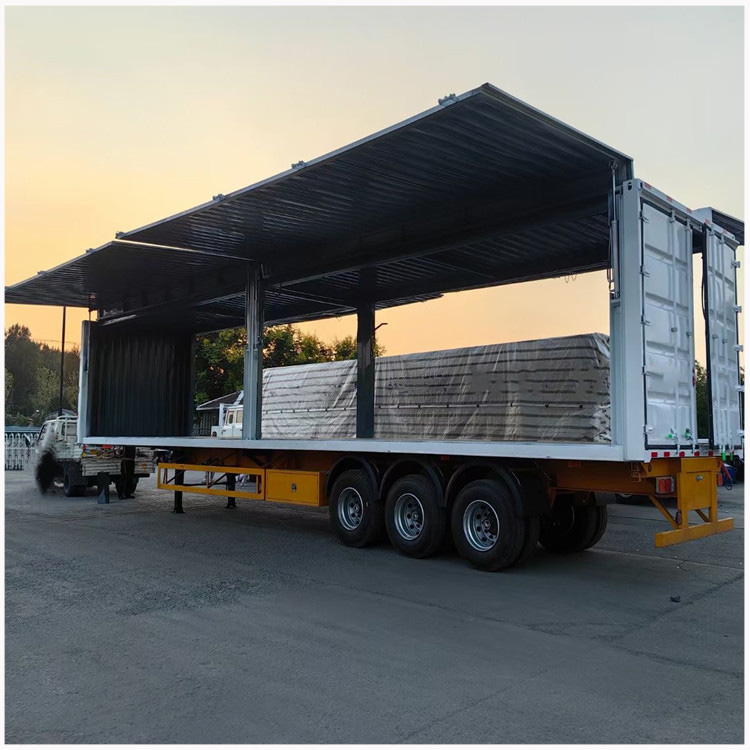

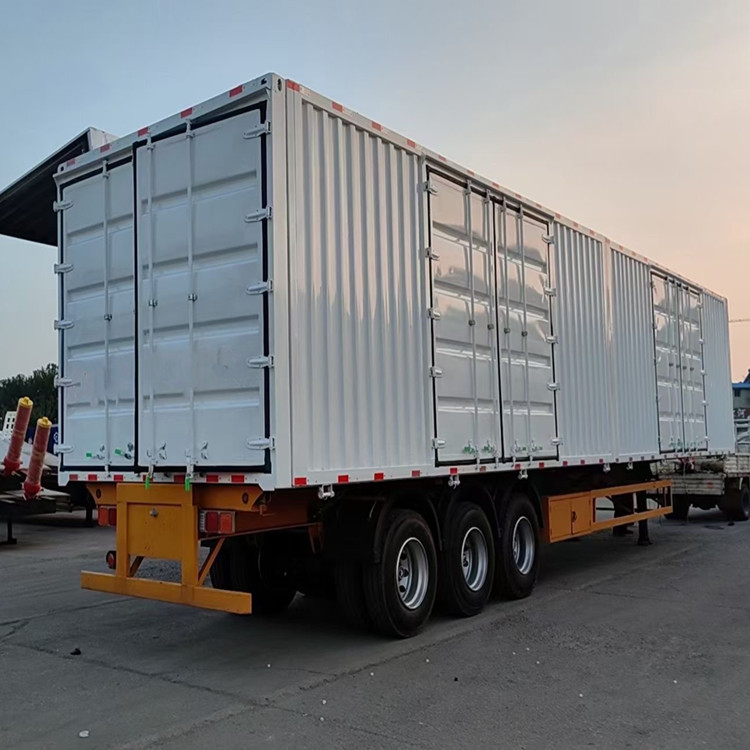

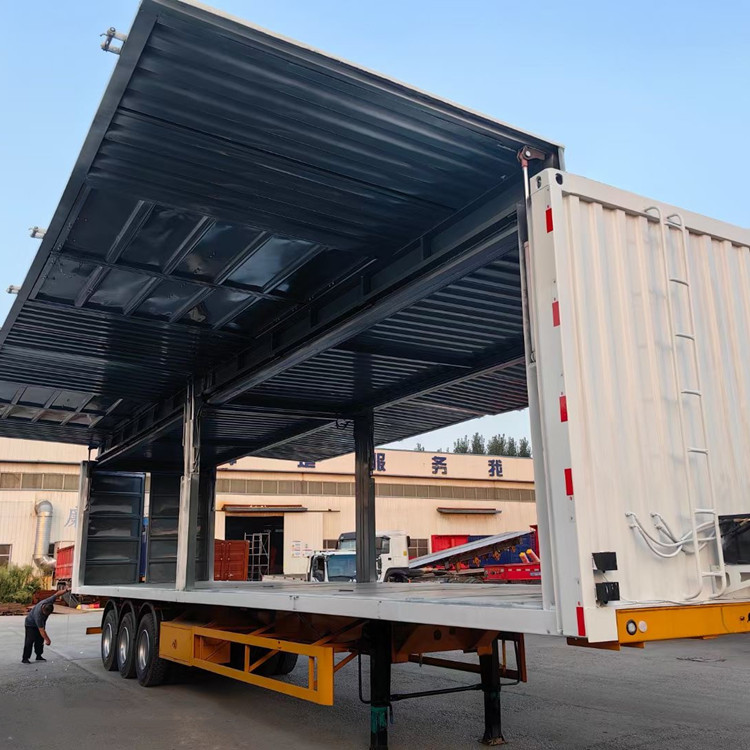

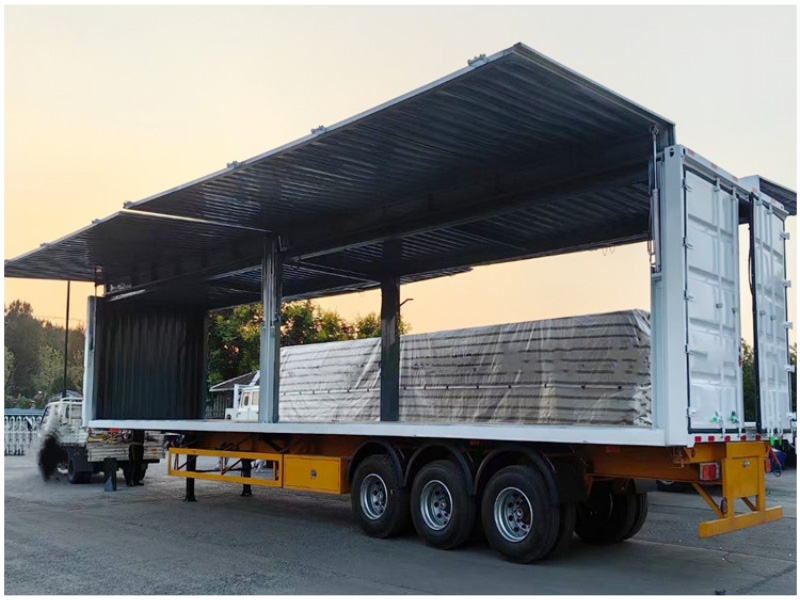

Wing-spread box-type semi-trailer
1. The main components of the trailer are processed by advanced equipment, and the longitudinal beams are welded by a fully automatic tracking submerged arc welding machine imported from the United States.
2. The frame of the trailer adopts the space frame structure welded by 16Mn vehicle steel plate and high-strength steel plate, welded longitudinal beam and integral penetrating beam.
3. High-quality brand axles, optional ABS anti-lock braking system, improve trailer driving safety.
4. Waterproof, oversized detachable tool case.
5. The safe and reliable dual-circuit air-cut brake is adopted, the quick release valve is installed in the system, and the sub-pump is used to quickly return to the position when braking.
Specification
| Weight | |
Tare Weight | 8000kg-14000kg |
| Loading Capacity | 30T-70T |
| Axle Weight Load | 13T or 16T |
| Specification | |
| Axle number | 2- 4 |
| Axle Brand | Fuwa/BPW/Optional upon choice |
| Suspension | Common mechanical |
| King Pin | 2" or 3.5" traction pin |
Dimensions (LxWxH) | 12400~18000×2500~3200×(1500+1800)mm |
Thickness of box | 2mm |
Support legs | 28T |
| Wheel Rim | 8.5-20,9.0-20,8.28-22.5,9.0-22.5 steel wheel rim / optional upon choice |
| Wheelbase | 7180/6680/6260+1310+1310mm |
| Steel Spring | 10-13 pieces per axle |
| Landing Gear | Manual operating, Heavy duty landing gear (Brand Optional upon choice) |
Floor | 3-5 Diamond steel plate |
| Accessories | 1 Set standard tool box |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| Painting | 1coat of anticorrosive prime, twice coats of final paint |
| Tire | |
| Tire spec | 12R22.5 Vacuum tire/11.00R20 steel wire tire |
| Number of Tire | 8 or 12 or 16 pieces |
| Spare Tire Carriers | 2 pieces |
| Frame | |
| Main beam | The height of the beam is500-550mm; Upper plate:14-18mm;Down plate is 16-20mm; Middle plate is 8-12mm. |
| Brake | |
| Brake brand | Optional upon choice |
Brake Chamber | Six big chamber( Brand Optional upon choice ) |
Brake system | Dual Line Brake system (ABS Optional upon choice) |
