Product Details
Three standout benefits of the curtain side trailer include:
1. Speedy load and unload. Once the curtains are pulled back, the trailer can be accessed from both sides as well as the rear door by multiple forklifts simultaneously. Drivers are in and out and back on the road quickly.
2. Simplified partial deliveries. The limitations of “first on/last off” loading are a thing of the past. Independent access to all parts of a load at any point along a route means multiple drop loads are easily doable from a single trailer.
3. No tarp required. While federal regulations require cargo inside curtainsides to be tied down, most loads can be quickly and conveniently secured with straps.
Drivers devote time to driving, not struggling with a tarp, and experience a safer work environment as well.

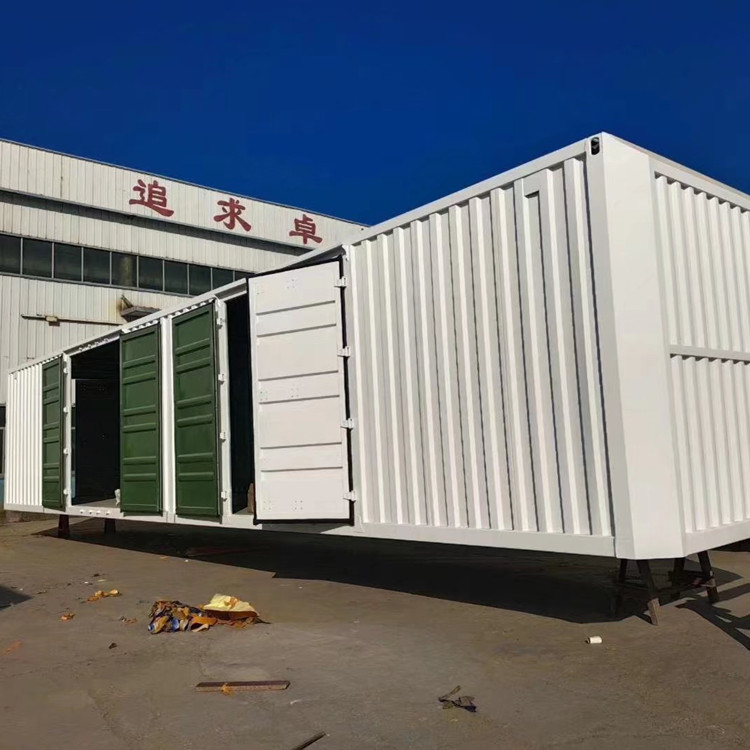

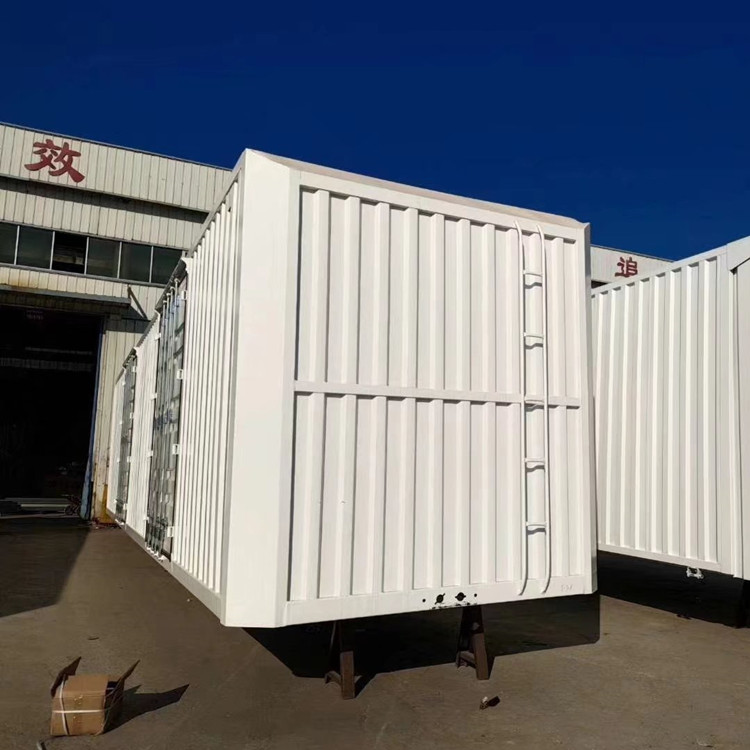

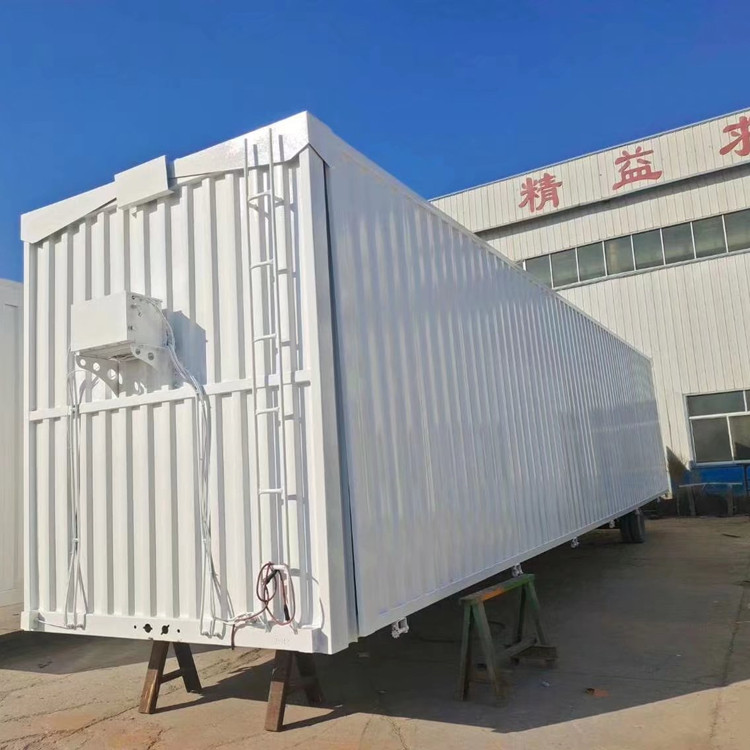

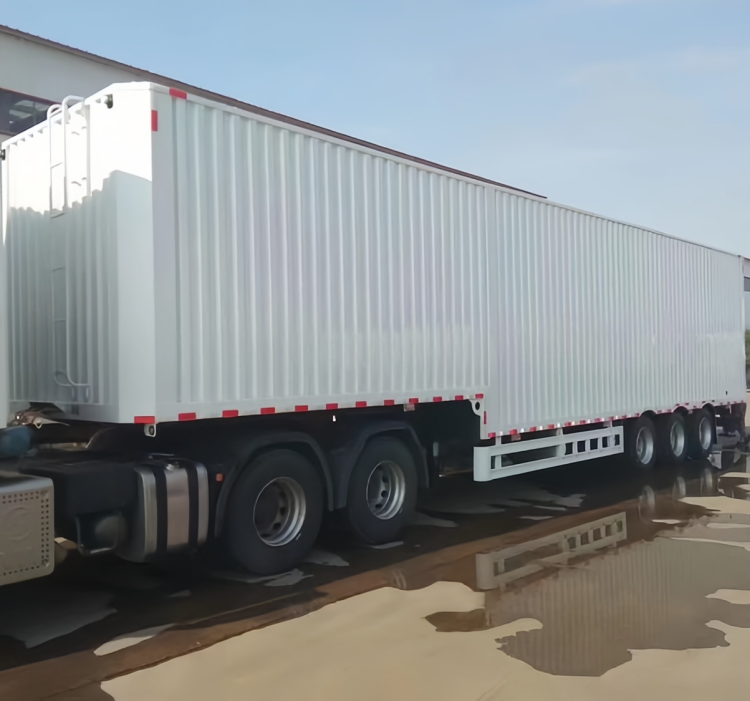

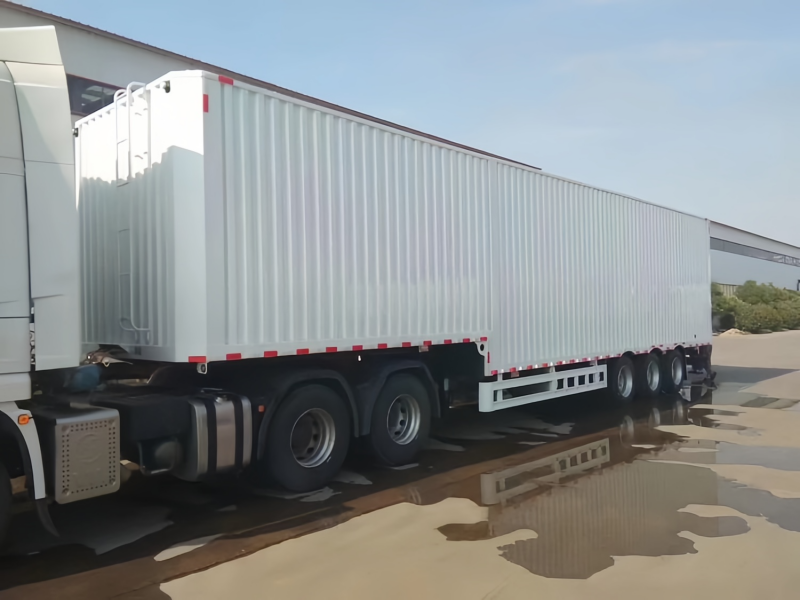

| Trailer Model | wing open box semi trailer "/Curtain semi trailer |
| Applications | Cargo Transport |
| Overall Dimension(Lx W x H)(mm) | 12500*2550*3930 |
| Lifting Type | Front side lifting optional |
| Tare Weight(KG) | 9000 |
| Load Weight(KG) | 50000 |
| Axle | 3* FUWA 13T axle |
| Chassis | Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes. Top flange 14mm,width140mm; Middle Flange 8mm;bottom flange16mm,width 140mm |
| Floor | 3mm Checkered plate |
| Suspension system | Mechanical suspension |
| Landing gear | Fuwa two-speed manual operating heavy duty landing gear 28T |
| Leaf Spring | 10pcs |
| Wheel rim | 9.0 12 pcs |
| Kingpin | 2’’ bolt-in king pin |
| Tire | 12R22.5 12pcs brand optional |
| Spare Wheel Bracket | 2 pcs |
| Tool Box | 1 Unit |
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
