Product Details
Compared to other 3-axle 60T guardrail trailer in the same weight class. we use the latest structuraldesign that increases the capacity by about 20% in contrast with ordinary structureOur every node will be inspected strictly. Moreover, advanced equipment rather thanonly worker is been applied during the whole producing process to ensure thewelding quality.
| Item | Specification |

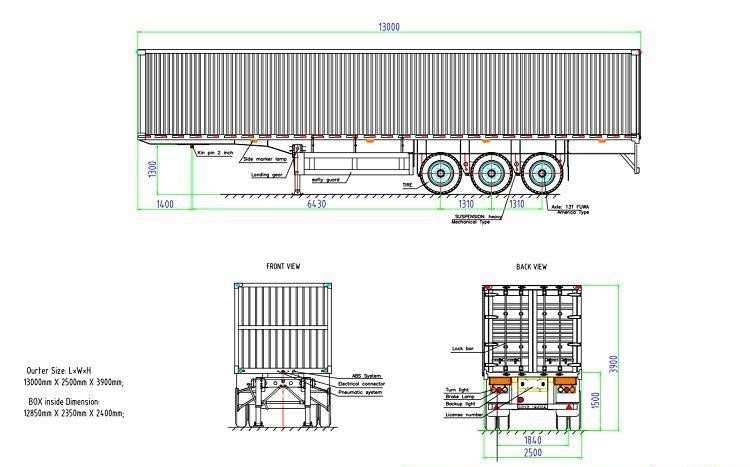

| Size | 13750*2550*4000mm |
| Body Sheet | Side wall thickness: 2mm, floor thickness: 3mm; Body material: aluminium alloy with composite board. |
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes. |
| Axle | 20T FUWA brand axle |
| Tire | 12R22.5 |
| Rim | 9.0-22.5 |
| Suspension | 3 axles |
| Lead spring | 12 pieces and 16mm thickness |
| Braking system | 2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters |
| Electrical system | 24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors |
| Shot blasting | Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed. |
| Landing gear | 28T, two side operation |
| Chamber | Double type |
| King pin | (2') 50# or (3.5') 90# |
| Cylinder | Side tipper 120 |
| Spare tire carrier | standard |
| Tool box | standard |
| Color | According to customers' requirements and RAL color code. |
Details Images

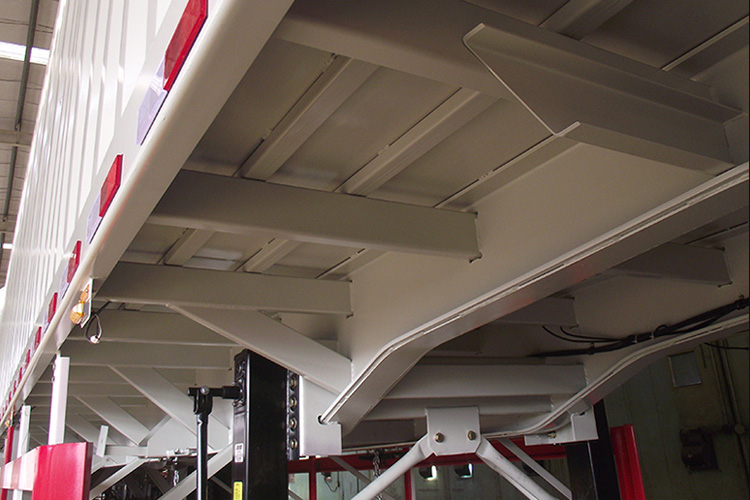

The main parts are processed with advanced equipment, and the longitudinal beam ismade of automatic submerged arc welding. The assembly machine is used foraccurate assembly of wheel shaft and steel plate spring.
We have our own semi-trailer factory, tank trailer factory, and axle and suspensionfactory, and steel processing factory to ensure the best quality from the verybeginning.
