Product Details

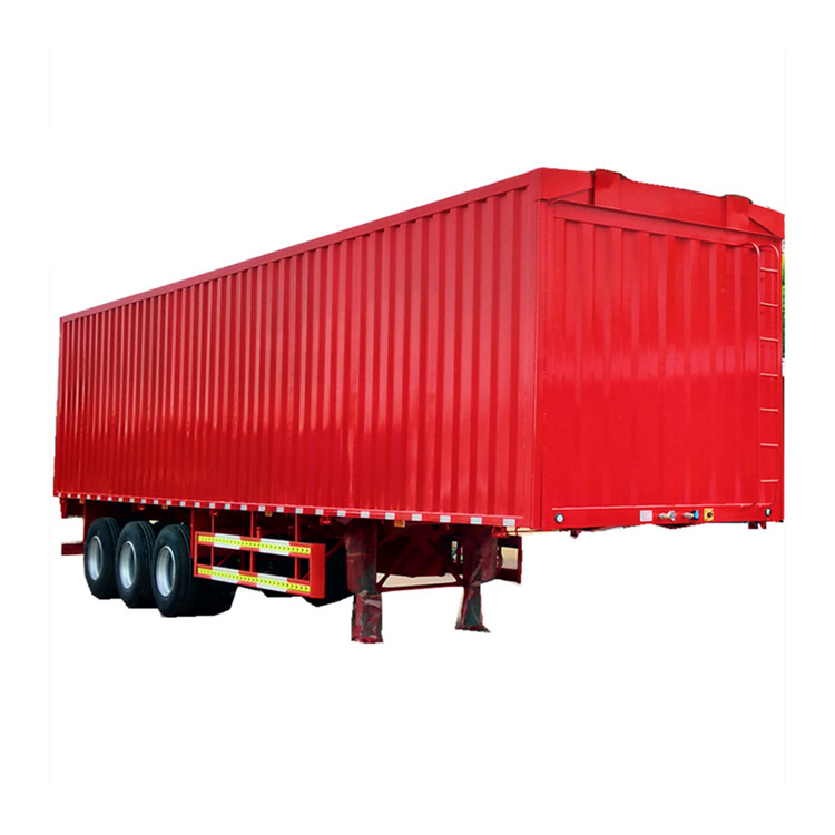

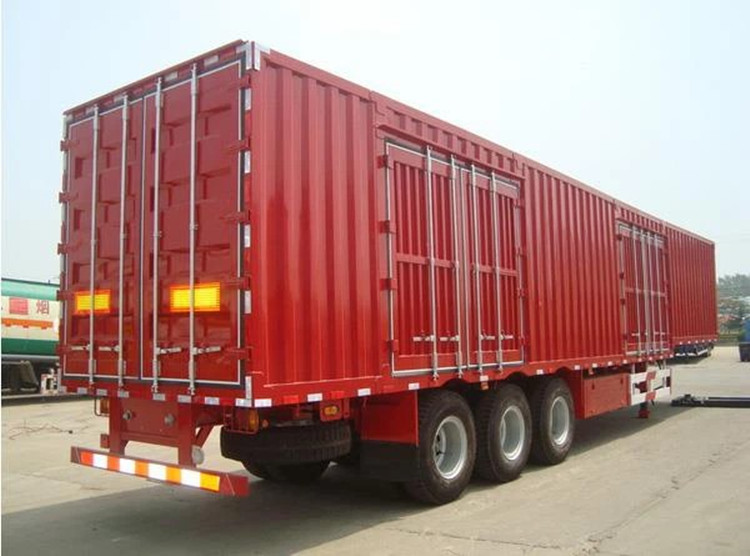

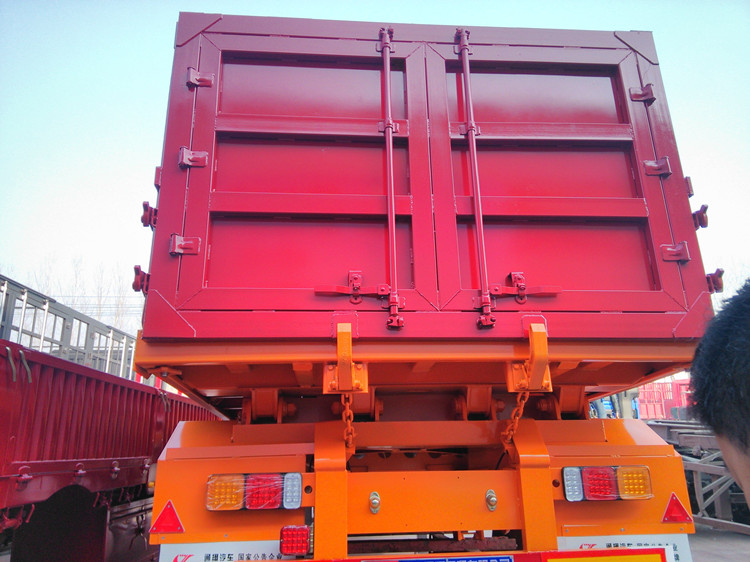

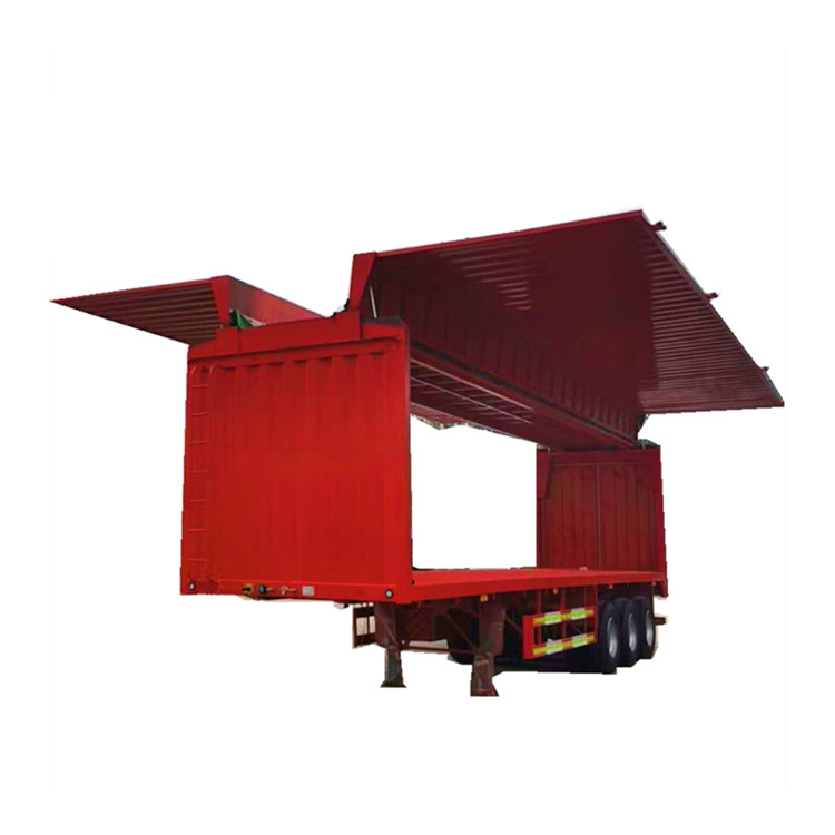

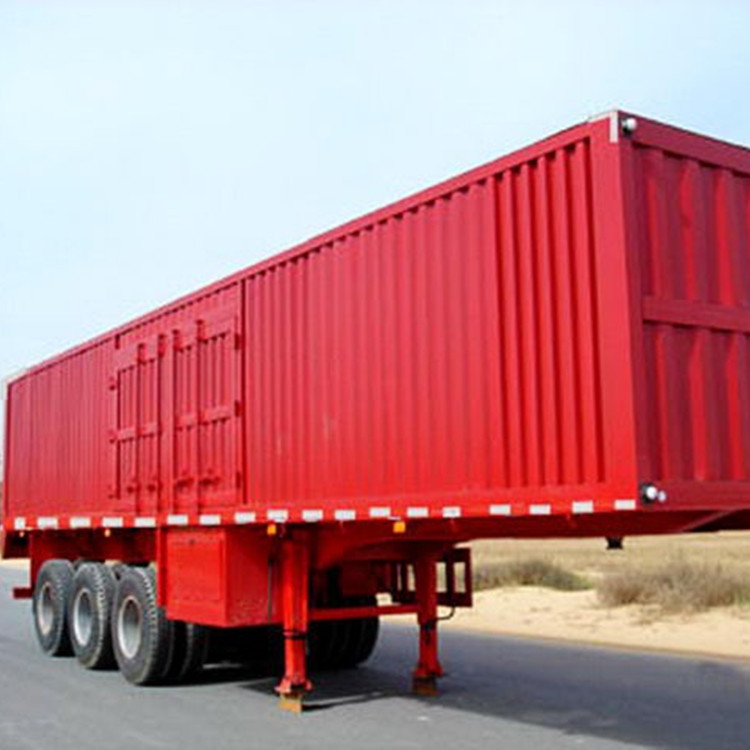

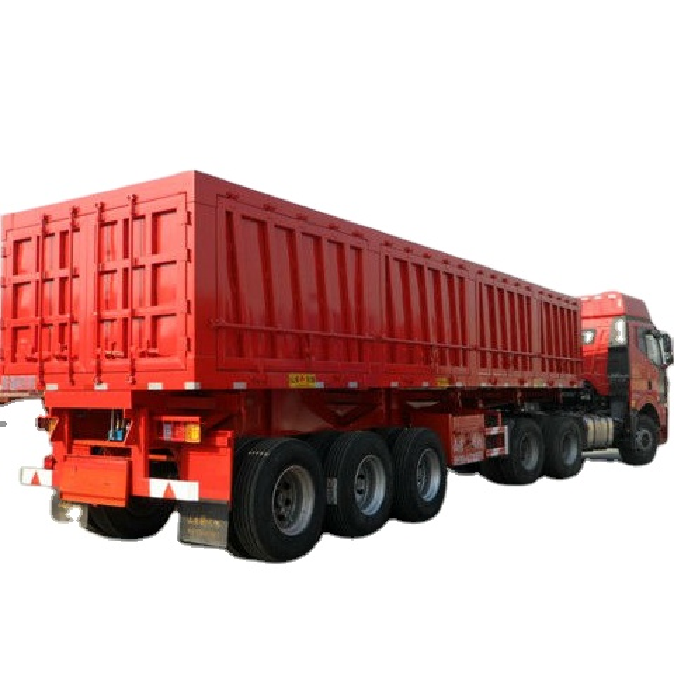

Cargo transport semi-trailer is a type of trailer designed to haul goods and materials over long distances using a tractor or truck as the power source. These trailers are commonly used in the shipping and transportation industry to transport a variety of products, including bulk commodities, manufactured goods, and equipment.
| Dimension(Optional) | Axle No. | Rated Load (kg) | Rated Load (kg) | Tire Size |
| 20ft | 2 | 40000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
| 40ft 45ft 48ft 53ft | 3 | 60000 | 12 | |
| 40ft 45ft 48ft 53ft | 4 | 75000 | 16 | |
| Wheel Base (mm) | 1310 | |||
| leaf-spring Pcs | 10 | |||
| Axle | 13/16/18 T | |||
| Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | |||
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded | |||
| Brake System | Dual line braking system with automatic braking system/chambers | |||
| Brake Air Chamber | Double Model | |||
| Kingpin | 2' or 3.5' Interchangeable | |||
| Landing gear | 28T loading capacity with 80T static lifting capacity | |||
| Platform | 4-6 mm diamond steel plate | |||
| Platform | Dual Lines Braking System With Automatic Air Chambers | |||
| Brake Air Chamber | Four double and two single chamber | |||
| Electrical System | 24V, 7core socket, lights according to European standards | |||
Mainbeam Size | Upper plate | 14mm | ||
| Lower plate | 16mm | |||
| Mid Web | 8 mm | |||
| Height | 500-520mm | |||
| Tool Box | 1 box of standard tools | |||
| 1 box of standard tools | 1 box of standard tools | |||
| Box Height | 2M | |||
