Product Details
▪Multi Support parts: 12 sets container locks for carrying 1 unit 40ft, 45ft container and 2 units 20ft container. Rope and hooks help yo fasten cargo, suitable for multi cargo transporting.
▪Automatic welding : support vehicle longer time working without repairing. Hight quality side wall, make sure the stable and safety of the loads.
▪Quality Axles suspensions and Brake system：BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safe and save tire cost.
▪To make sure the service life of the side wall semi trailers, all the spare parts we adopt are world famous brand.

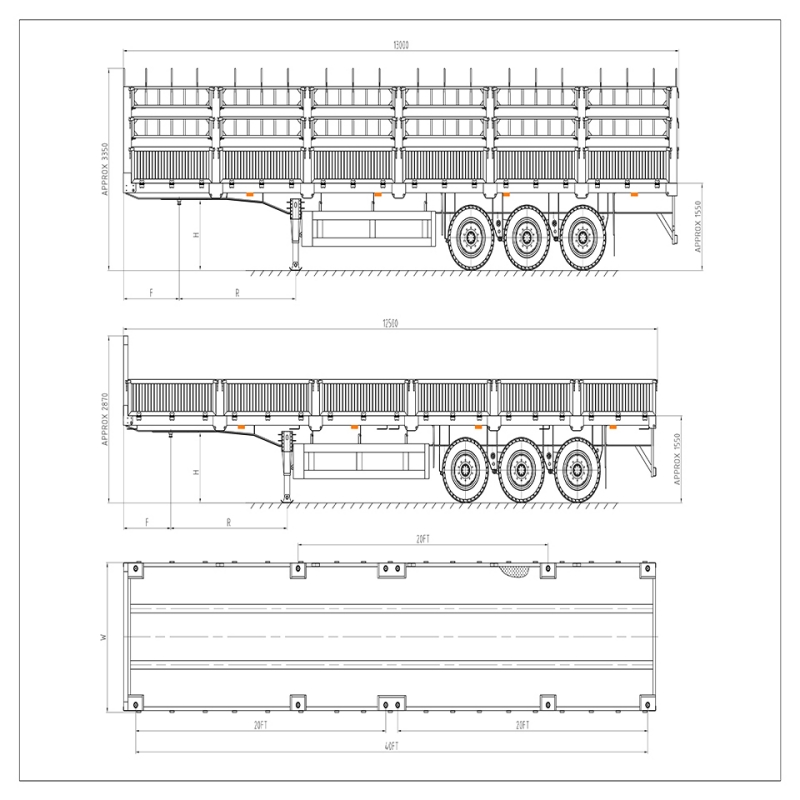

| Overall Dimension(L*W*H) | 12400*2500*1500 / 13000*2500*1700 |
| Tare Weight | 7500KG |
| Loading Weight | 65000KG |
| Axle | 13T 3/4 pcs, BPW or FUWA or Yonglitai or Huajin Brand |
| Leaf Spring | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| Main Beam | Material is Q 345 Carbon SteelBeam is 500 mmUpper plate 14 mm,Bottom plate is 16 mm, Middle plate is 6/8 mm, |
| Side Beam | 14#/16# channel steel (Q235) |
| Cross member | 8#/10# channel steel (Q235) |
| Platform plate | 3mm checker Plate or flatbed |
| Side wall | Height 600mm / 800mm |
| Container Twist Locks | 8 pcs or 12pcs |
| Tyres | 12R22.5-18 12units |
| Landing Gear | Standard 28Ton, JOST brand or FUWA brand or other china brand. |
| Electrical system | 1. Voltage: 24V， LED lights 2. Tail lamp with turn signal, brake light & reflector, side lamp etc. 3.Receotacle: 7 ways (7 wire harness) |
| Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 40L air tanks |

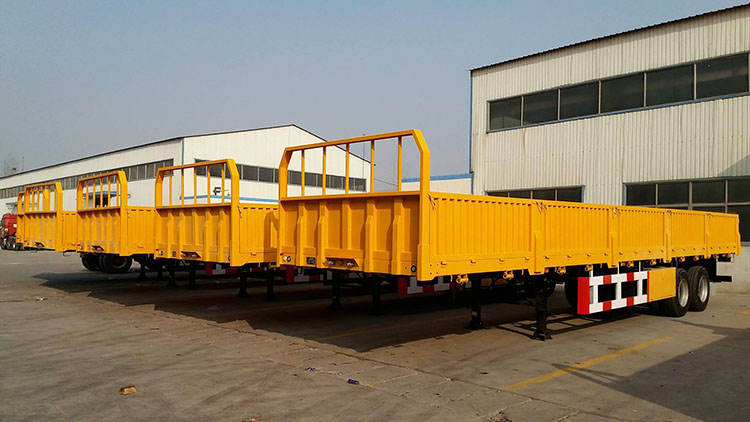

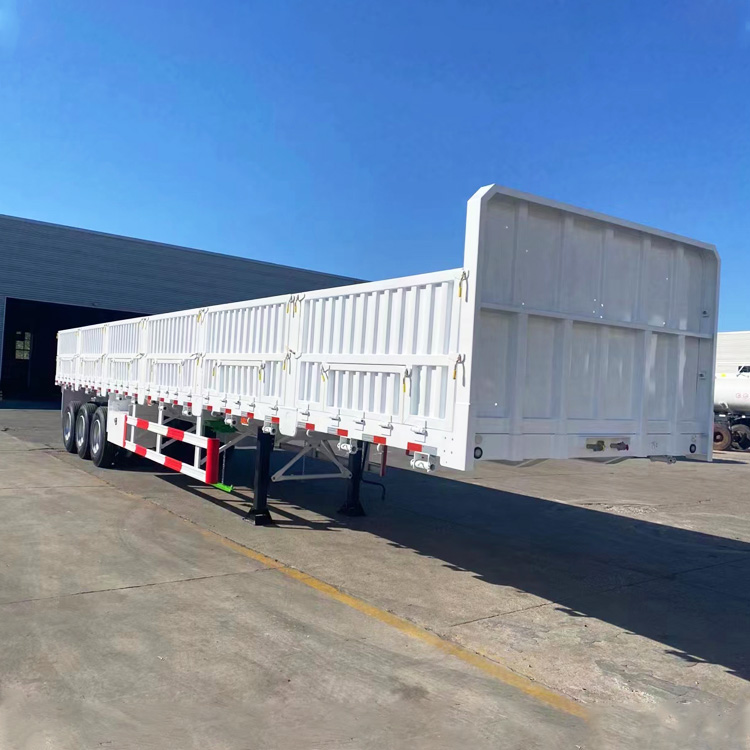

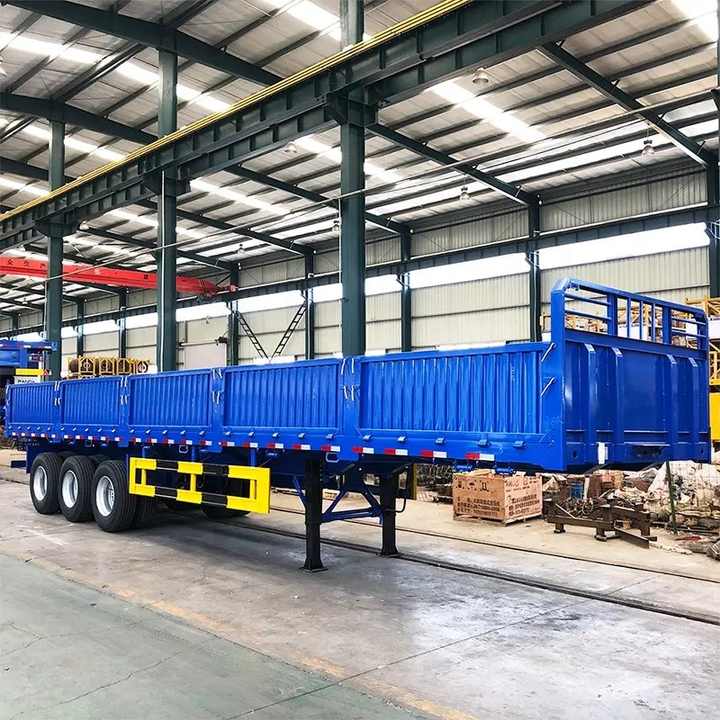

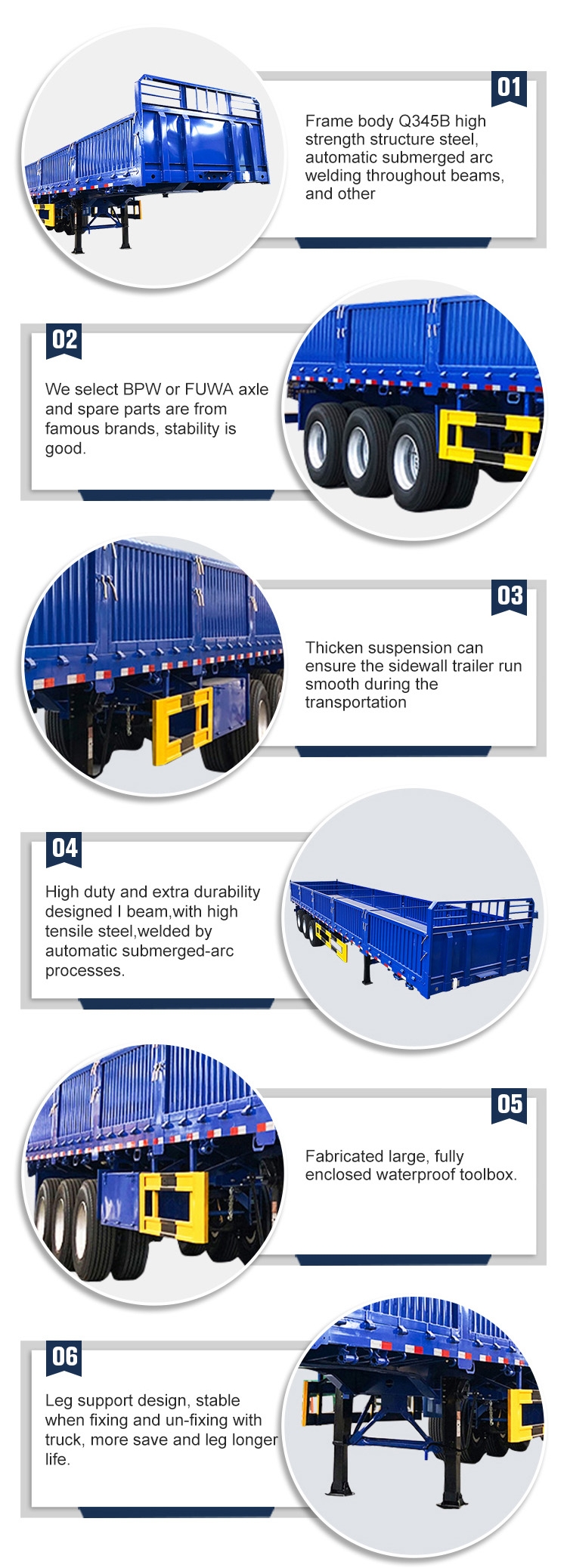

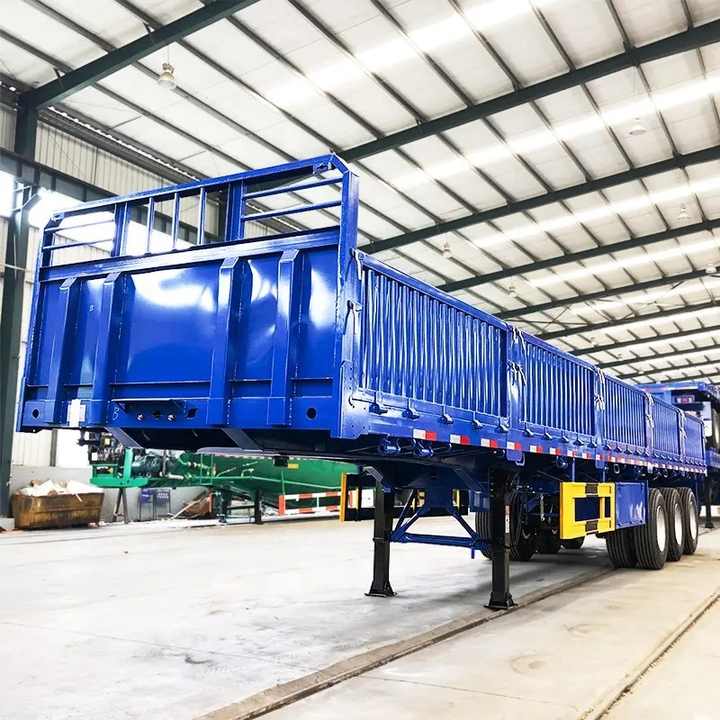

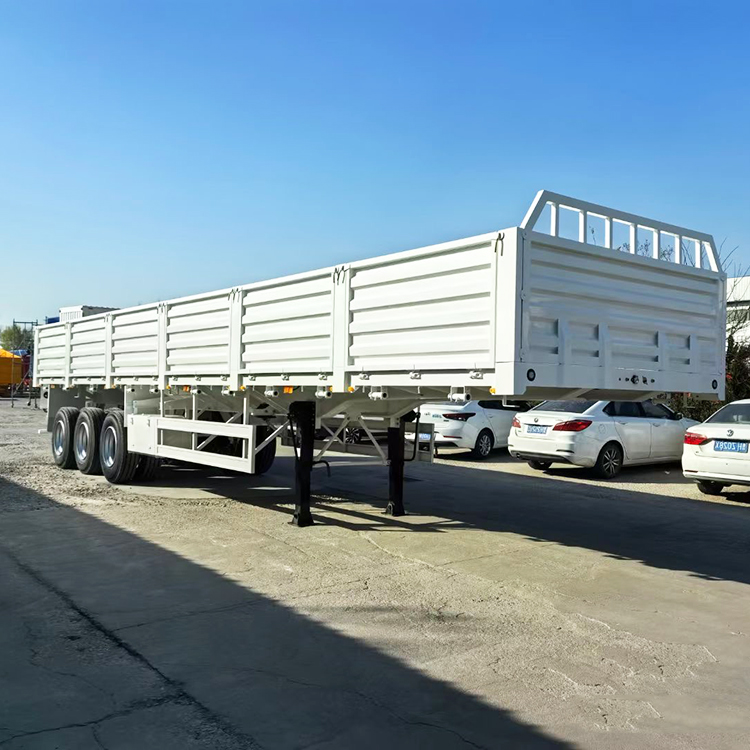

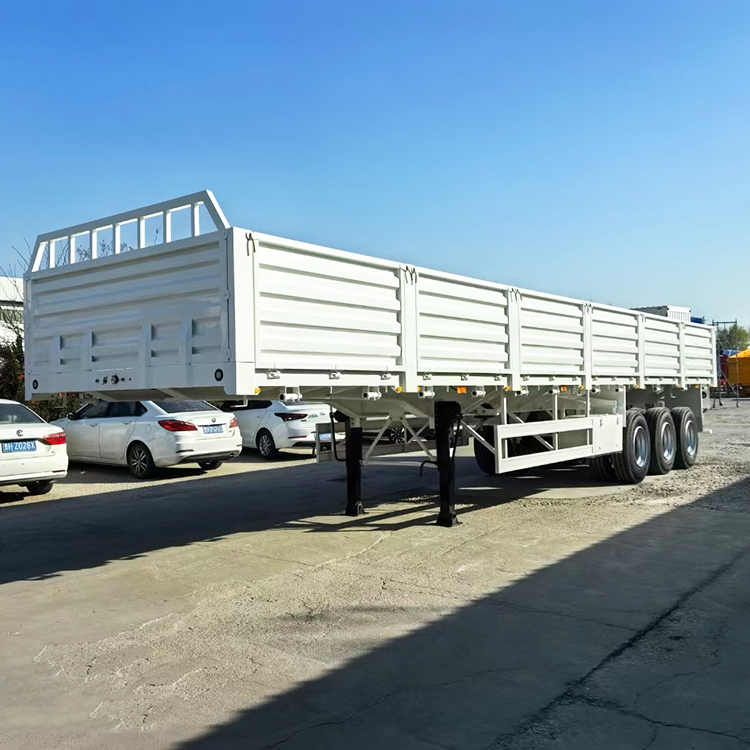

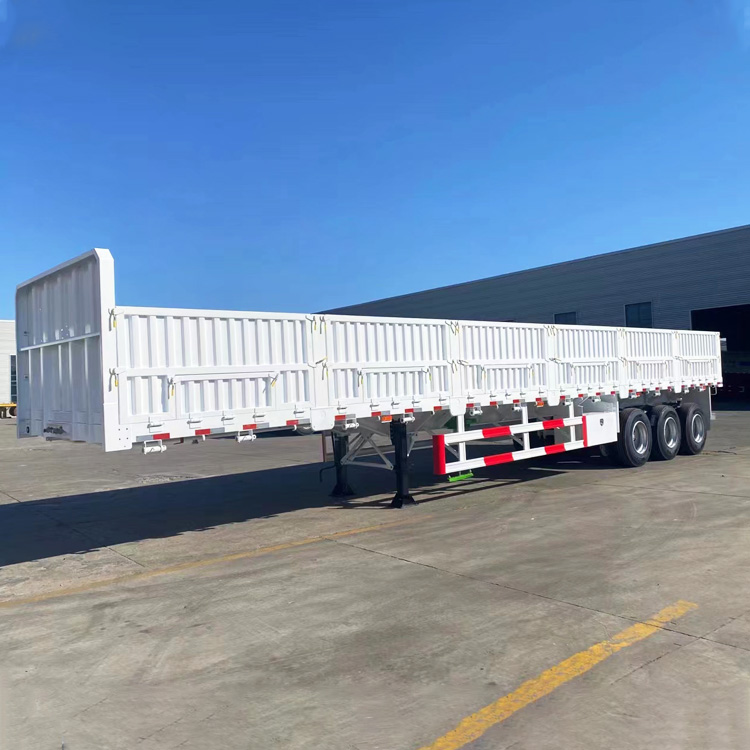

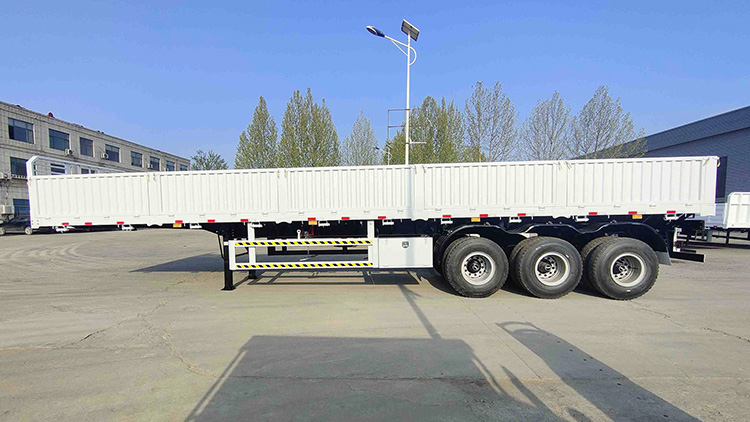

Detail Display
